NSN 4940-00-333-5541 AA55543, A-A-55543, A-A-55543 TY 2 CL 1 ST A
Product Details | AIR BLOW GUN
4940-00-333-5541 A mechanical device designed for attachment to the discharge end of a compressed air line, for blowing dirt or other foreign substance from motors, machinery, and the like.
Part Alternates: AA55543, A-A-55543, A-A-55543 TY 2 CL 1 ST A, A-A-55543 TY P CL 1 T1 ST A, AA55543TY2CL1STA, AA55543TYPCL1T1STA, DGA520, DGC-502 9.5 CFM, DGC50295CFM, GGGG770, 4940-00-333-5541, 00-333-5541, 4940003335541, 003335541
Maintenance and Repair Shop Equipment | Miscellaneous Maintenance and Repair Shop Specialized Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 49 | 14 DEC 1973 | 00-333-5541 | 05657 ( GUN, AIR BLOW ) |

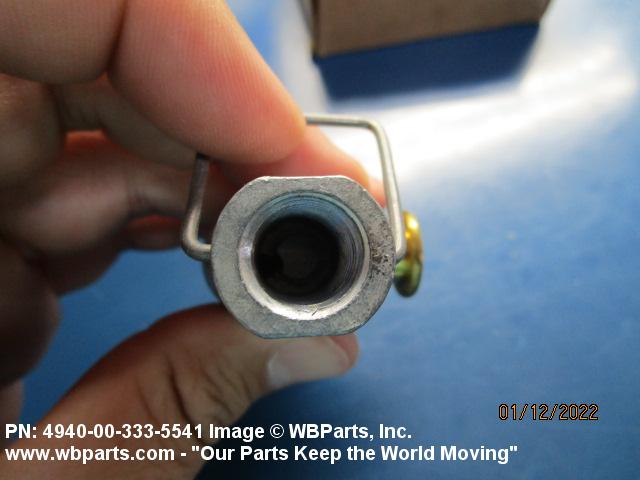

Drawings & Photos | NSN 4940-00-333-5541
Demand History | NSN 4940-00-333-5541
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4940-00-333-5541 | 2023-08-213 | 1307 | DIBBS |
| 4940-00-333-5541 | 2021-12-356 | 2 | United States |
| 4940-00-333-5541 | 2021-11-322 | 2 | US |
| 4940-00-333-5541 | 2020-08-232 | 2 | IT |
| 4940-00-333-5541 | 2019-01-04 | 1 | DIBBS-RFPs |
| 4940-00-333-5541 | 2018-06-173 | 1 | United States |
| 4940-00-333-5541 | 2017-02-46 | 1000 | DIBBS |
| 4940-00-333-5541 | 2016-10-291 | 1213 | DIBBS |
| 4940-00-333-5541 | 2016-07-193 | 1 | DIBBS |
| 4940-00-333-5541 | 2015-10-293 | 834 | DIBBS |
| 4940-00-333-5541 | 2014-07-196 | 831 | DIBBS |
| 4940-00-333-5541 | 2014-02-49 | 532 | DIBBS |
| 4940-00-333-5541 | 2013-07-197 | 24 | Canada |
| 4940-00-333-5541 | 2012-10-303 | 1 | United States |
| 4940-00-333-5541 | 2012-10-299 | 820 | DIBBS |
| 4940-00-333-5541 | 2012-05-150 | 1012 | DIBBS |
| 4940-00-333-5541 | 2012-03-75 | 332 | DIBBS |
| 4940-00-333-5541 | 2012-02-34 | 562 | DIBBS |
| 4940-00-333-5541 | 2011-02-59 | 869 | DIBBS |
| 4940-00-333-5541 | 2009-10-303 | 1336 | DIBBS |
| 4940-00-333-5541 | 2009-10-299 | 1336 | DIBBS |
| 4940-00-333-5541 | 2009-10-292 | 2753 | DIBBS |
Cross Reference | NSN 4940-00-333-5541
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A-A-55543 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| A-A-55543 TY 2 CL 1 ST A | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| A-A-55543 TY P CL 1 T1 ST A | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| DGA520 | 17431 | ILLINOIS TOOL WORKS INC. |
| DGC-502 9.5 CFM | 17431 | ILLINOIS TOOL WORKS INC. |
| GGGG770 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4940-00-333-5541
Related Products | NSN 4940-00-333-5541
Technical Data | NSN 4940-00-333-5541
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | STRAIGHT |
| OPERATION METHOD | BUTTON |
| HANG-UP HOOK | INCLUDED |
| AIR FLOW CAPACITY RATING | 9.5 CFM AT 100 PSI |
| TIP TYPE | REMOVABLE |
| COUPLING TYPE | THREADED INTERNAL |
| THREAD SIZE | 1/4-18 |
| SCREW THREAD SERIES DESIGNATOR | NPT |
| SPECIAL FEATURES | NOZZLE HAS 6 ATMOSPHERIC VENTS TO LIMIT OUTLET PRESSURE TO 30 PSI WITHAIR VALVE FULL OPEN IN ACCORDANCE WITH U.S. DEPARTMENT OF LABOROCCUPATIONAL SAFETY AND HEALTH ADMINISTRATION STANDARDS |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE AND 1 CLASS AND A STYLE |
| MANUFACTURERS CODE | 58536 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-55543 |
| MANUFACTURERS CODE | 58536 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-55543 TY 2 CL 1 ST A |
Restrictions/Controls & Freight Information | NSN 4940-00-333-5541
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4940-00-333-5541
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | L | Other Weapons Categories |
| Weapons Systems/End Item or Homogeneous Group | L5 | Other Managed Component of Tool Set |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | TG | TG:AF SICA RESIDUAL MMAC-WR-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 0 | Non-combat Essential End Item. End items that do not fit the definition of Code 1 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
