NSN 4930-01-467-8080 OR707, 01-467-8080, 014678080
Product Details | HAND OILER
4930-01-467-8080 An item consisting of a metal or plastic refillable container having an integral or detachable spout, and may be gravity fed, force fed from a compressible surface, or force fed by pressure created by an internal pump. It is primarily designed for applying lubricating oil to moving parts of machinery. Excludes GUN, FLUID, DIRECT DELIVERY.
Part Alternates: OR707, 4930-01-467-8080, 01-467-8080, 4930014678080, 014678080
Maintenance and Repair Shop Equipment | Lubrication and Fuel Dispensing Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 49 | 15 SEP 1999 | 01-467-8080 | 09181 ( OILER, HAND ) |
Drawings & Photos | NSN 4930-01-467-8080
Cross Reference | NSN 4930-01-467-8080
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| OR707 | 76377 | STANLEY BLACK & DECKER, INC. DBA MAC TOOLS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4930-01-467-8080
Technical Data | NSN 4930-01-467-8080
| Characteristic | Specifications |
|---|---|
| SPOUT STYLE DESIGNATOR | B21 |
| LENGTH | 8.000 INCHES NOMINAL |
| SPOUT TIP REMOVABILITY | REMOVABLE |
| CAPACITY | 12.000 OUNCES |
| FEED TYPE | PRESSURE CREATED BY INTERNAL PUMP |
| CHECK VALVE CONTROL LEVER | INCLUDED |

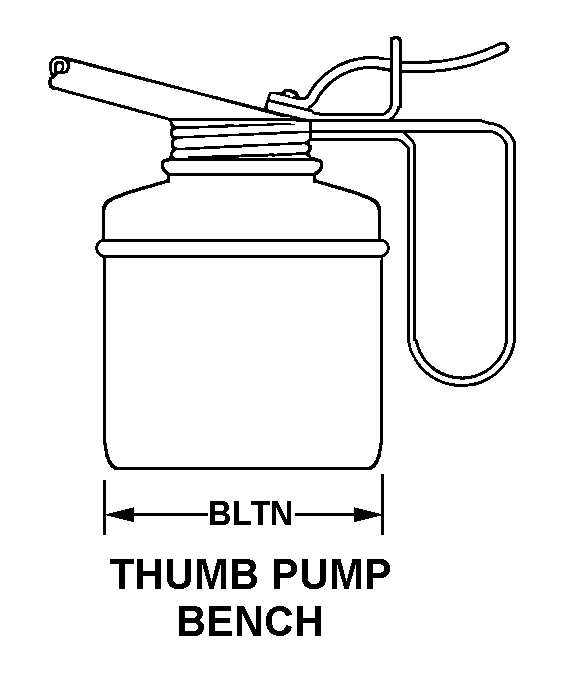

| BODY STYLE | A24 THUMB PUMP BENCH |
| SPECIAL FEATURES | DOUBLE SEAMED; REPLACEABLE/INTERCHANGEABLE SPOUT; SOLID STEEL PISTON; ZINC DIE CAST HI PRESSURE PUMP; COMES W/OR164 8.000 IN FLEX SPOUT |
Restrictions/Controls & Freight Information | NSN 4930-01-467-8080
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
