NSN 4930-00-985-2604 2550188 , 500MDC, 50512
Product Details | HAND OILER
4930-00-985-2604 An item consisting of a metal or plastic refillable container having an integral or detachable spout, and may be gravity fed, force fed from a compressible surface, or force fed by pressure created by an internal pump. It is primarily designed for applying lubricating oil to moving parts of machinery. Excludes GUN, FLUID, DIRECT DELIVERY.
Part Alternates: 2550188 , 500MDC, 50512, 50-512, 50564, 50-564, 4930-00-985-2604, 00-985-2604, 4930009852604, 009852604
Maintenance and Repair Shop Equipment | Lubrication and Fuel Dispensing Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 49 | 28 OCT 1966 | 00-985-2604 | 09181 ( OILER, HAND ) |
Drawings & Photos | NSN 4930-00-985-2604
Demand History | NSN 4930-00-985-2604
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| LX-1500 | 2019-07-202 | 465 | DIBBS |
| 4930-00-985-2604 | 2018-03-70 | 278 | DIBBS |
| 4930-00-985-2604 | 2016-10-279 | 166 | DIBBS |
| 4930-00-985-2604 | 2016-05-144 | 134 | DIBBS |
| 4930-00-985-2604 | 2016-05-132 | 134 | DIBBS |
| 4930-00-985-2604 | 2010-03-88 | 400 | DIBBS |
| 4930-00-985-2604 | 2010-01-25 | 322 | DIBBS |
| 4930-00-985-2604 | 2009-10-303 | 228 | DIBBS |
Cross Reference | NSN 4930-00-985-2604
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4930-00-985-2604
Related Products | NSN 4930-00-985-2604
Technical Data | NSN 4930-00-985-2604
| Characteristic | Specifications |
|---|---|
| LENGTH | 6.000 INCHES NOMINAL |
| SPOUT MATERIAL | STEEL |
| SPOUT SURFACE TREATMENT | NICKEL PLATED |
| SPOUT BOTTOM END THREAD PROVISION | THREADED |
| SCREW THREAD LOCATION | INTERNAL |
| SPOUT CLOSURE CAP | INCLUDED |
| CAP ATTACHMENT FEATURE | INCLUDED |
| SPOUT TIP REMOVABILITY | REMOVABLE |
| CAPACITY | 6.000 OUNCES |
| FEED TYPE | PRESSURE CREATED BY INTERNAL PUMP |
| CHECK VALVE CONTROL LEVER | INCLUDED |
| BODY MATERIAL | STEEL |
| BODY SURFACE TREATMENT | NICKEL PLATED |

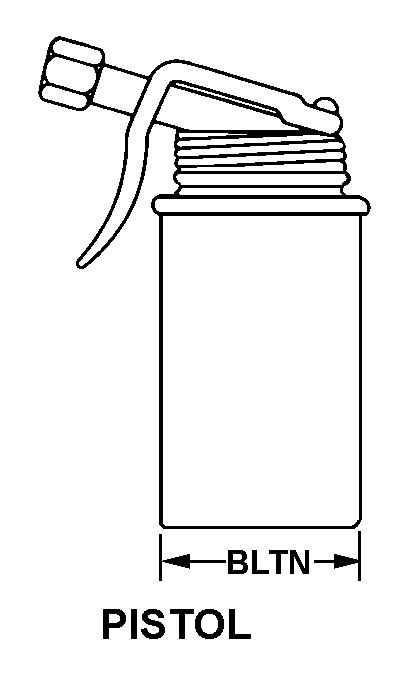

| BODY STYLE | A26 PISTOL |
| BOTTOM DIAMETER | 1.125 INCHES NOMINAL |
| HOLDER BRACKET | NOT INCLUDED |
| MANUFACTURERS CODE | 06307 |
| DESIGN CONTROL REFERENCE | 500MDC |
Restrictions/Controls & Freight Information | NSN 4930-00-985-2604
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | J | PILFERAGE - PILFERAGE CONTROLS MAY BE DESIGNATED BY THE CODING ACTIVITY TO ITEMS CODED U (UNCLASSIFIED) BY RECORDING THE ITEM TO J./  |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186710 | TOOLS:TORCHES HAND O/T BLOW |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4930-00-985-2604
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BQ | T63-A-700 and T63-A-720 |
| Accounting Requirements Code | D | Durable item. An item of Army property coded with an ARC of "D" in the AMDF. Durable items do not require property book accountability after issue from the stock record account, but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded ?D?in the AMDF are considered durable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
