NSN 4930-00-432-9211 LX-1161 AND LX-1425H , LX1161ANDLX1425H, 6060H
Product Details | PNEUMATIC GREASE GUN
4930-00-432-9211 An item having an air cylinder for developing high grease pressure for lubrication of bearing surfaces through pressure gun fittings. Air is supplied from a separate source. The item has a tube for grease stick application for a cylindrical body in which grease is stored. It may include the necessary hose or tube extensions, fittings and spare grease cylinders.
Part Alternates: LX-1161 AND LX-1425H , LX1161ANDLX1425H, 6060H, 610183-1 AND 622201-25, 6101831AND62220125, 1160 AND 72300, 1160AND72300, 1161 AND 72300, 1161AND72300, 193-5530 AND 6184, 1935530AND6184, 30112 AND 6184, 30112AND6184, 4930-00-432-9211, 00-432-9211, 4930004329211, 004329211
Maintenance and Repair Shop Equipment | Lubrication and Fuel Dispensing Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 49 | 01 JAN 1963 | 00-432-9211 | 09660 ( GREASE GUN, PNEUMATIC ) |
Drawings & Photos | NSN 4930-00-432-9211
Demand History | NSN 4930-00-432-9211
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| GV-1162 | 2024-11-317 | 66 | DIBBS |
| GV-1162 | 2024-10-304 | 66 | DIBBS |
| 1160 AND 72300 | 2024-09-249 | 62 | DIBBS |
| 610183-1 AND 622201-25 | 2024-09-249 | 62 | DIBBS |
| GV-1162 | 2024-09-249 | 62 | DIBBS |
| LX-1161 AND LX-1425H | 2024-09-249 | 62 | DIBBS |
| 1160 AND 72300 | 2024-05-122 | 63 | DIBBS |
| 610183-1 AND 622201-25 | 2024-05-122 | 63 | DIBBS |
| LX-1161 AND LX-1425H | 2024-05-122 | 63 | DIBBS |
| 1160 AND 72300 | 2023-05-137 | 78 | DIBBS |
| 610183-1 AND 622201-25 | 2023-05-137 | 78 | DIBBS |
| LX-1161 AND LX-1425H | 2023-05-137 | 78 | DIBBS |
| 1160 AND 72300 | 2022-03-82 | 192 | DIBBS |
| 610183-1 AND 622201-25 | 2022-03-82 | 192 | DIBBS |
| LX-1161 AND LX-1425H | 2022-03-82 | 192 | DIBBS |
| 1160 AND 72300 | 2020-10-280 | 180 | DIBBS |
| 610183-1 AND 622201-25 | 2020-10-280 | 180 | DIBBS |
| LX-1161 AND LX-1425H | 2020-10-280 | 180 | DIBBS |
| 4930-00-432-9211 | 2018-09-247 | 160 | DIBBS |
| 4930-00-432-9211 | 2018-08-233 | 160 | DIBBS |
| 4930-00-432-9211 | 2018-05-136 | 1 | DIBBS |
| 4930-00-432-9211 | 2017-03-89 | 160 | DIBBS |
| 4930-00-432-9211 | 2016-07-186 | 160 | DIBBS |
| 4930-00-432-9211 | 2016-02-38 | 1 | DIBBS |
| 4930-00-432-9211 | 2015-07-187 | 145 | DIBBS |
| 4930-00-432-9211 | 2015-06-175 | 145 | DIBBS |
| 4930-00-432-9211 | 2015-04-100 | 184 | DIBBS |
| 4930-00-432-9211 | 2015-03-88 | 184 | DIBBS |
| 4930-00-432-9211 | 2013-05-122 | 69 | DIBBS |
| 4930-00-432-9211 | 2010-03-74 | 100 | DIBBS |
| 4930-00-432-9211 | 2009-10-292 | 196 | DIBBS |
| 4930-00-432-9211 | 2009-10-281 | 154 | DIBBS |
| 4930-00-432-9211 | 2008-08-240 | 150 | DIBBS |
Cross Reference | NSN 4930-00-432-9211
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1160 AND 72300 | 36251 | MCNEIL OHIO CORP |
| 1161 AND 72300 | 36251 | MCNEIL OHIO CORP |
| 193-5530 AND 6184 | 06307 | KP INDUSTRIES DIV OF THE DYSON-KISSNER-MORAN CORP |
| 30112 AND 6184 | 77335 | PLEWS, INC. DBA PLEWS EDELMANN |
| 6060H | 70270 | STEWART-WARNER ALEMITE SALES CO INC |
| 610183-1 AND 622201-25 | 03990 | INGERSOLL-RAND CO |
| 610183-1 AND 622201-25 | 4P412 | INGERSOLL-RAND COMPANY DBA INGERSOLL-RAND |
| LX-1161 AND LX-1425H | 59754 | WORLDWIDE WELDING INCORPORATED DIV LUMAX LUBRICATION EQUIPMENT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4930-00-432-9211
Related Products | NSN 4930-00-432-9211
Technical Data | NSN 4930-00-432-9211
| Characteristic | Specifications |
|---|---|
| LUBRICANT CAPACITY | 1 LB |
| OPERATING AIR PRESSURE RANGE | 80.0 TO 125.0 POUNDS PER SQUARE INCH GAGE |
| DEVELOPED GREASE PRESSURE TO APPLIED AIR PRESSURE RATIO | 40.0 TIMES |

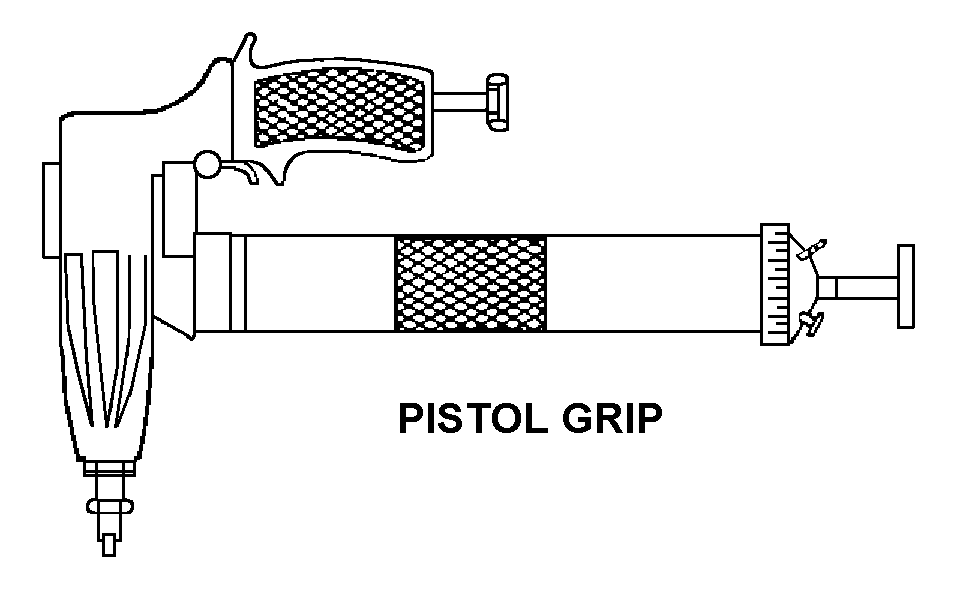

| STYLE DESIGNATOR | D2 PISTOL GRIP |
| PERFORMANCE TYPE | ONE SHOT |
| AIR HOSE CONNECTION THREAD SIZE | 0.250-18 |
| AIR HOSE CONNECTION THREAD SERIES | NPT |
| AIR HOSE CONNECTION THREAD LOCATION | INTERNAL |
| EXTENSION CONNECTION THREAD SIZE | 0.875-9 |
| EXTENSION CONNECTION THREAD SERIES | NPT |
| EXTENSION CONNECTION THREAD LOCATION | EXTERNAL |
| EXTENSION TYPE | HOSE |
| FURNISHED ITEMS AND QUANTITY | ADAPTER,HYDRAULIC TO HYDRAULIC 90 DEG ANGLE 1,ADAPTER,HYDRAULIC TO PIN TYPE 1,ADAPTER,HYDRAULIC TO PUSH TYPE 1,COUPLING HYDRAULIC 1,HOSE ASSEMBLY,WHIP,18 IN. 1,HOSE ASSEMBLY,25 FT 1 |
| ADDITIONAL GREASE CONTAINER QUANTITY | 2 |
Restrictions/Controls & Freight Information | NSN 4930-00-432-9211
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 184730 | TOOLS:GREASE/OIL GUNS PWR |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | F | Fuels and lubricants, including gases, fuels and lubricating supplies and equipment and gases other than noxious gases. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4930-00-432-9211
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | TG | TG:AF SICA RESIDUAL MMAC-WR-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
