NSN 4930-00-293-4419 00-293-4419, 002934419
Product Details | HAND OILER
4930-00-293-4419 An item consisting of a metal or plastic refillable container having an integral or detachable spout, and may be gravity fed, force fed from a compressible surface, or force fed by pressure created by an internal pump. It is primarily designed for applying lubricating oil to moving parts of machinery. Excludes GUN, FLUID, DIRECT DELIVERY.
Part Alternates: 4930-00-293-4419, 00-293-4419, 4930002934419, 002934419
Maintenance and Repair Shop Equipment | Lubrication and Fuel Dispensing Equipment
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
49 | 01 JAN 1963 | 00-293-4419 | 09181 ( OILER, HAND ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 4930-00-293-4419
Related Products | NSN 4930-00-293-4419
Technical Data | NSN 4930-00-293-4419
Characteristic | Specifications |
---|---|
SPOUT STYLE DESIGNATOR | B26 |
LENGTH | 1.000 INCHES NOMINAL |
SPOUT MATERIAL | STEEL |
SPOUT SURFACE TREATMENT | NICKEL PLATED |
SPOUT BOTTOM END THREAD PROVISION | THREADED |
SCREW THREAD LOCATION | EXTERNAL |
SCREW THREAD DIAMETER | 0.375 INCHES NOMINAL |
SPOUT CLOSURE CAP | INCLUDED |
CAP ATTACHMENT FEATURE | NOT INCLUDED |
SPOUT TIP REMOVABILITY | NONREMOVABLE |
CAPACITY | 0.500 OUNCES |
FEED TYPE | COMPRESSIBLE SURFACE |
CHECK VALVE CONTROL LEVER | NOT INCLUDED |
BODY MATERIAL | STEEL |
BODY SURFACE TREATMENT | NICKEL PLATED |

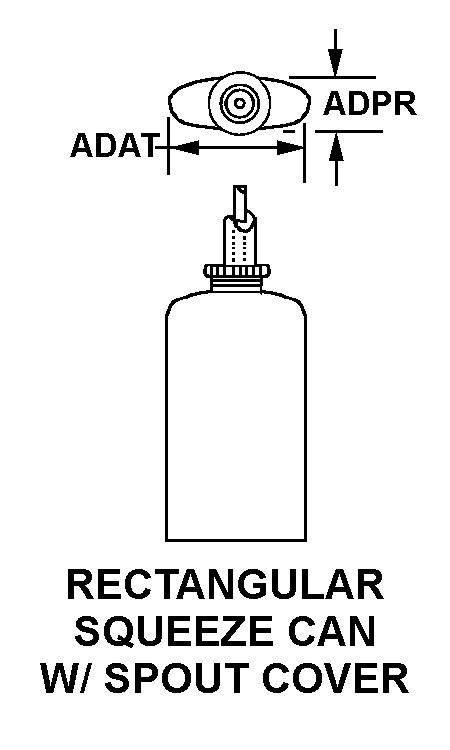

BODY STYLE | A14 RECTANGULAR SQUEEZE CAN W/SPOUT COVER |
BODY WIDTH | 1.062 INCHES NOMINAL |
BODY THICKNESS | 0.625 INCHES NOMINAL |
HOLDER BRACKET | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 4930-00-293-4419
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Precious Metals Indicator Code: | U | Precious metal type is unknown |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 185320 | TOOLS:OILERS HAND IN BBLS/BXS |
Less than car load rating | ||
Less than truck load rating | J | 100.2 |
Water commodity Code | 732 | unknown |
Originating Activity Code | XX | |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
