Product Details | HAND OILER

4930-00-273-3640 An item consisting of a metal or plastic refillable container having an integral or detachable spout, and may be gravity fed, force fed from a compressible surface, or force fed by pressure created by an internal pump. It is primarily designed for applying lubricating oil to moving parts of machinery. Excludes GUN, FLUID, DIRECT DELIVERY.

Part Alternates: GGGO591, GGG-O-591, 50202, 4930-00-273-3640, 00-273-3640, 4930002733640, 002733640

Maintenance and Repair Shop Equipment | Lubrication and Fuel Dispensing Equipment

Supply Group (FSG) NSN Assign. NIIN
49 01 JAN 1963 00-273-3640

Drawings & Photos | NSN 4930-00-273-3640


Cross Reference | NSN 4930-00-273-3640

Part Number Cage Code Manufacturer
50202 77335 PLEWS, INC. DBA PLEWS EDELMANN
GGG-O-591 81348 FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4930-00-273-3640

Technical Data | NSN 4930-00-273-3640

Characteristic Specifications
LENGTH 5.000 INCHES NOMINAL
SPOUT MATERIAL STEEL
SPOUT SURFACE TREATMENT ANY ACCEPTABLE
SPOUT BOTTOM END THREAD PROVISION THREADED
SCREW THREAD LOCATION EXTERNAL
SPOUT CLOSURE CAP INCLUDED
CAP ATTACHMENT FEATURE NOT INCLUDED
SPOUT TIP REMOVABILITY NONREMOVABLE
CAPACITY 12.000 OUNCES
FEED TYPE COMPRESSIBLE SURFACE
CHECK VALVE CONTROL LEVER NOT INCLUDED
BODY MATERIAL STEEL
BODY SURFACE TREATMENT ANY ACCEPTABLE

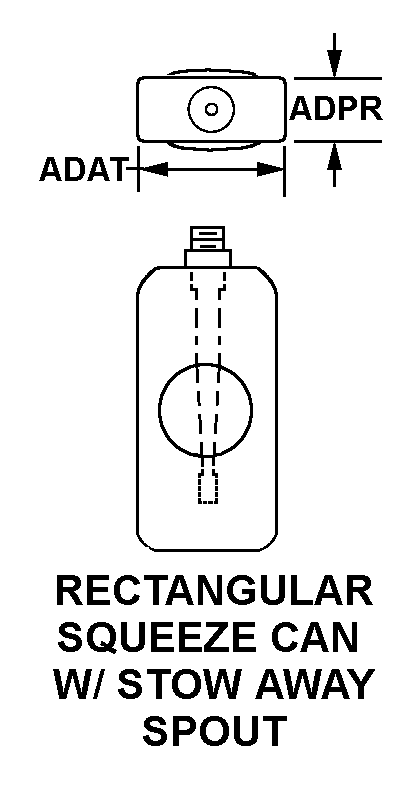

BODY STYLE A13 RECTANGULAR SQUEEZE CAN W/STOW AWAY SPOUT
BODY WIDTH 3.000 INCHES NOMINAL
BODY THICKNESS 1.250 INCHES NOMINAL
HOLDER BRACKET NOT INCLUDED
NONDEFINITIVE SPEC/STD DATA IV TYPE
MANUFACTURERS CODE 81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE GGG-O-591

Restrictions/Controls & Freight Information | NSN 4930-00-273-3640

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 185320 TOOLS:OILERS HAND IN BBLS/BXS
Less than car load rating
Less than truck load rating J 100.2
Water commodity Code 732 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity F Fuels and lubricants, including gases, fuels and lubricating supplies and equipment and gases other than noxious gases.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 4930-00-273-3640

Category Code Description
Stores Account Code1Marine Corps Stock Fund Account Item.
Combat Essentiality Code1Combat Essential End Item. End item equipments whose availability in a combat ready condition is essential for execution of the combat and training missions of the command.
Materiel Management CodeCConstruction MaterielDefense Supply Center Columbus (DSCC)
Echelon Management Code2ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of SupplyS9CDefense Supply Center Columbus
Columbus, OH 43215
AgencyDMU.S. Marine Corps
Service OrganizationMU.S. Marine Corps
ReparabilityZNonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice CodesVTERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
