Product Details | HAND OILER

4930-00-264-8711 An item consisting of a metal or plastic refillable container having an integral or detachable spout, and may be gravity fed, force fed from a compressible surface, or force fed by pressure created by an internal pump. It is primarily designed for applying lubricating oil to moving parts of machinery. Excludes GUN, FLUID, DIRECT DELIVERY.

Part Alternates: 176, 2703340, 4930-00-264-8711, 00-264-8711, 4930002648711, 002648711

Maintenance and Repair Shop Equipment | Lubrication and Fuel Dispensing Equipment

Supply Group (FSG) NSN Assign. NIIN
49 00-264-8711

Drawings & Photos | NSN 4930-00-264-8711


Demand History | NSN 4930-00-264-8711

Part Number Request Date QTY Origin
176 2016-08-216 2 BE

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4930-00-264-8711

Technical Data | NSN 4930-00-264-8711

Characteristic Specifications
LENGTH 5.500 INCHES NOMINAL
SPOUT MATERIAL PLASTIC
SPOUT BOTTOM END THREAD PROVISION THREADED
SCREW THREAD LOCATION INTERNAL
SCREW THREAD DIAMETER 0.812 INCHES NOMINAL
SPOUT CLOSURE CAP INCLUDED
CAP ATTACHMENT FEATURE INCLUDED
SPOUT TIP REMOVABILITY NONREMOVABLE
CAPACITY 2.250 OUNCES
FEED TYPE COMPRESSIBLE SURFACE
CHECK VALVE CONTROL LEVER NOT INCLUDED
BODY MATERIAL PLASTIC

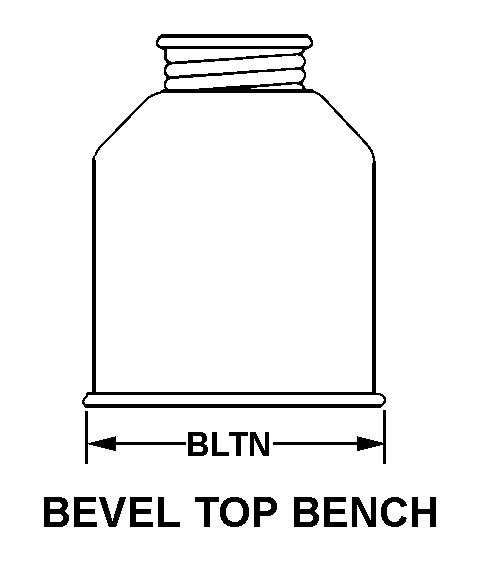

BODY STYLE A19 BEVEL TOP BENCH
BOTTOM DIAMETER 1.375 INCHES NOMINAL
HOLDER BRACKET NOT INCLUDED

Restrictions/Controls & Freight Information | NSN 4930-00-264-8711

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Category Code Description
No Freight Information
