NSN 4930-00-255-8285 MS157612, MS15761-2, GGG000591TYPE3
Product Details | HAND OILER
4930-00-255-8285 An item consisting of a metal or plastic refillable container having an integral or detachable spout, and may be gravity fed, force fed from a compressible surface, or force fed by pressure created by an internal pump. It is primarily designed for applying lubricating oil to moving parts of machinery. Excludes GUN, FLUID, DIRECT DELIVERY.
Part Alternates: MS157612, MS15761-2, GGG000591TYPE3, 4930-00-255-8285, 00-255-8285, 4930002558285, 002558285
Maintenance and Repair Shop Equipment | Lubrication and Fuel Dispensing Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 49 | 01 JAN 1963 | 00-255-8285 | 09181 ( OILER, HAND ) |
Drawings & Photos | NSN 4930-00-255-8285
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4930-00-255-8285
Technical Data | NSN 4930-00-255-8285
| Characteristic | Specifications |
|---|---|
| SPOUT STYLE DESIGNATOR | B9 |
| LENGTH | 5.500 INCHES MINIMUM AND 8.000 INCHES MAXIMUM |
| SPOUT MATERIAL | STEEL |
| SPOUT SURFACE TREATMENT | LACQUERED |
| SPOUT BOTTOM END THREAD PROVISION | UNTHREADED |
| SPOUT CLOSURE CAP | INCLUDED |
| CAP ATTACHMENT FEATURE | NOT INCLUDED |
| SPOUT TIP REMOVABILITY | NONREMOVABLE |
| CAPACITY | 56.000 OUNCES |
| FEED TYPE | GRAVITY |
| CHECK VALVE CONTROL LEVER | NOT INCLUDED |
| BODY MATERIAL | STEEL |
| BODY SURFACE TREATMENT | LACQUERED |

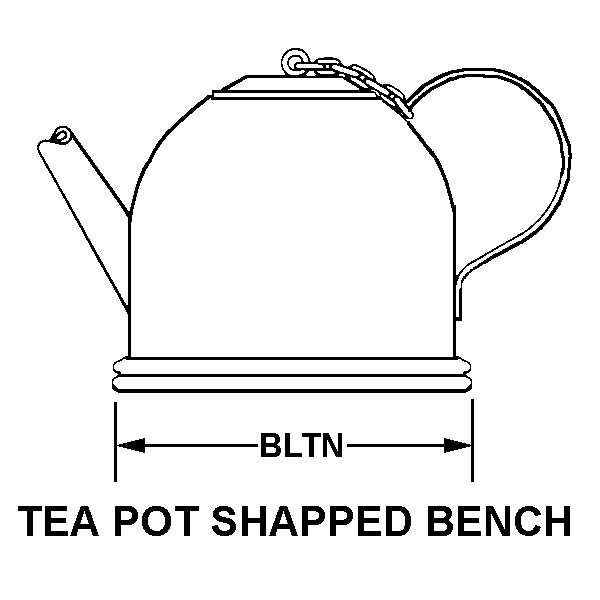

| BODY STYLE | A17 TEA POT SHAPED BENCH |
| BOTTOM DIAMETER | 6.000 INCHES MINIMUM AND 7.000 INCHES MAXIMUM |
| HOLDER BRACKET | NOT INCLUDED |
| NONDEFINITIVE SPEC/STD DATA | III TYPE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | GGG000591TYPE3 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS15761-2 |
Restrictions/Controls & Freight Information | NSN 4930-00-255-8285
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 185320 | TOOLS:OILERS HAND IN BBLS/BXS |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Y | Protected cargo, other than above, including sensitive cargo requiring hand-to-hand receipt and/or security precautions. |
| Special Handling Code | 5 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
