Product Details | HAND OILER

4930-00-204-2398 An item consisting of a metal or plastic refillable container having an integral or detachable spout, and may be gravity fed, force fed from a compressible surface, or force fed by pressure created by an internal pump. It is primarily designed for applying lubricating oil to moving parts of machinery. Excludes GUN, FLUID, DIRECT DELIVERY.

Part Alternates: GGGO591, GGG-O-591, GGG-O-591 TY1CLA, GGGO591TY1CLA, 4930-00-204-2398, 00-204-2398, 4930002042398, 002042398

Maintenance and Repair Shop Equipment | Lubrication and Fuel Dispensing Equipment

Supply Group (FSG) NSN Assign. NIIN
49 01 JAN 1963 00-204-2398

Drawings & Photos | NSN 4930-00-204-2398


Cross Reference | NSN 4930-00-204-2398

Part Number Cage Code Manufacturer
GGG-O-591 81348 FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
GGG-O-591 TY1CLA 80244 GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4930-00-204-2398

Technical Data | NSN 4930-00-204-2398

Characteristic Specifications
SPOUT STYLE DESIGNATOR B3
LENGTH 7.000 INCHES NOMINAL
SPOUT MATERIAL STEEL
SPOUT SURFACE TREATMENT ANY ACCEPTABLE
SPOUT BOTTOM END THREAD PROVISION THREADED
SCREW THREAD LOCATION EXTERNAL
SPOUT CLOSURE CAP NOT INCLUDED
SPOUT TIP REMOVABILITY NONREMOVABLE
CAPACITY 8.000 OUNCES
FEED TYPE COMPRESSIBLE SURFACE
CHECK VALVE CONTROL LEVER NOT INCLUDED
BODY MATERIAL STEEL
BODY SURFACE TREATMENT ANY ACCEPTABLE

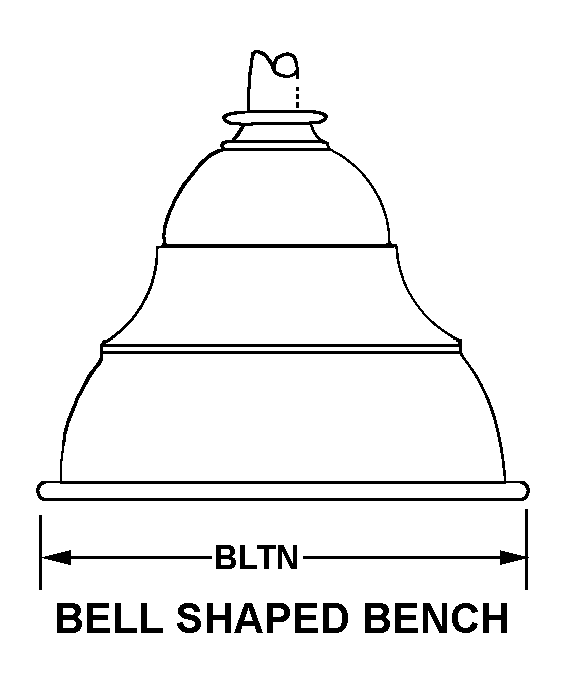

BODY STYLE A1 BELL SHAPED BENCH
BOTTOM DIAMETER 3.000 INCHES MINIMUM AND 4.000 INCHES MAXIMUM
HOLDER BRACKET NOT INCLUDED
NONDEFINITIVE SPEC/STD DATA 1 TYPE AND A CLASS
MANUFACTURERS CODE 81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE GGG-O-591

Restrictions/Controls & Freight Information | NSN 4930-00-204-2398

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information
