NSN 4930-00-072-9988 66, 00-072-9988, 000729988
Product Details | HAND OILER
4930-00-072-9988 An item consisting of a metal or plastic refillable container having an integral or detachable spout, and may be gravity fed, force fed from a compressible surface, or force fed by pressure created by an internal pump. It is primarily designed for applying lubricating oil to moving parts of machinery. Excludes GUN, FLUID, DIRECT DELIVERY.
Part Alternates: 66, 4930-00-072-9988, 00-072-9988, 4930000729988, 000729988
Maintenance and Repair Shop Equipment | Lubrication and Fuel Dispensing Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 49 | 01 JAN 1963 | 00-072-9988 | 09181 ( OILER, HAND ) |

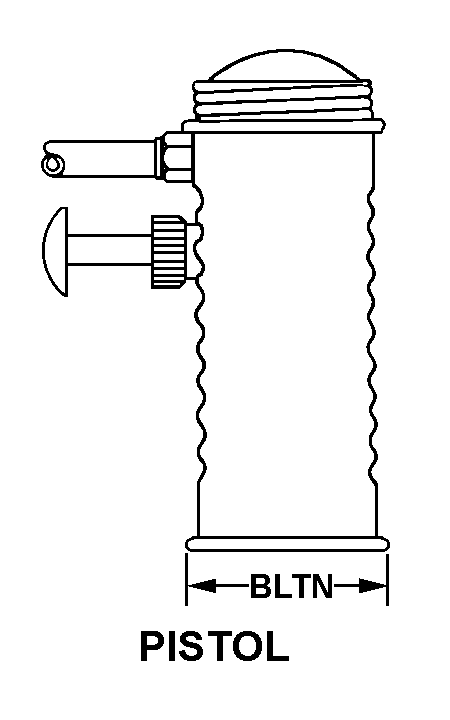

Drawings & Photos | NSN 4930-00-072-9988
Cross Reference | NSN 4930-00-072-9988
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 66 | 72798 | EAGLE MFG CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4930-00-072-9988
Technical Data | NSN 4930-00-072-9988
| Characteristic | Specifications |
|---|---|
| SPOUT STYLE DESIGNATOR | B13 |
| LENGTH | 4.500 INCHES NOMINAL |
| SPOUT MATERIAL | BRASS |
| SPOUT BOTTOM END THREAD PROVISION | THREADED |
| SCREW THREAD LOCATION | INTERNAL |
| SPOUT CLOSURE CAP | NOT INCLUDED |
| SPOUT TIP REMOVABILITY | REMOVABLE |
| CAPACITY | 6.000 OUNCES |
| FEED TYPE | FORCED AND PRESSURE CREATED BY INTERNAL PUMP |
| BODY MATERIAL | BRASS |
| BODY STYLE | A22 PISTOL |
| BOTTOM DIAMETER | 2.375 INCHES NOMINAL |
| HOLDER BRACKET | NOT INCLUDED |
Restrictions/Controls & Freight Information | NSN 4930-00-072-9988
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 185320 | TOOLS:OILERS HAND IN BBLS/BXS |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4930-00-072-9988
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
