NSN 4920-01-551-1073 AGE70083, 01-551-1073, 015511073
Product Details | AIRCRAFT ENGINE MAINTENANCE FIXTURE
4920-01-551-1073 A fixture designed to hold/position aircraft engine/engine components to facilitate inspection, maintenance, repair, testing and/or replacement of components.
Part Alternates: AGE70083, 4920-01-551-1073, 01-551-1073, 4920015511073, 015511073
Maintenance and Repair Shop Equipment | Aircraft Maintenance and Repair Shop Specialized Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 49 | 07 MAY 2007 | 01-551-1073 | 48925 ( FIXTURE, ENGINE MAINTENANCE, AIRCRAFT ) |

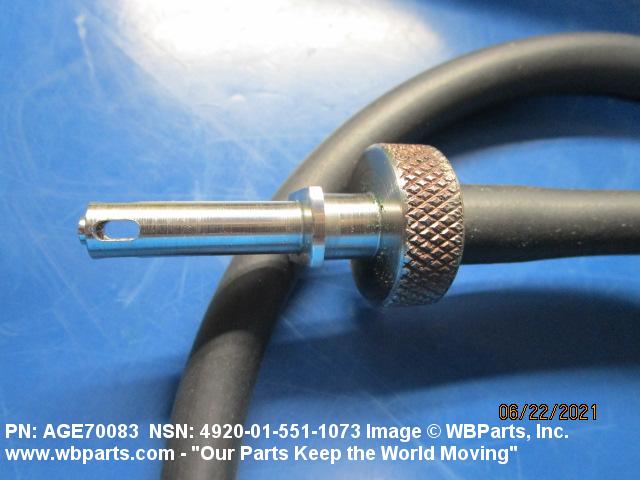

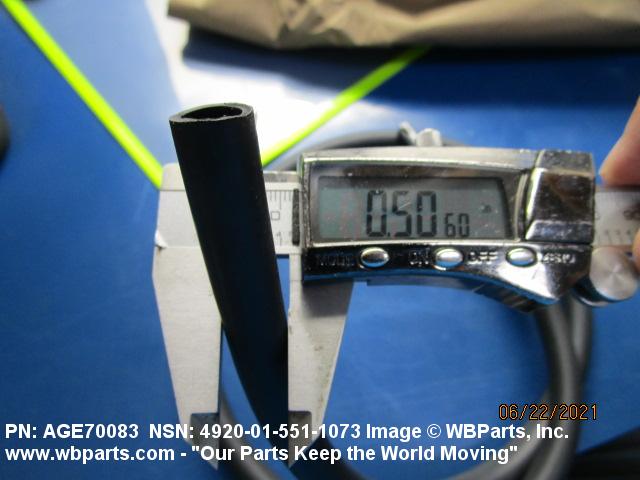

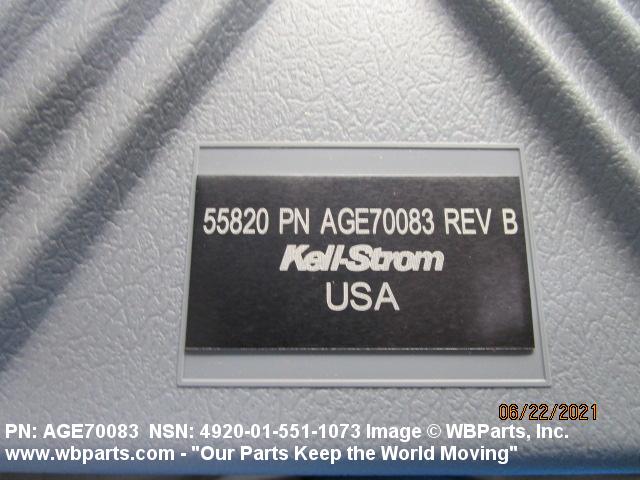

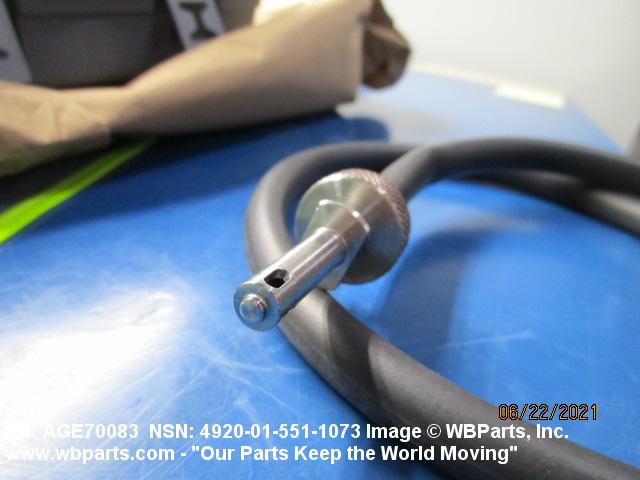

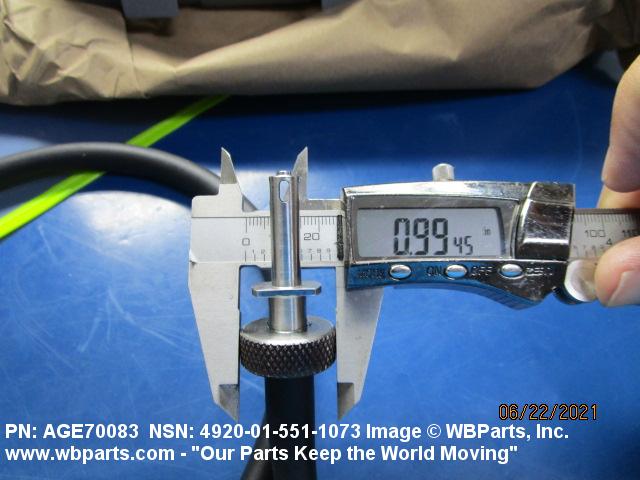

Drawings & Photos | NSN 4920-01-551-1073
Demand History | NSN 4920-01-551-1073
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4920-01-551-1073 | 2024-04-102 | 3 | CN |
| 4920-01-551-1073 | 2023-09-265 | 2 | us |
| AGE70083 | 2021-03-89 | 1 | United States |
| AGE70083 | 2021-03-84 | 1 | US |
| 4920-01-551-1073 | 2021-03-78 | 1 | US |
| AGE70083 | 2019-03-73 | 1 | India |
| AGE70083 | 2018-10-299 | 1 | US |
| 4920-01-551-1073 | 2014-07-195 | 1 | US |
Cross Reference | NSN 4920-01-551-1073
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AGE70083 | 55820 | HAMILTON SUNDSTRAND CORPORATION DBA HAMILTON SUNDSTRAND POWER SYTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4920-01-551-1073
Related Products | NSN 4920-01-551-1073
Technical Data | NSN 4920-01-551-1073
| Characteristic | Specifications |
|---|---|
| FUNCTIONAL DESCRIPTION | USED DURING DRAINING OIL FROM THE APS 3400 AUXILIARY POWER UNIT GEAR BOX, USED TO DIRECT THE FLOW ON DRAINING OIL; MADE OF 4340 STAINLESS STEEL |
| REFERENCE DATA AND LITERATURE | SERD NO. 03-01-0104 |
| SPECIAL FEATURES | CRITICAL USAGE TO CF-680C2L1F ENGINE; 38.5 IN. L; 1 IN. W; 2.5 LBS |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | TUBE, GEAR BOX, DRAIN |
| III END ITEM IDENTIFICATION | CF-680C2L1F ENGINE, C-5 ACFT |
| MANUFACTURERS CODE | 55820 |
| DESIGN CONTROL REFERENCE | AGE70083 |
Restrictions/Controls & Freight Information | NSN 4920-01-551-1073
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 147650 | OUTFITS MILITARY EQUIP FOR REPAIR |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | TK | HQ AFMC/GLSC 401 SCM/GUMB Wright-Patterson AFB, OH 45433-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4920-01-551-1073
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | E | The current standard price is an estimated price.
|
| Budget Code | Y | variousO & M:AF centrally procured equipment items. They are separate, primary end items (other than the weapon system itself) needed by a user to perform an assigned mission. They are nonexpendable items (ERRCD NF or ND) which are not consumed in use, and they do not lose their original identity during periods of use by incorporation into, or attachment to another assembly. |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
