NSN 4920-01-489-5461 CUTA2180203A, 01-489-5461, 014895461

4920-01-489-5461

Part Alternates: CUTA2180203A, 4920-01-489-5461, 01-489-5461, 4920014895461, 014895461

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
49	17 SEP 2001	01-489-5461	77777 ( )

Part Number	Request Date	QTY	Origin
4920-01-489-5461	2023-01-12	1	UK
CUTA2180203A	2018-08-20	1	US
CUTA2180203A	2017-10-09	1	United States
4920-01-489-5461	2013-01-03	50	NECO

Part Number	Cage Code	Manufacturer

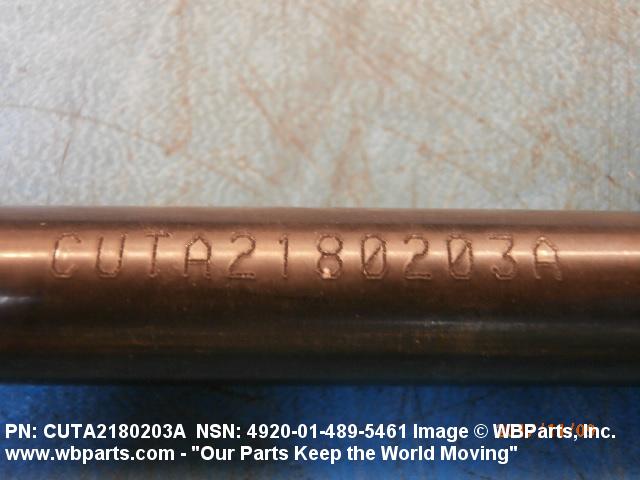

CUTA2180203A	92555	THE LEE COMPANY

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 4920-01-489-5461

Compare

4920-01-489-5817, 4920-01-490-0083, 4920-01-490-0084, 4920-01-490-0708, 4920-01-490-2941

Characteristic	Specifications

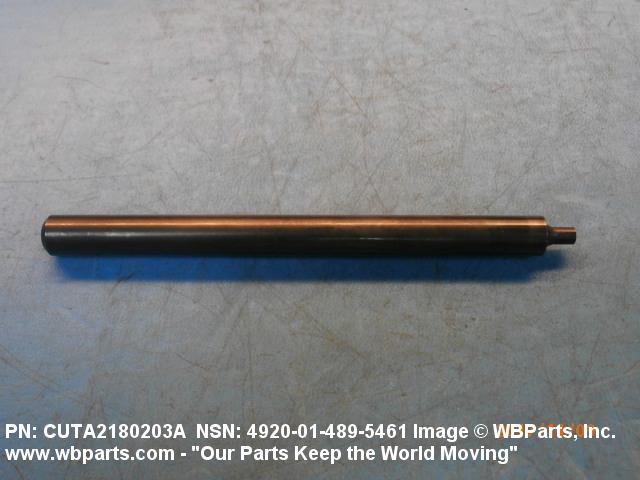

SPECIAL FEATURES	TOOL SET CONTAINS A BODY TOOL, PIN EXTRACTION TOOL, A PIN INSTALLATION TOOL, AND A STRIKER. THE THREE TOOLS ARE THREADED AT THE END TO ENGAGE INTERNAL THREADS OF THE PIN OR THE RESTRICTOR AS REQUIRED. THE STRIKER SLIDES ON THE SHAFT OF EITHER OF THE FIRST TWO TOOLS AND IS USED TO STRIKE THE HEAD, THUS DRIVING OUT THE RESTRIKER BODY. THE BODY TOOL IS ALSO USED TO PUSH THE RFI RESTRIKER INSERT FIRMLY INTO THE REAMED BORE OF THE MANIFOLD. THE PIN INSTALLATION TOOL IS THEN USED TO PRESS THE EXPANDER PIN INTO THE RESTRIKER BODY SO THAT THE EXTERNAL LANDS BITE INTO THE CAVITY WALL TO SEAL AND LOCK THE INSERT IN PLACE.
III END ITEM IDENTIFICATION	F/A-18
III PART NAME ASSIGNED BY CONTROLLING AGENCY	TOOL, INSTALLATION

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	B	Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
No Freight Information

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material ID	AH	(Non-JSL Items)HELICOPTERS(H1)
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
