NSN 4920-01-290-8654 16U14521807, 16U14521-807, 01-290-8654
Product Details | FLIGHT CONTROL SYSTEM TEST SET
4920-01-290-8654 A test set primarily designed for use in making examinations of a flight control system.
Part Alternates: 16U14521807, 16U14521-807, 4920-01-290-8654, 01-290-8654, 4920012908654, 012908654
Maintenance and Repair Shop Equipment | Aircraft Maintenance and Repair Shop Specialized Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 49 | 17 DEC 1988 | 01-290-8654 | 03639 ( TEST SET, FLIGHT CONTROL SYSTEM ) |

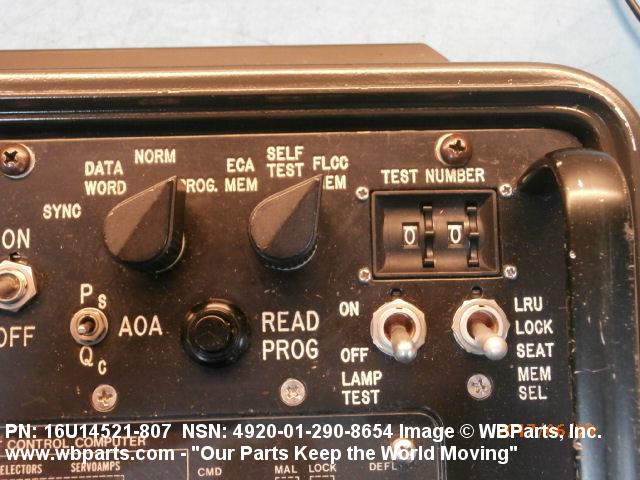

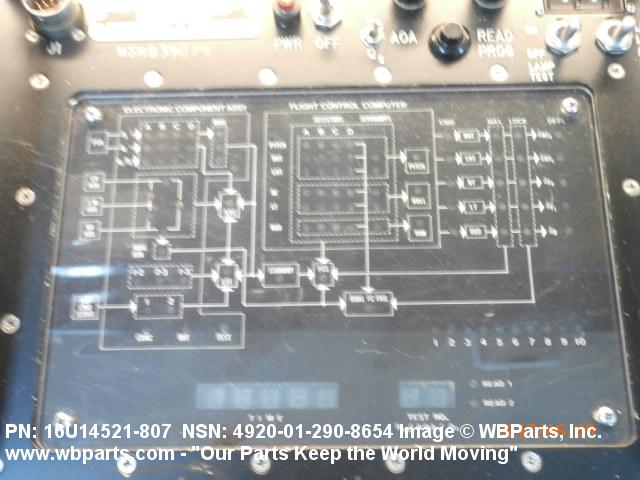

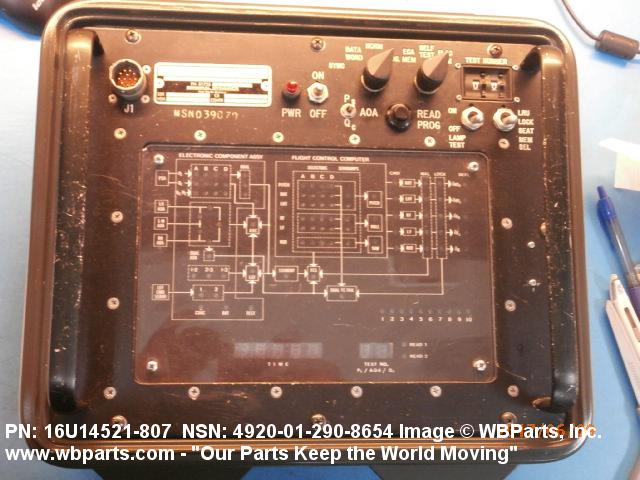

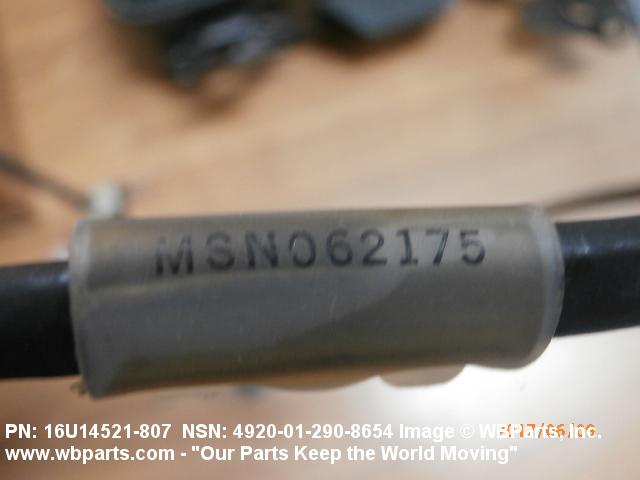

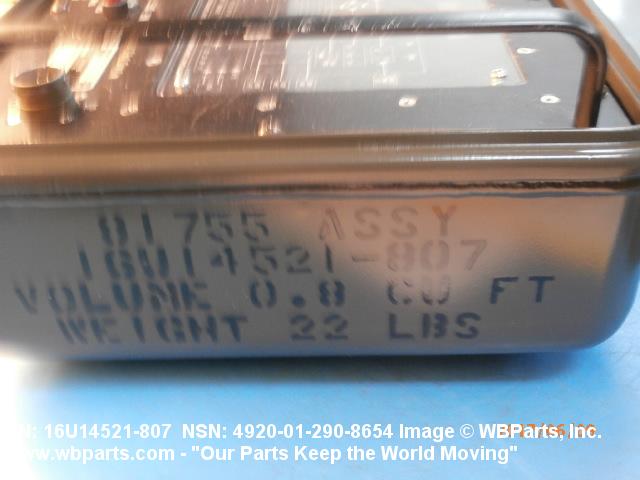

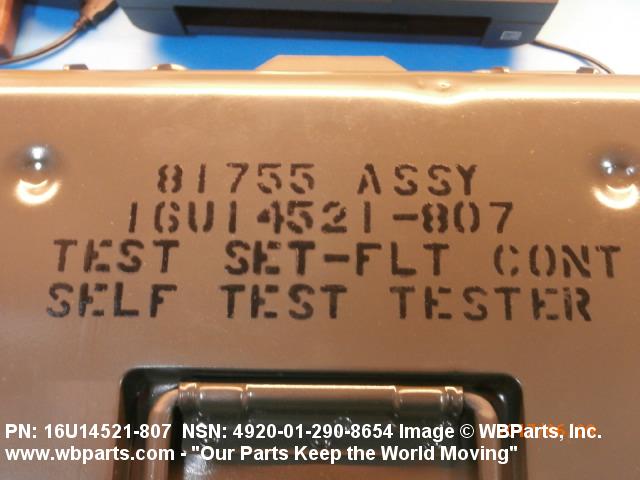

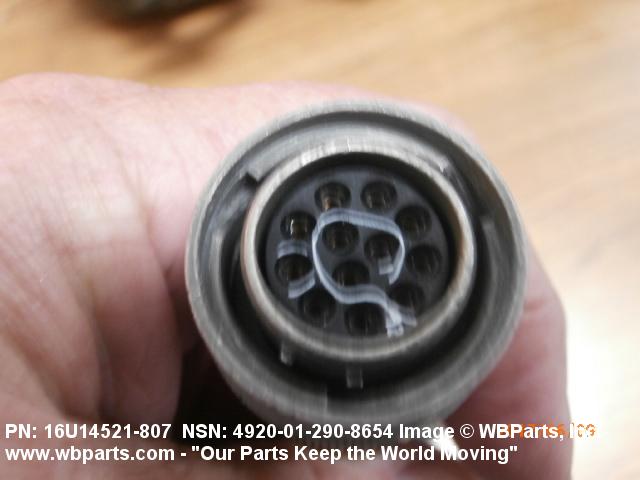

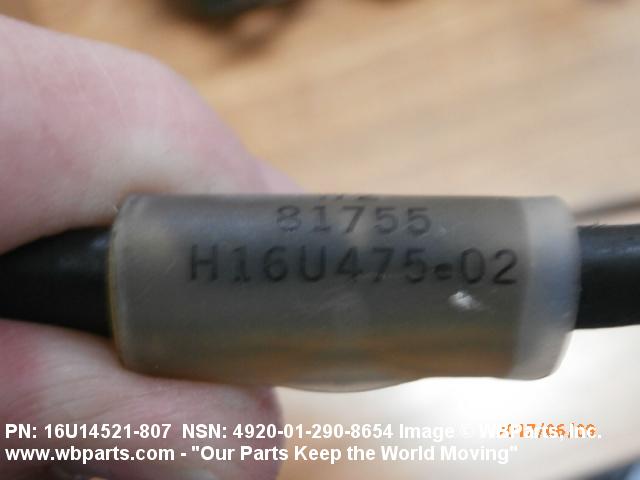

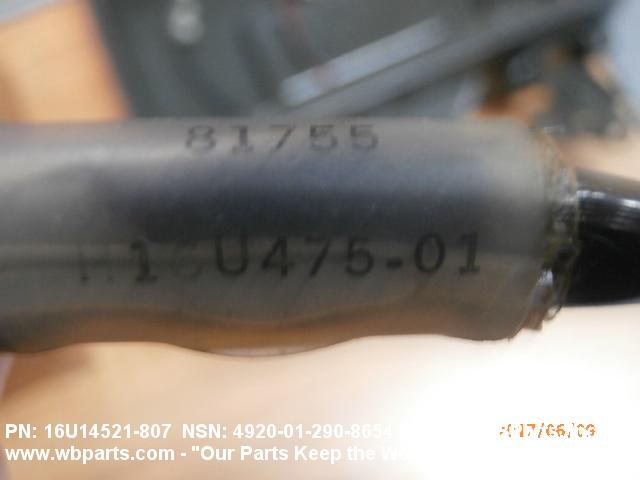

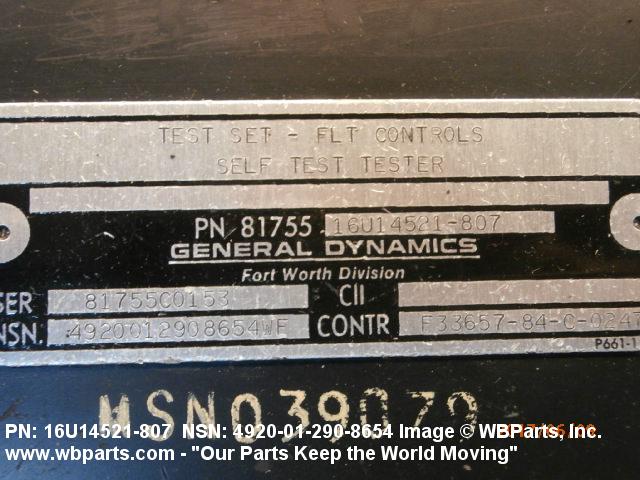

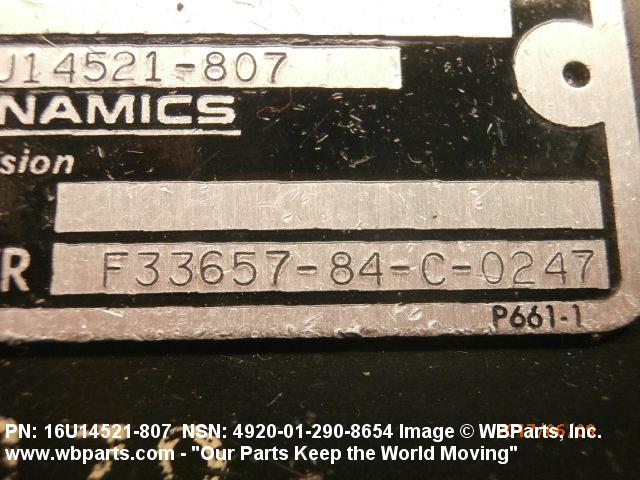

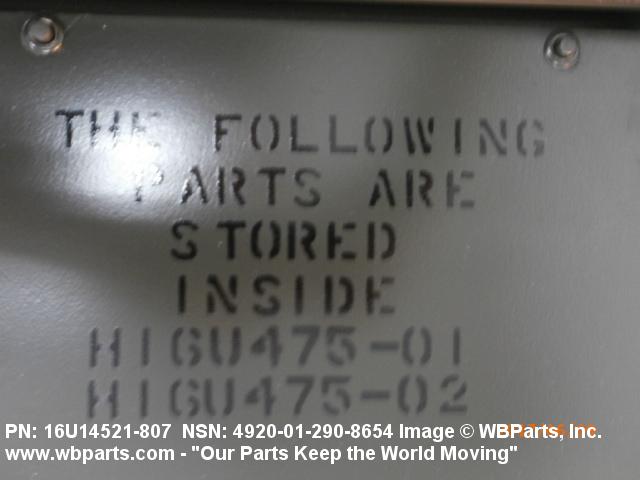

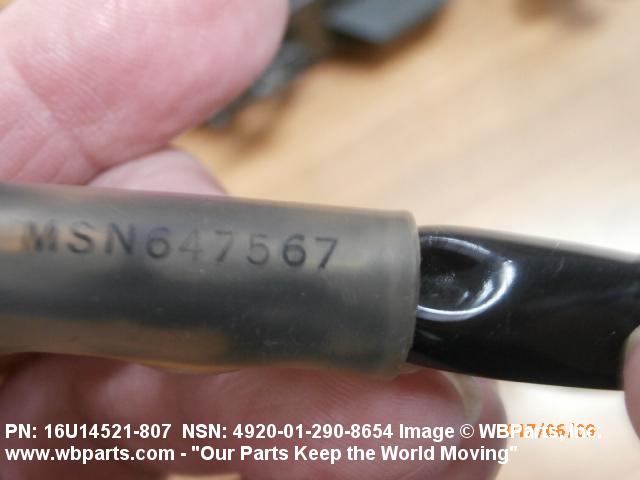

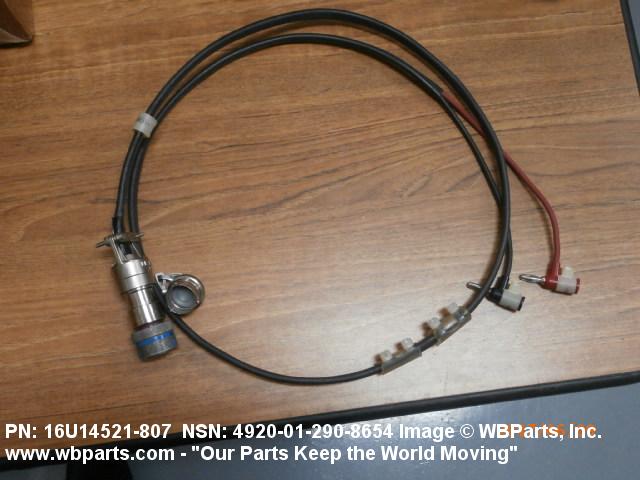

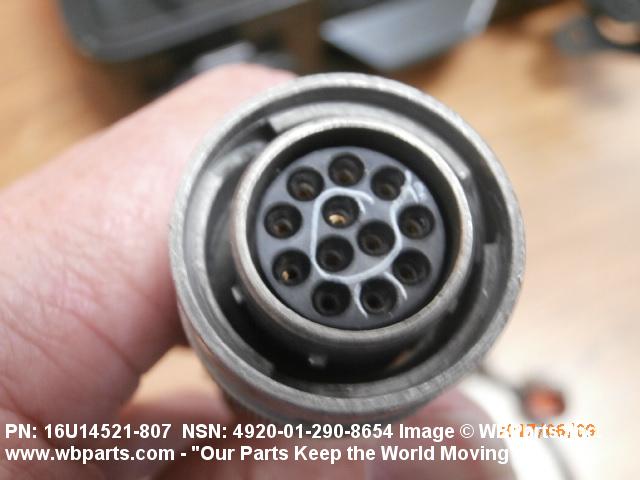

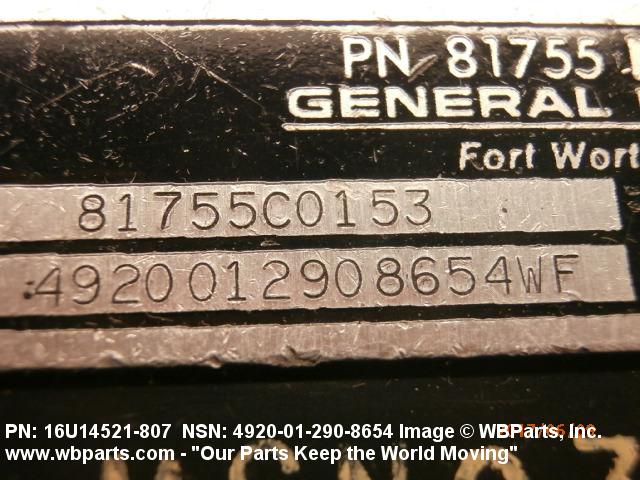

Drawings & Photos | NSN 4920-01-290-8654
Demand History | NSN 4920-01-290-8654
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4920-01-290-8654 | 2024-10-278 | 1 | us |
| 4920-01-290-8654 | 2024-08-226 | 1 | US |
| 16U14521807 | 2024-07-211 | 1 | US |
| 4920-01-290-8654 | 2024-07-208 | 1 | AE |
| 4920-01-290-8654 | 2020-12-343 | 1 | US |
| 4920-01-290-8654 | 2017-01-24 | 1 | Portugal |
Cross Reference | NSN 4920-01-290-8654
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 16U14521-807 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4920-01-290-8654
Related Products | NSN 4920-01-290-8654
Technical Data | NSN 4920-01-290-8654
| Characteristic | Specifications |
|---|---|
| TEST TYPE FOR WHICH DESIGNED | SELF TEST,DISPLAY |
| INCLOSURE FEATURE | SINGLE ITEM W/CARRYING CASE |

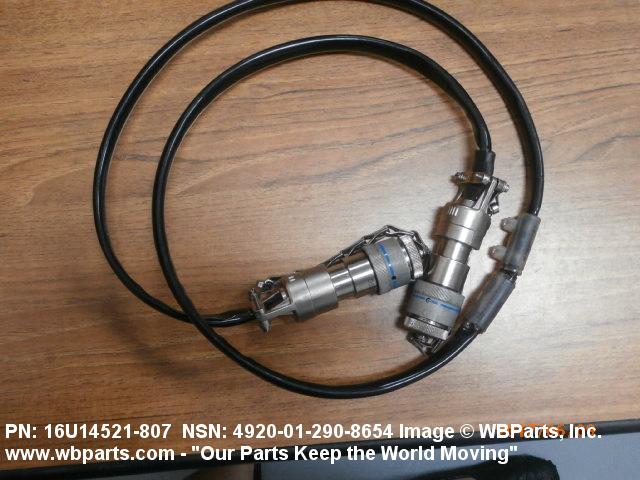

| MAJOR COMPONENTS | CASE 1; CABLE ASSEMBLY 2; CASE; 1; ELECTRONIC SUBASSEMBLY 1 |
| III END ITEM IDENTIFICATION | FLIGHT CONTROL PANEL,F-16 A/B/C/D ACFT |
| III FUNCTIONAL DESCRIPTION | USED TO DETECT AND DISPLAY THE FAILED TEST NUMBER AND SIGNAL CAUSING THE FAILURE DURING SELF-TEST PROCEDURES |
| MANUFACTURERS CODE | 81755 |
| DESIGN CONTROL REFERENCE | 16U14521-807 |
Restrictions/Controls & Freight Information | NSN 4920-01-290-8654
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | C | Munitions List Item or Commerce Control List Item. Demilitarization required. Remove and/or demilitarize installed key point(s) as prescribed in the Defense Demilitarization Manual, or lethal parts, components and accessories. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | SU | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4920-01-290-8654
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | WF | SU:F-16 AIR COMBAT FIGHTER |
| Budget Code | Y | variousO & M:AF centrally procured equipment items. They are separate, primary end items (other than the weapon system itself) needed by a user to perform an assigned mission. They are nonexpendable items (ERRCD NF or ND) which are not consumed in use, and they do not lose their original identity during periods of use by incorporation into, or attachment to another assembly. |
| Source of Supply | FGZ | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
