NSN 4920-01-167-2855 856A2618G01, 01-167-2855, 011672855
Product Details | AIRCRAFT MAINTENANCE FIXTURE
4920-01-167-2855 A fixture designed to hold/position aircraft components to facilitate inspection, repair, testing and/or replacement of components. D0 not use if a more specific name applies. See FIXTURE (1) (as modified).
Part Alternates: 856A2618G01, 4920-01-167-2855, 01-167-2855, 4920011672855, 011672855
Maintenance and Repair Shop Equipment | Aircraft Maintenance and Repair Shop Specialized Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 49 | 24 NOV 1983 | 01-167-2855 | 37261 ( FIXTURE, AIRCRAFT MAINTENANCE ) |

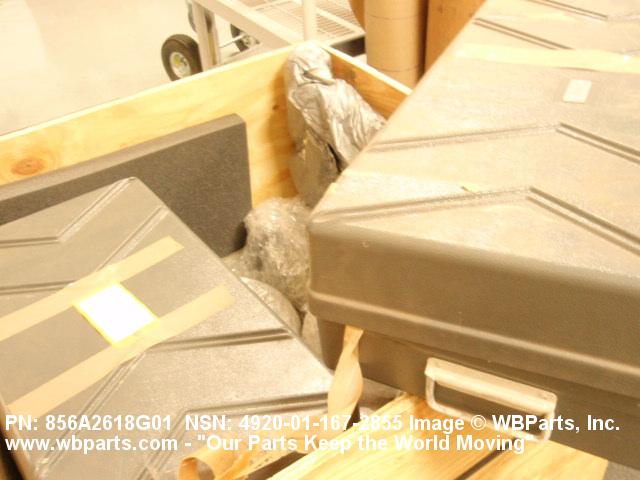

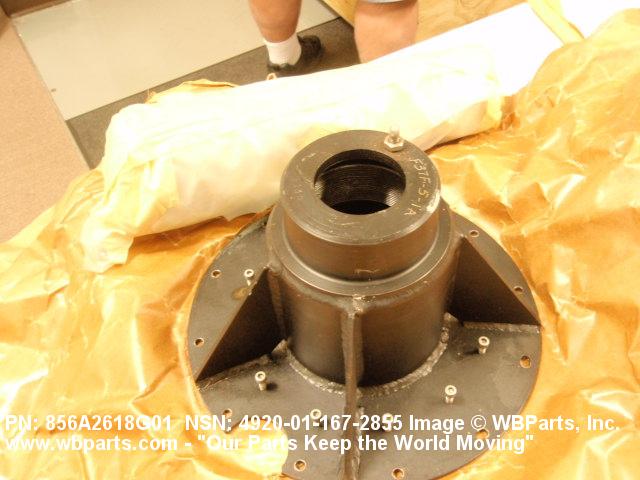

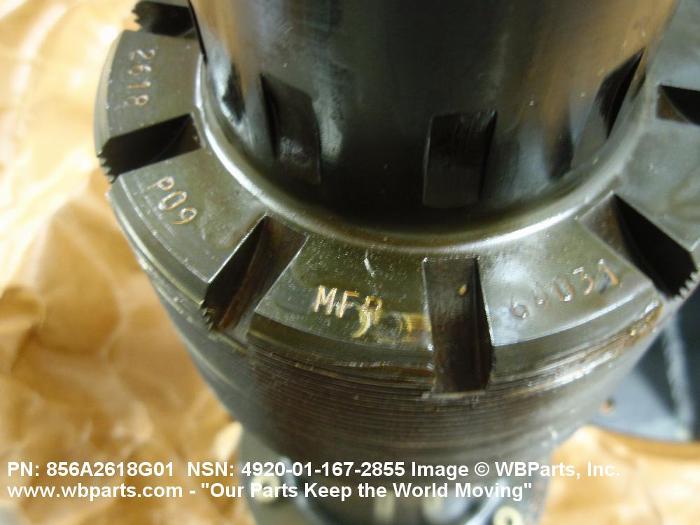

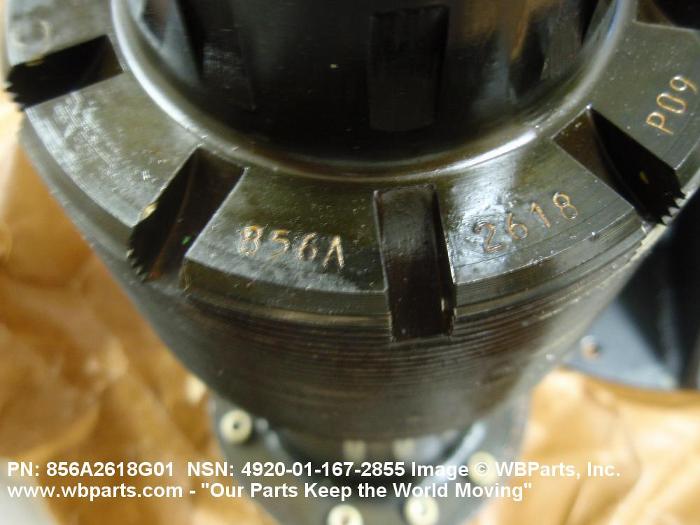

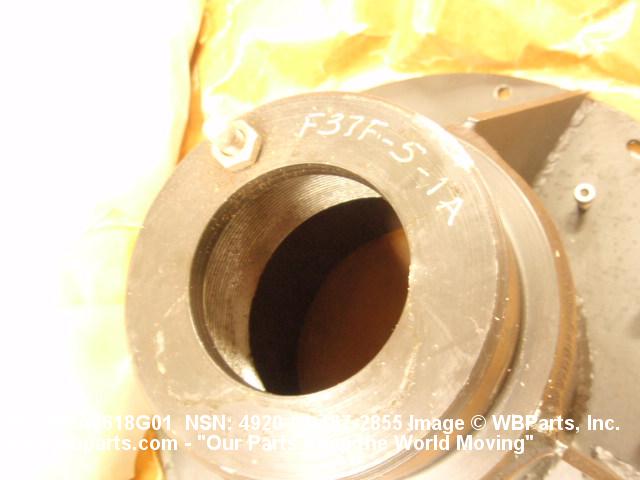

Drawings & Photos | NSN 4920-01-167-2855
Demand History | NSN 4920-01-167-2855
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 856A2618G01 | 2009-04-91 | 3 | United States |
| 4920-01-167-2855 | 2009-03-62 | 9 | United States |
Cross Reference | NSN 4920-01-167-2855
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 856A2618G01 | 58828 | CFM INTERNATIONAL, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4920-01-167-2855
Related Products | NSN 4920-01-167-2855
Technical Data | NSN 4920-01-167-2855
| Characteristic | Specifications |
|---|---|
| FUNCTIONAL DESCRIPTION | USED DURING HANDLING AND TRANSPORTATION OF THE LPT MAJOR MODULE |
| REFERENCE DATA AND LITERATURE | F108-CF-100 |
| NOMINAL OVERALL LENGTH | 14.700 INCHES |
| NOMINAL OVERALL WIDTH | 12.900 INCHES |
| NOMINAL OVERALL HEIGHT | 12.900 INCHES |
| SPECIAL FEATURES | USED TO RESTRAIN THE LOW PRESSURE TURBINE (LPT) ROTOR AND STATOR; DWG TITLE RESTRAINING FIXTURE,ROTOR AND STATOR |
| III END ITEM IDENTIFICATION | KC-135R CFM56 (F108-CF-100) |
Restrictions/Controls & Freight Information | NSN 4920-01-167-2855
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186630 | TOOLS:NOI O/T PLSTC IN BBLS/BXS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 738 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
Management | NSN 4920-01-167-2855
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | RN | TG:GROUND SUPPORT EQUIPMENT (FSC RESIDUAL MMAC) |
| Budget Code | Y | variousO & M:AF centrally procured equipment items. They are separate, primary end items (other than the weapon system itself) needed by a user to perform an assigned mission. They are nonexpendable items (ERRCD NF or ND) which are not consumed in use, and they do not lose their original identity during periods of use by incorporation into, or attachment to another assembly. |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
