NSN 4920-01-051-9230 160D1979351, 160D197935-1, 01-051-9230
Product Details | AIRCRAFT MAINTENANCE FIXTURE
4920-01-051-9230 A fixture designed to hold/position aircraft components to facilitate inspection, repair, testing and/or replacement of components. D0 not use if a more specific name applies. See FIXTURE (1) (as modified).
Part Alternates: 160D1979351, 160D197935-1, 4920-01-051-9230, 01-051-9230, 4920010519230, 010519230
Maintenance and Repair Shop Equipment | Aircraft Maintenance and Repair Shop Specialized Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 49 | 07 DEC 1977 | 01-051-9230 | 37261 ( FIXTURE, AIRCRAFT MAINTENANCE ) |

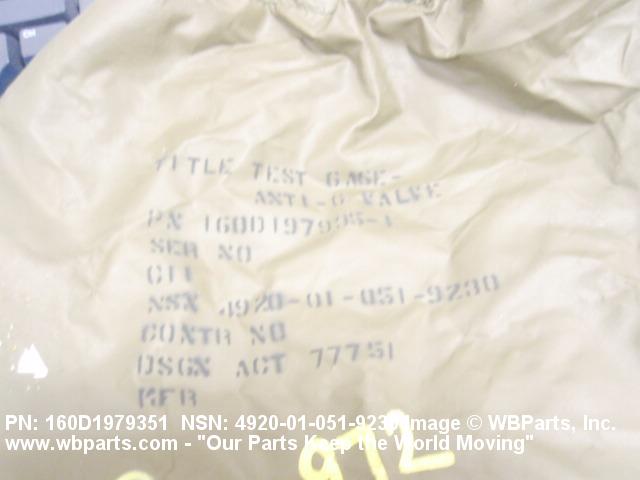

Drawings & Photos | NSN 4920-01-051-9230
Demand History | NSN 4920-01-051-9230
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 160D1979351 | 2009-12-350 | 1 | United States |
| 4920-01-051-9230 | 2009-11-327 | 1 | South Korea |
Cross Reference | NSN 4920-01-051-9230
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 160D197935-1 | 25612 | ABRAMS H B CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4920-01-051-9230
Related Products | NSN 4920-01-051-9230
Technical Data | NSN 4920-01-051-9230
| Characteristic | Specifications |
|---|---|

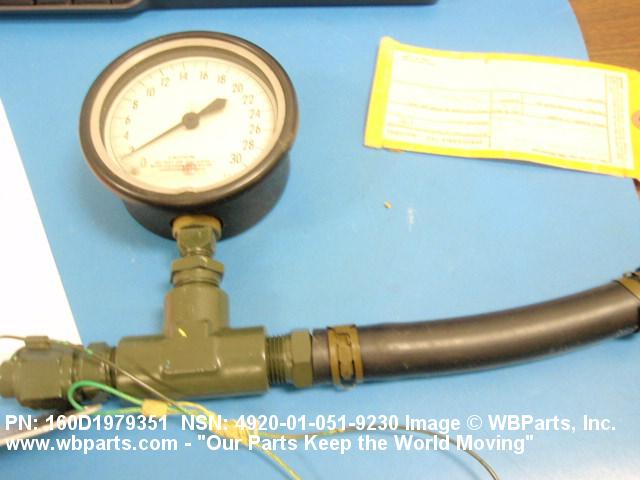

| FUNCTIONAL DESCRIPTION | USED TO CHECK PRESSURE FROM ANTI-G SUIT REGULATOR VALVE TO THE PILOTS SUIT |

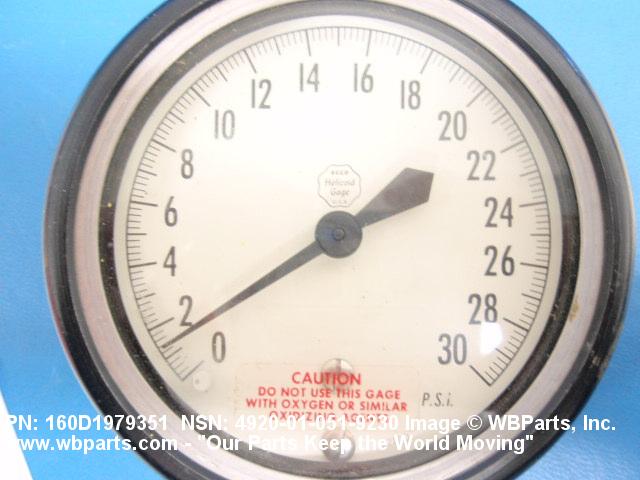

| SPECIAL FEATURES | C/O NIPPLE P/N AN816-100; REDUCER P/N AN912-50; TEE P/N AN917-40; CAP P/N AN929-10; CONNECTOR MS220131-2; CLAMP 2,MS22064-4; ADAPTER MS24522-8; HOSE 6.000 IN. LG.; GAGE 0 TO 30 PSI |
| III END ITEM IDENTIFICATION | A-10A ACFT AGE. |
| MANUFACTURERS CODE | 25612 |
| DESIGN CONTROL REFERENCE | 160D197935-1 |
Restrictions/Controls & Freight Information | NSN 4920-01-051-9230
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186630 | TOOLS:NOI O/T PLSTC IN BBLS/BXS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4920-01-051-9230
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | RH | TG:AUTO TEST EQUIPMENT/AUTO TEST SYSTEMS (ATE/ATS) (FSC RESIDUAL MMAC) |
| Source of Supply | JCL | |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
