NSN 4920-01-038-8466 01099000, 01-0990-00, 361-022-002
Product Details | INDICATOR TEST SET
4920-01-038-8466 A test set specifically designed for use in making examinations of indicators.20349200058Aircraft Maintenance and Repair Shop Specialized Equipment66250070Electrical and Electronic Properties Measuring and Testing Instruments66800078Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
Part Alternates: 01099000, 01-0990-00, 361-022-002, 4920-01-038-8466, 01-038-8466, 4920010388466, 010388466, 361022002
Maintenance and Repair Shop Equipment | Aircraft Maintenance and Repair Shop Specialized Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 49 | 14 APR 1977 | 01-038-8466 | 03647 ( TEST SET, INDICATOR ) |

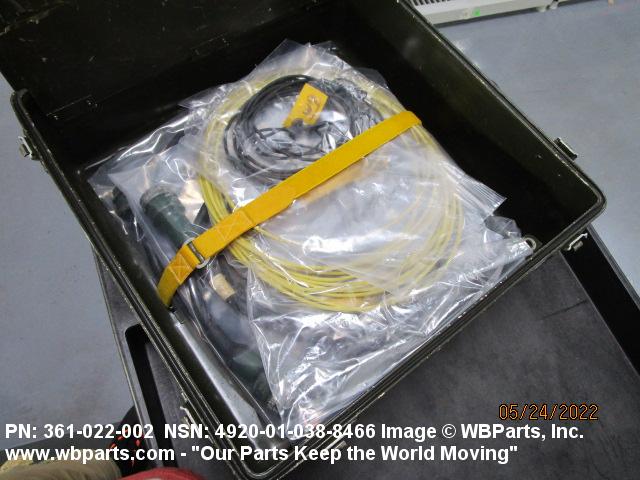

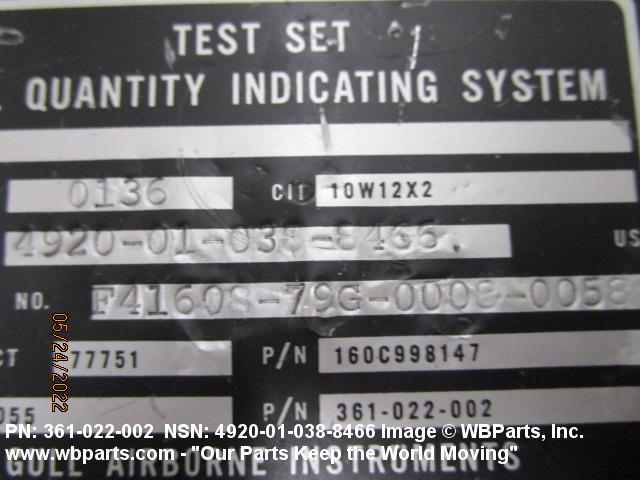

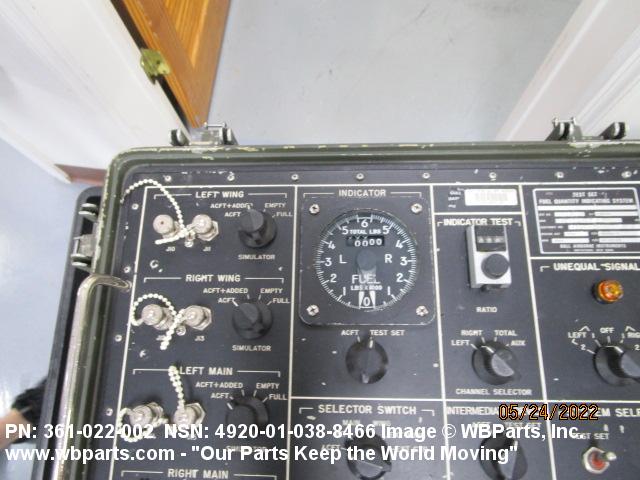

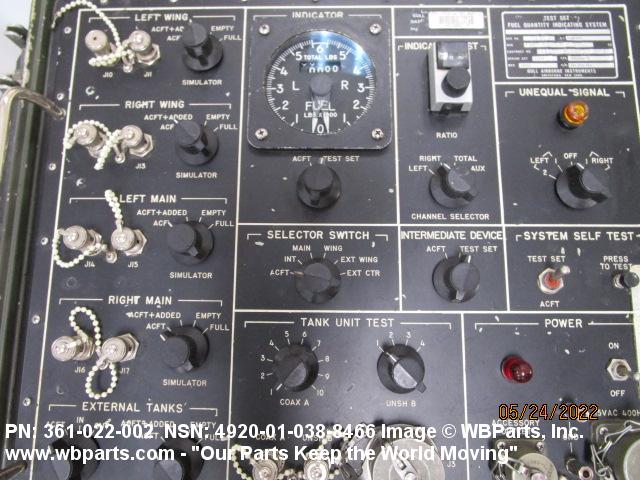

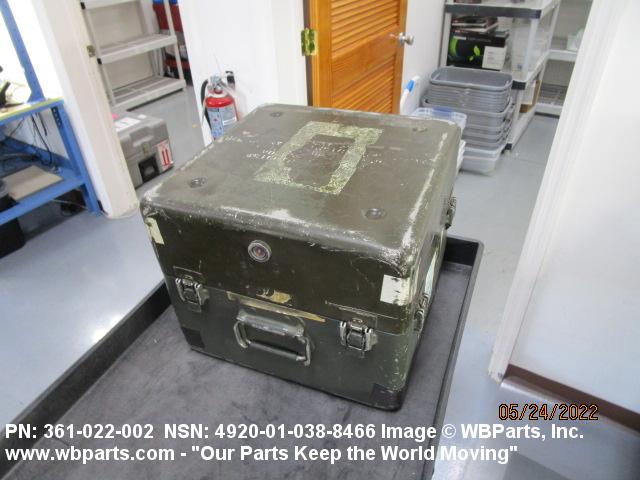

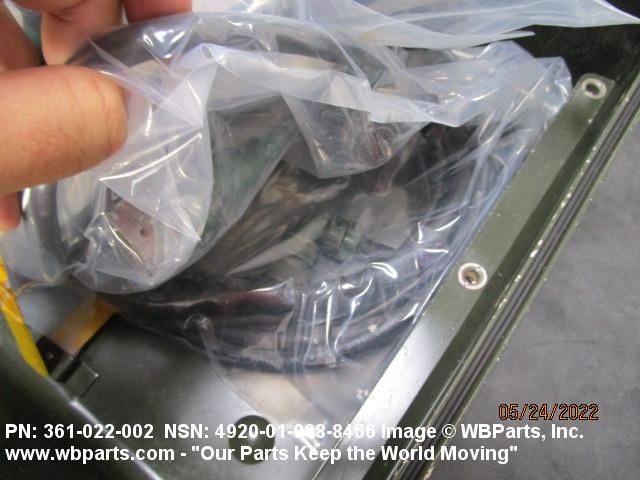

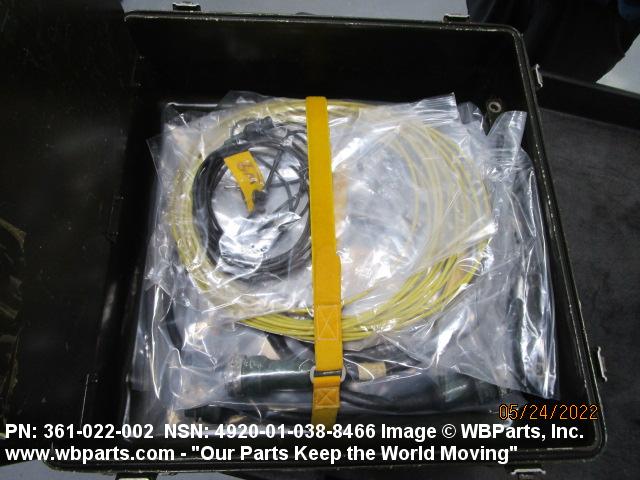

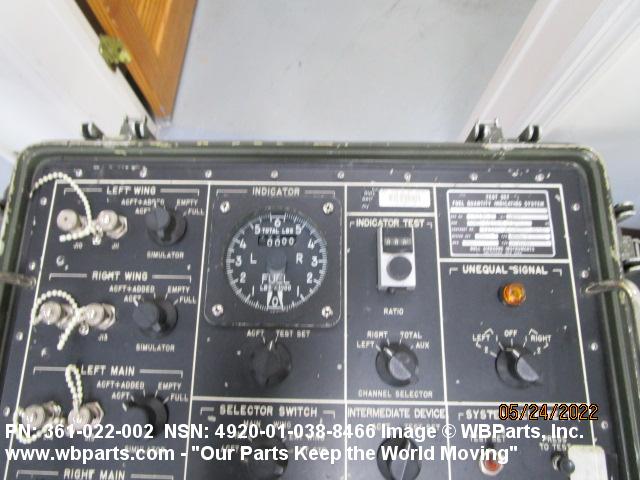

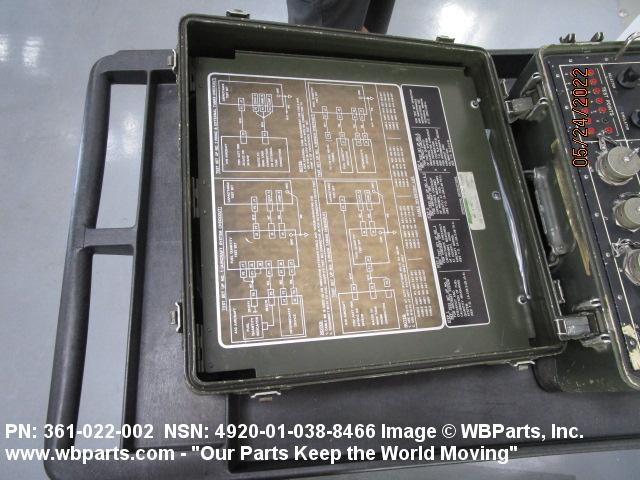

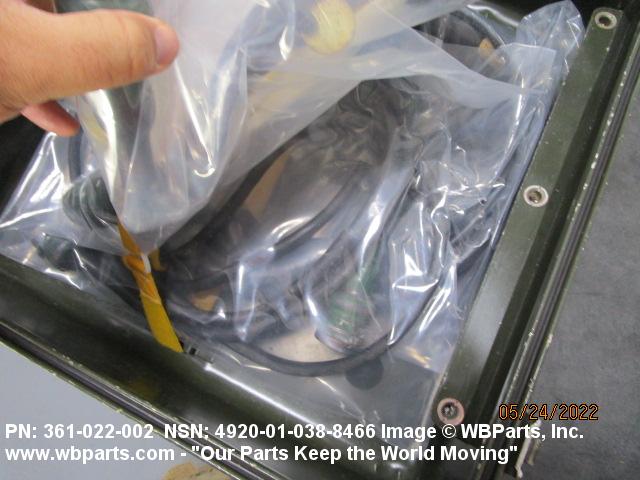

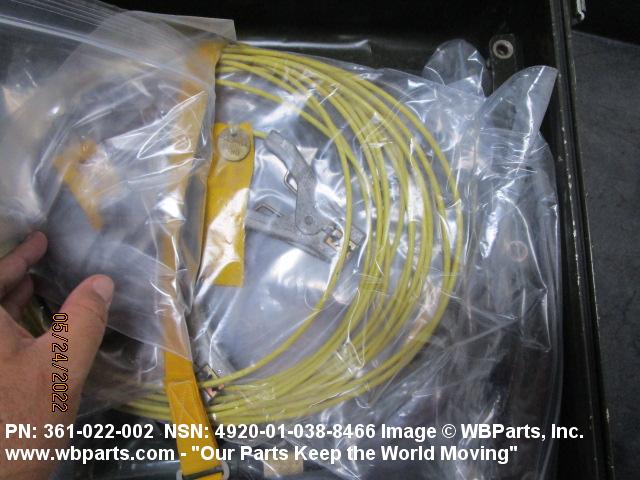

Drawings & Photos | NSN 4920-01-038-8466
Demand History | NSN 4920-01-038-8466
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4920-01-038-8466 | 2023-09-250 | 5 | US |
| 4920-01-038-8466 | 2022-03-83 | 1 | United States |
| 361022002 | 2022-02-47 | 1 | us |
| 361022002 | 2022-02-45 | 1 | US |
| 4920-01-038-8466 | 2021-08-236 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4920-01-038-8466
Related Products | NSN 4920-01-038-8466
Technical Data | NSN 4920-01-038-8466
| Characteristic | Specifications |
|---|---|
| TEST TYPE FOR WHICH DESIGNED | FUNCTIONAL |
| ELECTRICAL POWER SOURCE RELATIONSHIP | OPERATING |
| AC VOLTAGE RATING | 115.0 VOLTS NOMINAL |
| FREQUENCY RATING | 400.0 HERTZ NOMINAL |
| PHASE | SINGLE |
| INCLOSURE FEATURE | SINGLE ITEM W/HOUSING |
| HEIGHT | 12.880 INCHES NOMINAL |
| LENGTH | 18.120 INCHES NOMINAL |
| WIDTH | 18.120 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | A-10 ACFT AGE |

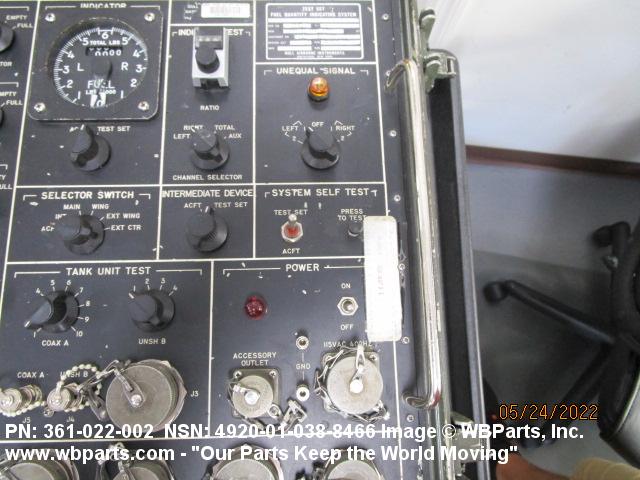

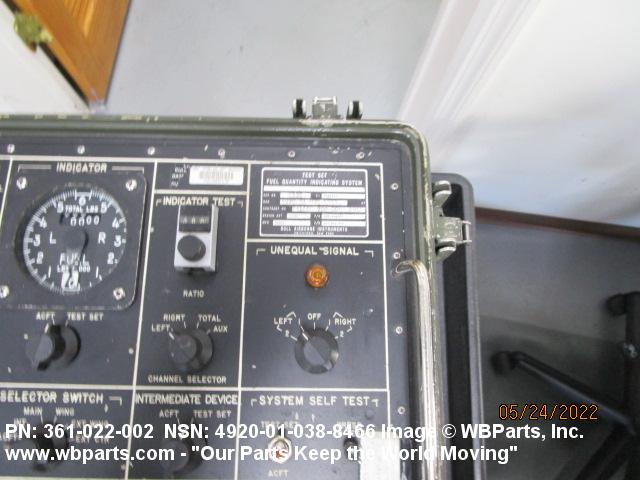

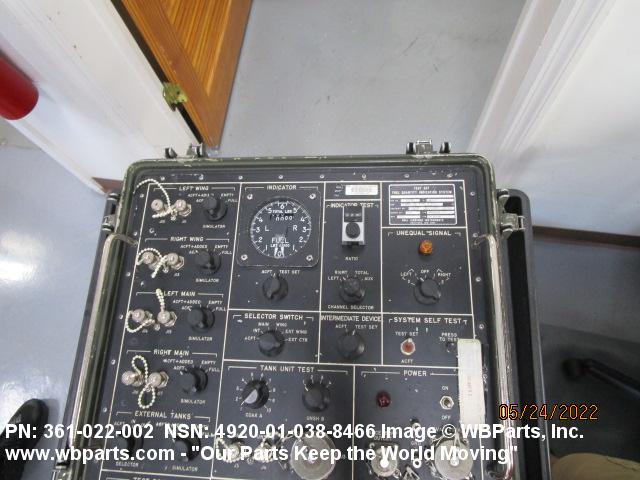

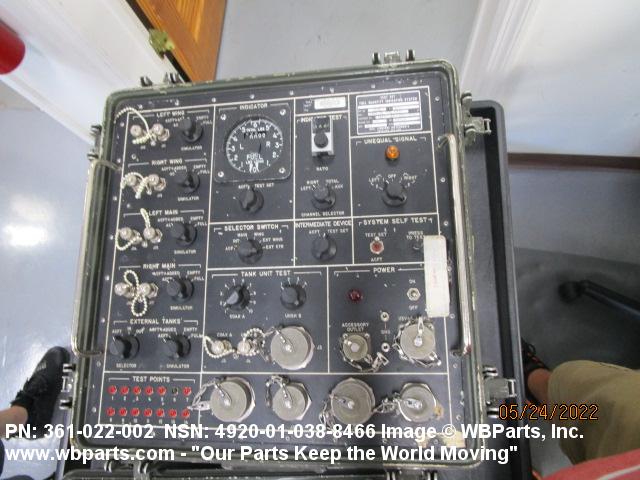

| III FUNCTIONAL DESCRIPTION | USED FOR CHECKING AND CALIBRATING COMPONENTS OF ACFT FUEL MEASURING/INDICATING SYSTEMS,IN PARTICULAR FUEL QUANTITY INDICATOR AND ASSOCIATED INTERMEDIATE DEVICES FOR A-10 ACFT |
| III REFERENCE DATA AND LITERATURE | T.O. 33D2-3-88-1 |
Restrictions/Controls & Freight Information | NSN 4920-01-038-8466
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Q | Extremely fragile items including delicate instruments. |
| Special Handling Code | Q | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4920-01-038-8466
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | RN | TG:GROUND SUPPORT EQUIPMENT (FSC RESIDUAL MMAC) |
| Budget Code | Y | variousO & M:AF centrally procured equipment items. They are separate, primary end items (other than the weapon system itself) needed by a user to perform an assigned mission. They are nonexpendable items (ERRCD NF or ND) which are not consumed in use, and they do not lose their original identity during periods of use by incorporation into, or attachment to another assembly. |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | S | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
