NSN 4920-01-024-5918 PWA53370, PWA53370C, 01-024-5918
Product Details | AIRCRAFT ENGINE MAINTENANCE FIXTURE
4920-01-024-5918 A fixture designed to hold/position aircraft engine/engine components to facilitate inspection, maintenance, repair, testing and/or replacement of components.
Part Alternates: PWA53370, PWA53370C, 4920-01-024-5918, 01-024-5918, 4920010245918, 010245918
Maintenance and Repair Shop Equipment | Aircraft Maintenance and Repair Shop Specialized Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 49 | 14 JUL 1976 | 01-024-5918 | 48925 ( FIXTURE, ENGINE MAINTENANCE, AIRCRAFT ) |

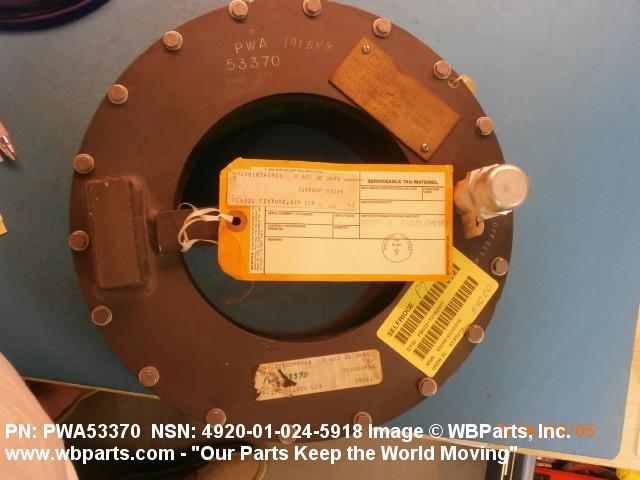

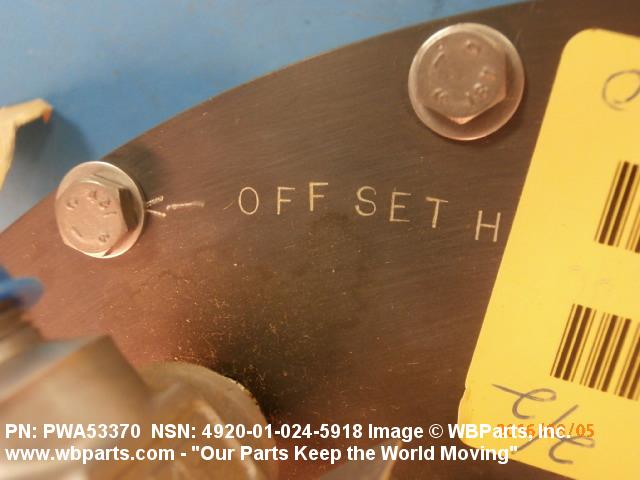

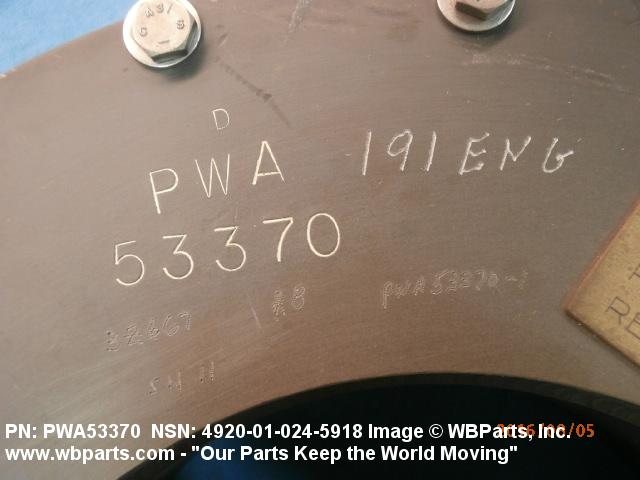

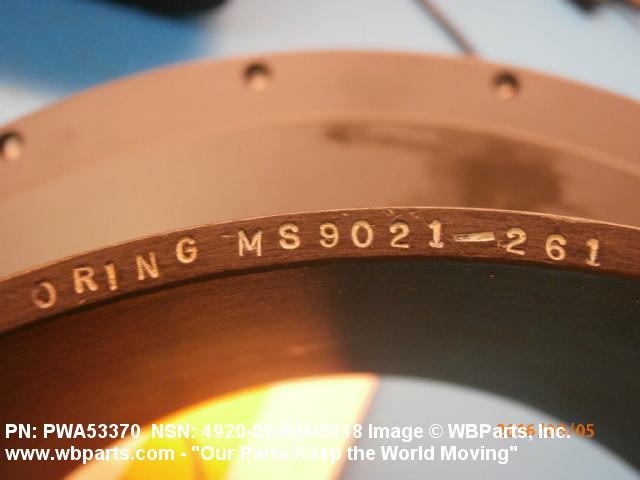

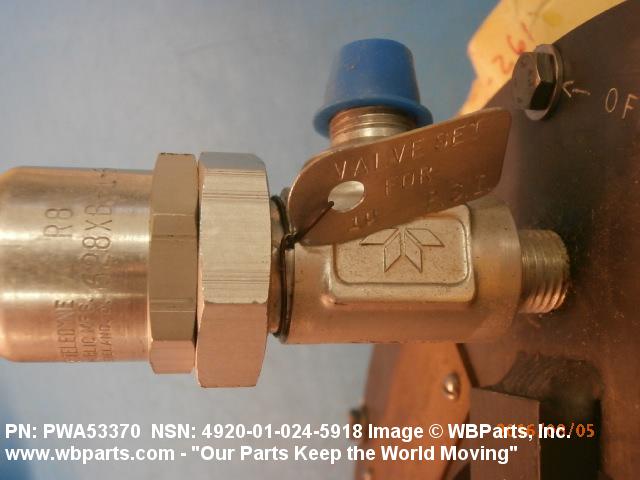

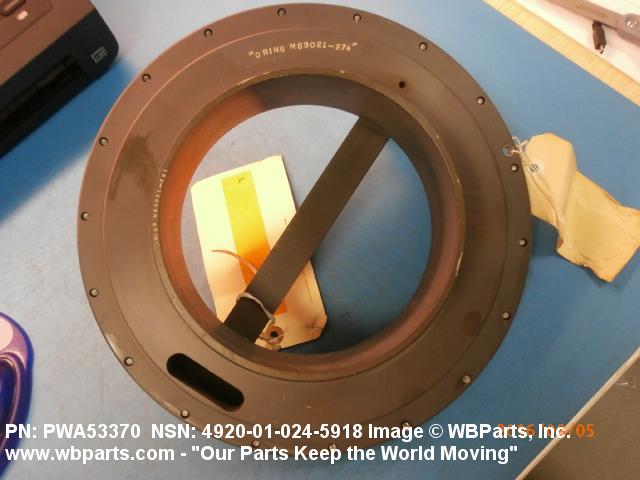

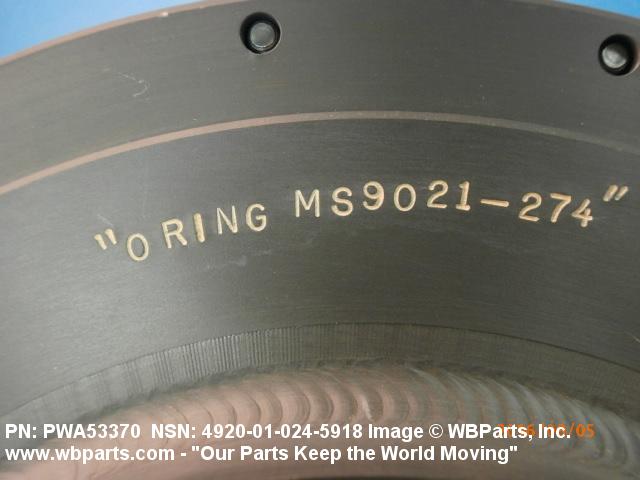

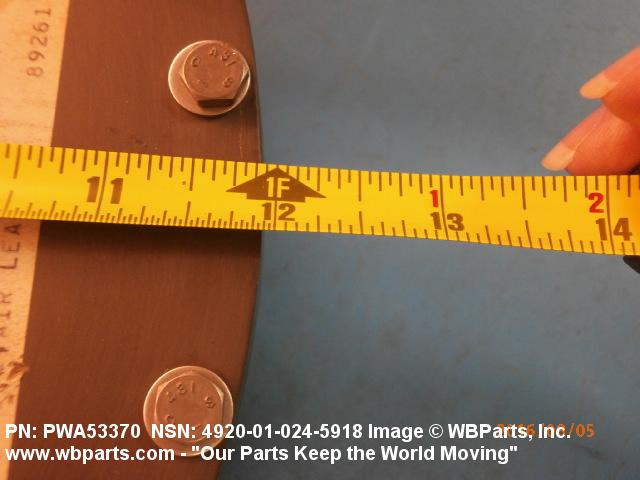

Drawings & Photos | NSN 4920-01-024-5918
Demand History | NSN 4920-01-024-5918
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| PWA53370 | 2016-04-120 | 1 | Saudi Arabia |
| PWA53370 | 2016-03-76 | 1 | Saudi Arabia |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4920-01-024-5918
Related Products | NSN 4920-01-024-5918
Technical Data | NSN 4920-01-024-5918
| Characteristic | Specifications |
|---|---|
| FUNCTIONAL DESCRIPTION | USED AS AIR LEAK CHECK FIXTURE DURING DIFFUSSER CASE OIL TUBE REPAIR/MAINTENANCE |
| REFERENCE DATA AND LITERATURE | SERD NO. 2615; T.O. 2J-F100-94 |

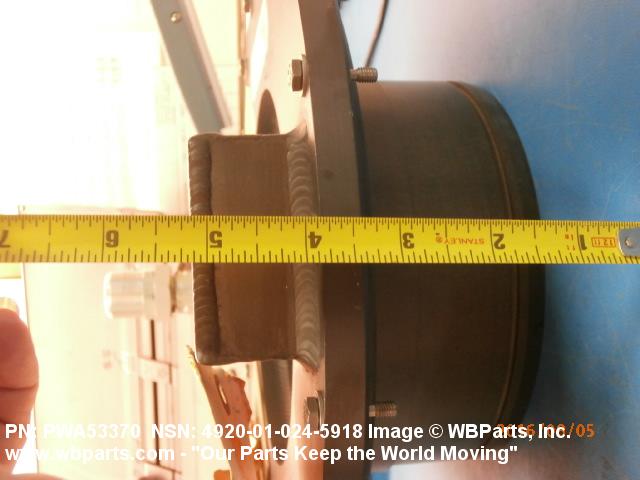

| NOMINAL OVERALL HEIGHT | 5.187 INCHES |
| NOMINAL OVERALL DIAMETER | 12.000 INCHES |
| SPECIAL FEATURES | COMPANY ITEM NAME, FIXTURE AIR LEAK CHECK, DIFFUSER CASE OIL TUBES |
| III END ITEM IDENTIFICATION | F100-PW-100/200/220/229 ENGINE |
| MANUFACTURERS CODE | 33575 |
| DESIGN CONTROL REFERENCE | PWA53370 |
Restrictions/Controls & Freight Information | NSN 4920-01-024-5918
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 147650 | OUTFITS MILITARY EQUIP FOR REPAIR |
| Less than car load rating | U | 50 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4920-01-024-5918
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | RH | TG:AUTO TEST EQUIPMENT/AUTO TEST SYSTEMS (ATE/ATS) (FSC RESIDUAL MMAC) |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
