NSN 4920-00-930-6320 MILP58050, MIL-P-58050, TE6748
Product Details | TRAILER MOUNTED AIRCRAFT ENGINE OILER AND PICKLER
4920-00-930-6320 A complete unit capable of being transported by land or air. It is designed to preoil all internal moving parts of aircraft reciprocating engines after removal from storage and to coat with a protective pickling solution prior to storage for prevention of rust, corrosion, and the like.
Part Alternates: MILP58050, MIL-P-58050, TE6748, 4920-00-930-6320, 00-930-6320, 4920009306320, 009306320
Maintenance and Repair Shop Equipment | Aircraft Maintenance and Repair Shop Specialized Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 49 | 24 JUN 1966 | 00-930-6320 | 28303 ( OILER AND PICKLER, AIRCRAFT ENGINE, TRAILER MOUNTED ) |
Drawings & Photos | NSN 4920-00-930-6320
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4920-00-930-6320
Technical Data | NSN 4920-00-930-6320
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | ALUMINUM |
| RESERVOIR CAPACITY | 20.000 GALLONS |
| RESERVOIR HEATING METHOD | INCLUDED |
| STOWAGE COMPARTMENT | INCLUDED |
| PUMP QUANTITY | 1 |
| FUNCTION FOR WHICH DESIGNED | DISPENSING |
| PUMP RATING IN GPM | 3.0 |
| OPERATION METHOD | ELECTRIC MOTOR |
| CURRENT TYPE | DC |
| VOLTAGE IN VOLTS | 28.0 |
| HOSE REEL | INCLUDED |
| REEL OPERATION METHOD | POWER |
| TRAILER OVERALL LENGTH | 64.375 INCHES NOMINAL |
| TRAILER OVERALL WIDTH | 52.500 INCHES NOMINAL |
| TRAILER OVERALL HEIGHT | 30.750 INCHES NOMINAL |

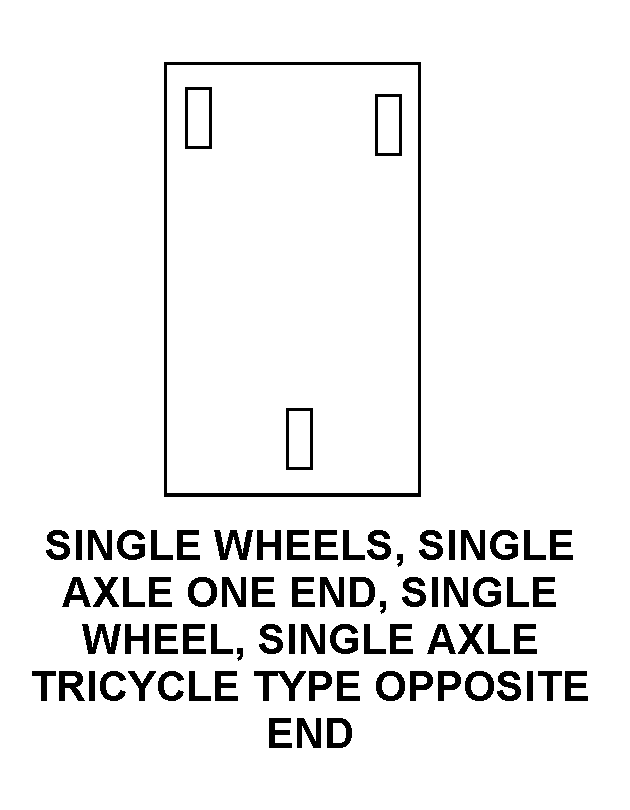

| WHEEL ARRANGEMENT STYLE | E49 SINGLE WHEELS, SINGLE AXLE ONE END, SINGLE WHEEL, SINGLE AXLE TRICYCLE TYPE OPPOSITE END |
| PARKING BRAKES | INCLUDED |
| HITCH TYPE | HINGED TONGUE |
| HITCH DESIGN | FIXED |
| COUPLER TYPE | LUNETTE |
| LIFTING/TIEDOWN FITTINGS | INCLUDED |
| FURNISHED ITEMS AND QUANTITY | ADAPTER,5,ELECTRIC SUPPLY POWER CABLE,1,HOSE,1,LIQUID LEVEL GAGE,1,NOZZLE,1,PICKLING GUN,1,WINTERIZATION HEATER AND THERMOSWITCH,1 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-P-58050 |
| MANUFACTURERS CODE | 31682 |
| DESIGN CONTROL REFERENCE | TE6748 |
Restrictions/Controls & Freight Information | NSN 4920-00-930-6320
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 190190 | VEHICLE MTR:AUTO FRT NOI TRACTORS |
| Less than car load rating | Z | No Rating |
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 894 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
