NSN 4920-00-442-0311 4-1265-2301, 4S94747101A, 4S94747-101A
Product Details | AIRCRAFT HYDRAULIC SYSTEM COMPONENTS FIXTURE
4920-00-442-0311 A fixture designed to hold/position aircraft hydraulic system components/subassemblies to facilitate inspection, maintenance, repair, testing and/or replacement.
Part Alternates: 4-1265-2301, 4S94747101A, 4S94747-101A, 4920-00-442-0311, 00-442-0311, 4920004420311, 412652301, 004420311
Maintenance and Repair Shop Equipment | Aircraft Maintenance and Repair Shop Specialized Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 49 | 05 DEC 1969 | 00-442-0311 | 48927 ( FIXTURE, HYDRAULIC SYSTEM COMPONENTS, AIRCRAFT ) |

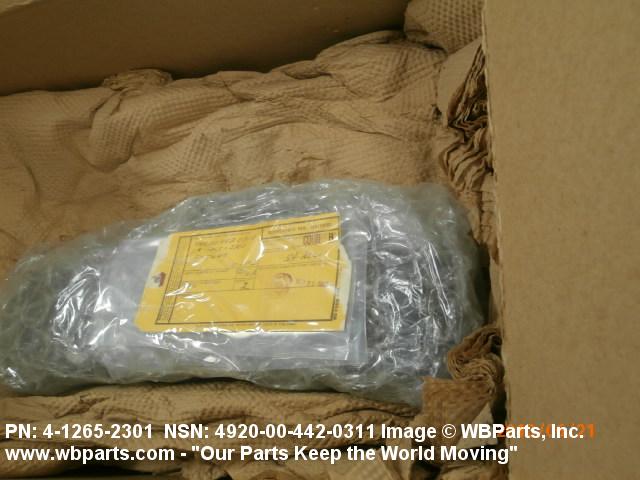

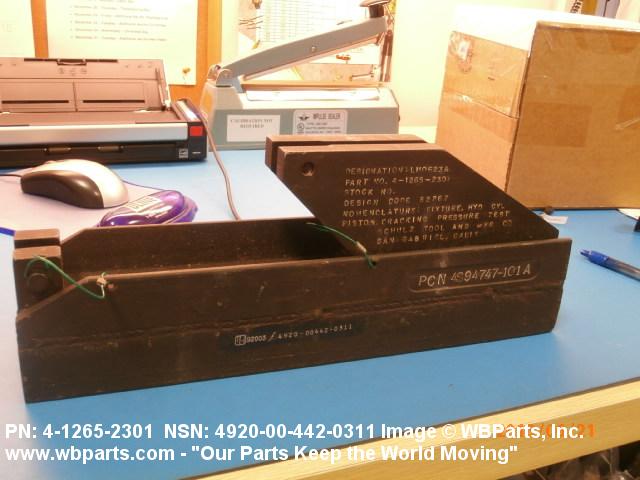

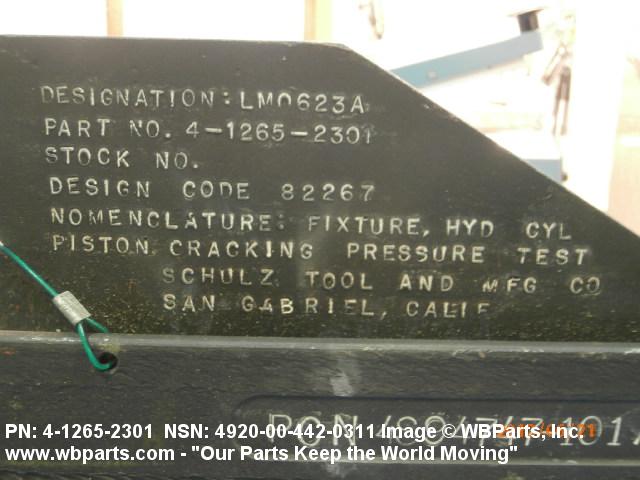

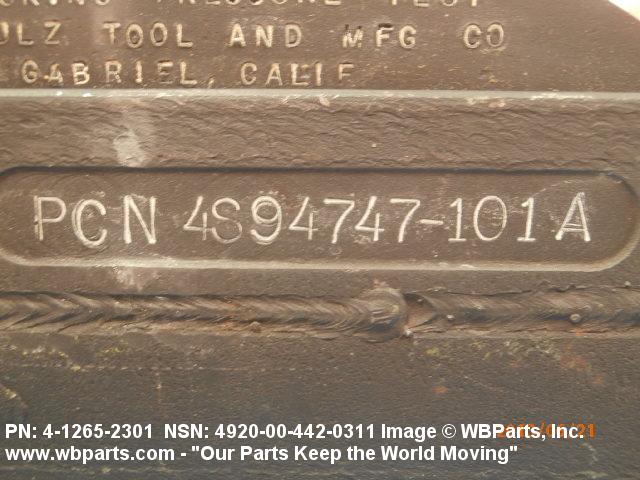

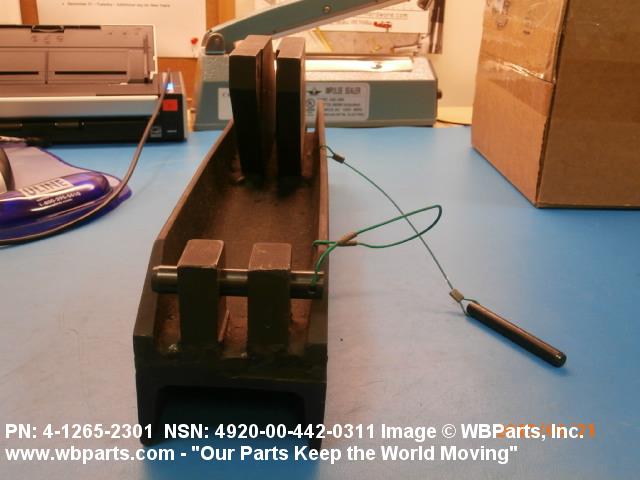

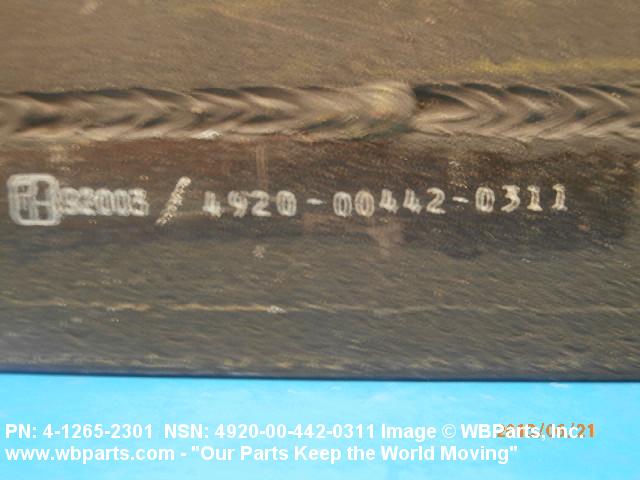

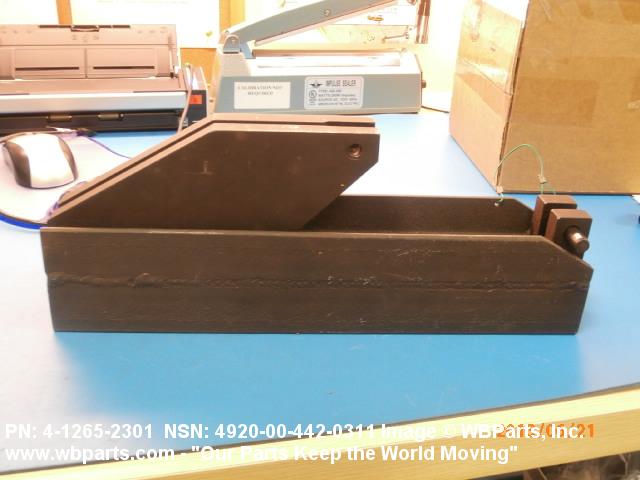

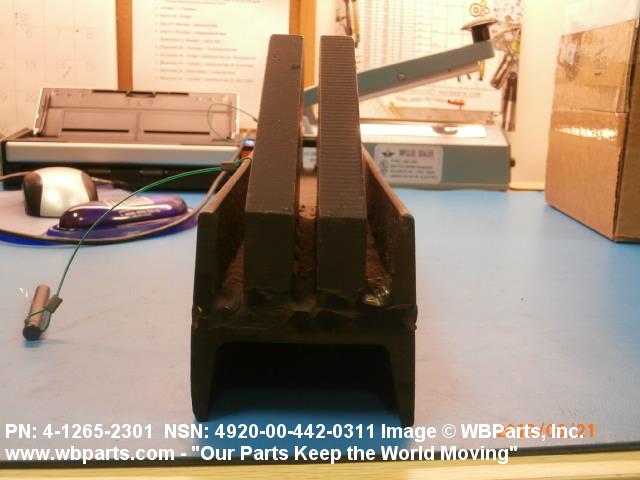

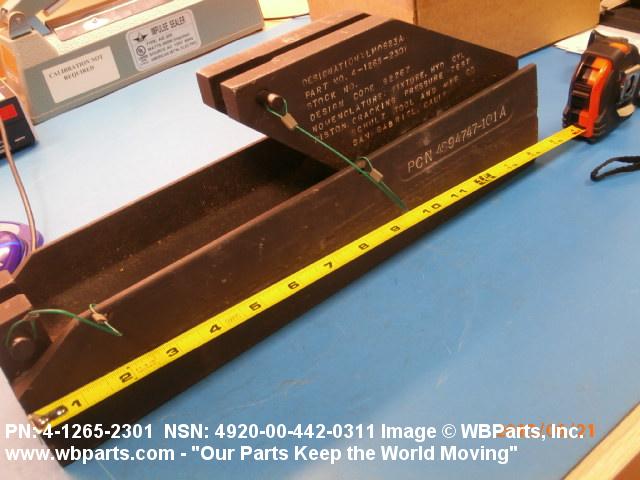

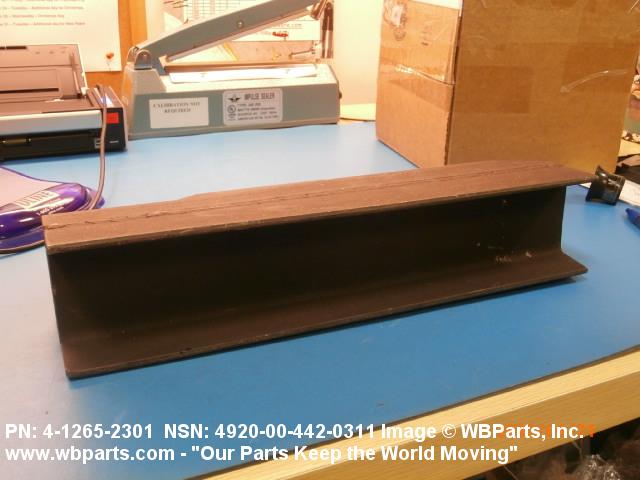

Drawings & Photos | NSN 4920-00-442-0311
Demand History | NSN 4920-00-442-0311
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4920-00-442-0311 | 2021-08-223 | 1 | US |
| 4920-00-442-0311 | 2019-10-298 | 1 | US |
| 4920-00-442-0311 | 2013-05-141 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4920-00-442-0311
Related Products | NSN 4920-00-442-0311
Technical Data | NSN 4920-00-442-0311
| Characteristic | Specifications |
|---|---|
| FUNCTIONAL DESCRIPTION | USED TO PRESSURE TESTS THE CYLINDER FOR EXTERNAL LEAKAGE AND RELEIF VALVE FOR INTERNAL LEAKAGE |
| REFERENCE DATA AND LITERATURE | SERD NO. 0791 |

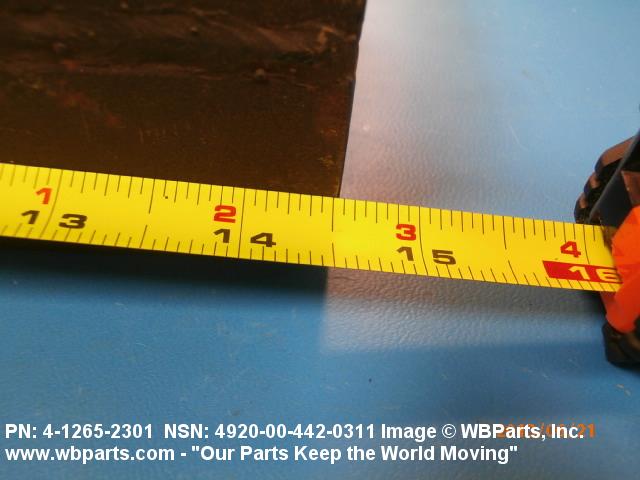

| NOMINAL OVERALL LENGTH | 14.500 INCHES |

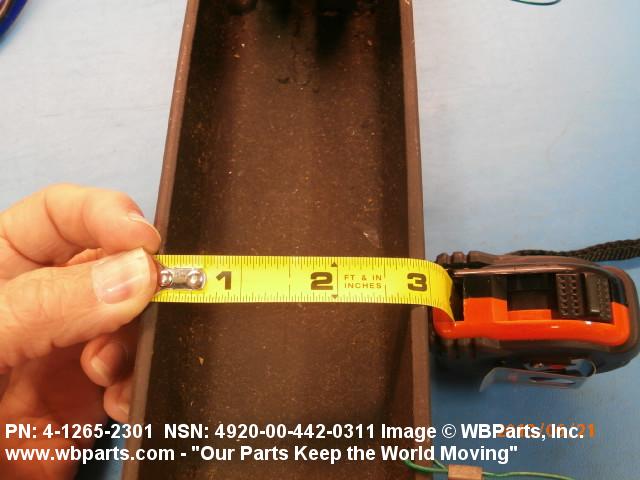

| NOMINAL OVERALL WIDTH | 3.000 INCHES |
| NOMINAL OVERALL HEIGHT | 5.500 INCHES |
| UNPACKAGED UNIT WEIGHT | 9.000 POUNDS |
| SPECIAL FEATURES | C/O 1 BASE, 2 PINS, 2 CABLES, 4 END BALLS; COMPANY NAME-FIXTURE HYDRAULIC |
| III END ITEM IDENTIFICATION | F-15 ACFT |
Restrictions/Controls & Freight Information | NSN 4920-00-442-0311
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 147650 | OUTFITS MILITARY EQUIP FOR REPAIR |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72B | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4920-00-442-0311
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | RN | TG:GROUND SUPPORT EQUIPMENT (FSC RESIDUAL MMAC) |
| Budget Code | Y | variousO & M:AF centrally procured equipment items. They are separate, primary end items (other than the weapon system itself) needed by a user to perform an assigned mission. They are nonexpendable items (ERRCD NF or ND) which are not consumed in use, and they do not lose their original identity during periods of use by incorporation into, or attachment to another assembly. |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
