Product Details | JACK SUPPORT PLATFORM

4910-01-572-5682 An item, usually square in shape, made of various materials and designed to be placed under a SHOE, JACK-SUPPORT or the like, providing additional support and helping to prevent the SHOE, JACK-SUPPORT from sinking into the ground or surface upon which it is placed. A handle(s) may be included on item to aid in carrying and placement. Excludes: SHOE, JACK.20249100063Motor Vehicle Maintenance and Repair Shop Specialized Equipment49200058Aircraft Maintenance and Repair Shop Specialized Equipment

Part Alternates: 12535428, 12535428002, 12535428-002, 4910-01-572-5682, 01-572-5682, 4910015725682, 015725682

Maintenance and Repair Shop Equipment | Motor Vehicle Maintenance and Repair Shop Specialized Equipment

Supply Group (FSG) NSN Assign. NIIN
49 16-MAR-09 01-572-5682

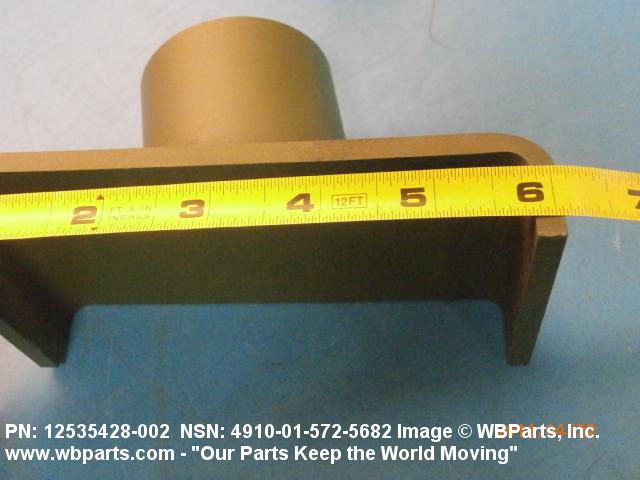

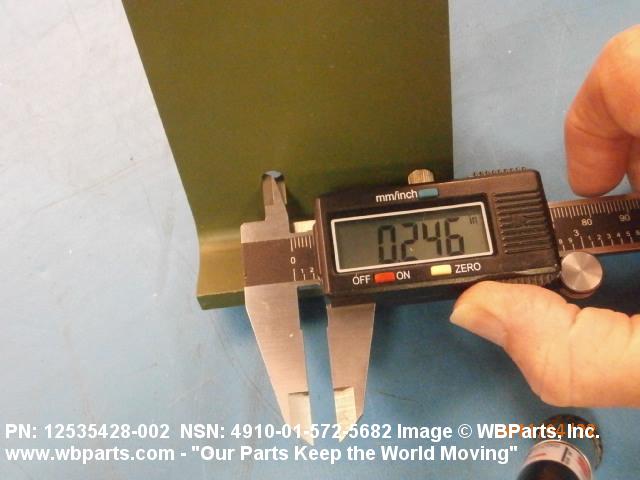

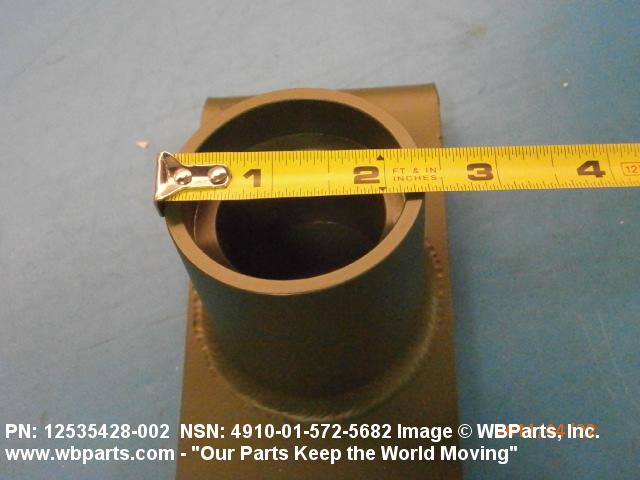

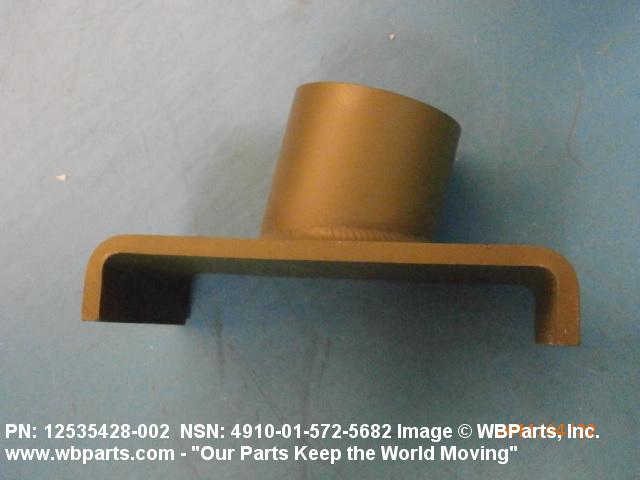

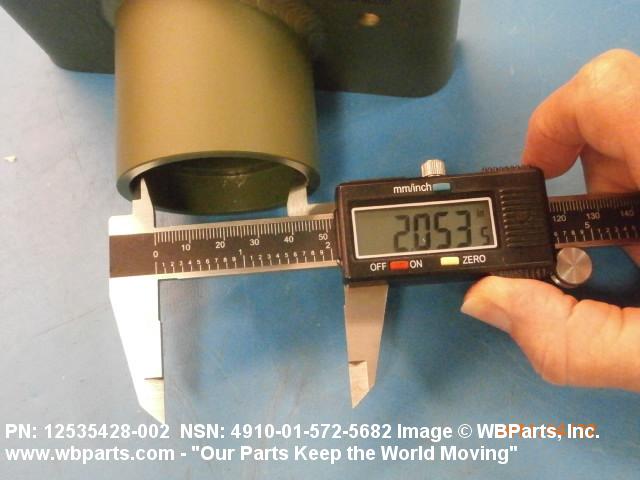

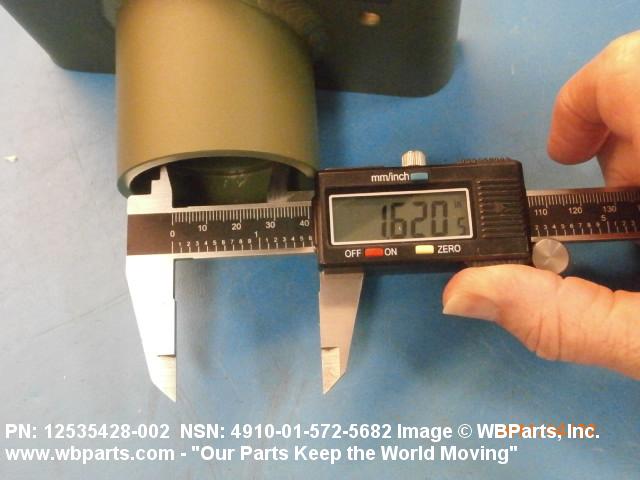

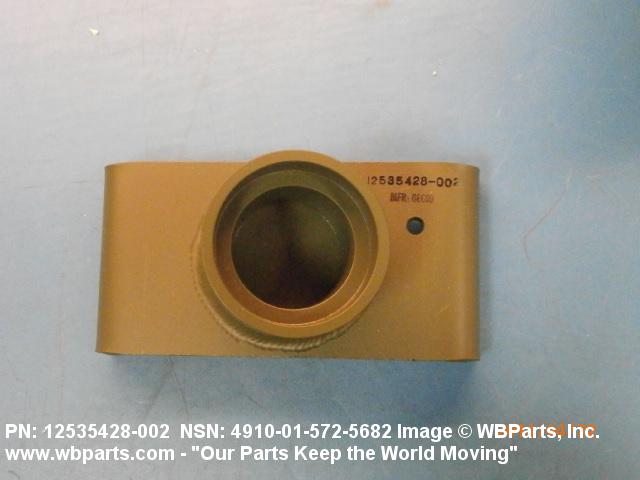

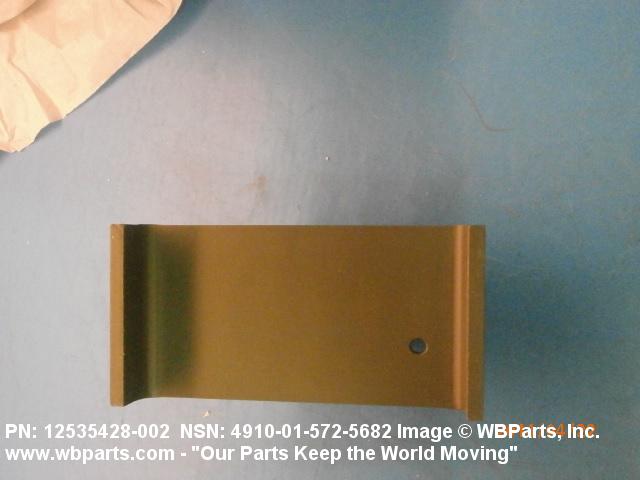

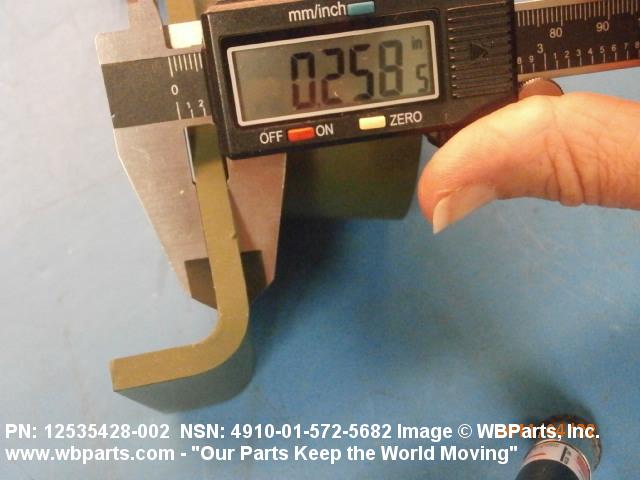

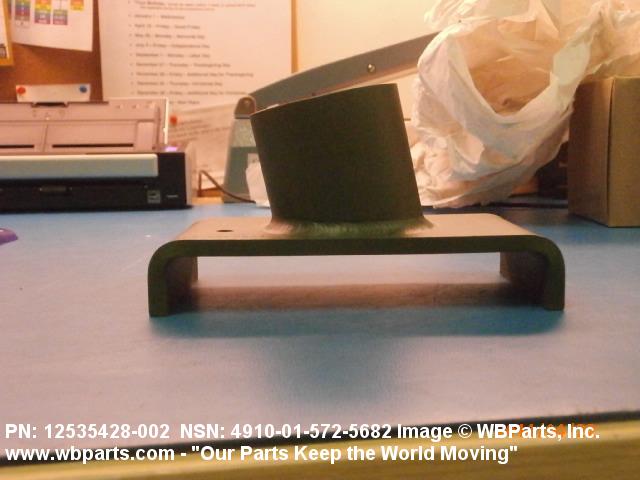

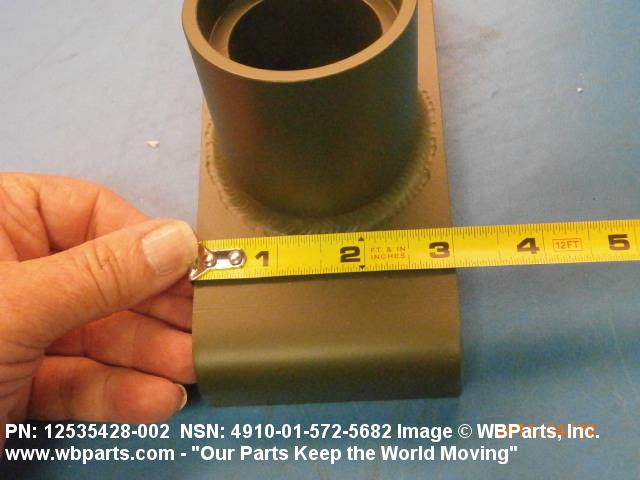

Drawings & Photos | NSN 4910-01-572-5682


Demand History | NSN 4910-01-572-5682

Part Number Request Date QTY Origin
4910-01-572-5682 2016-12-344 1 ES
4910-01-572-5682 2016-12-343 1 United States
4910-01-572-5682 2016-11-326 1 United States
12535428002 2014-03-84 5 United States
4910-01-572-5682 2014-02-51 915 DIBBS
4910-01-572-5682 2013-09-267 450 DIBBS
4910-01-572-5682 2013-08-240 256 DIBBS
4910-01-572-5682 2013-08-213 356 DIBBS
4910-01-572-5682 2013-06-164 400 DIBBS
4910-01-572-5682 2013-06-157 151 DIBBS
4910-01-572-5682 2013-05-136 281 DIBBS
4910-01-572-5682 2012-02-33 715 DIBBS
4910-01-572-5682 2011-04-105 402 DIBBS
4910-01-572-5682 2011-04-91 70 DIBBS
4910-01-572-5682 2010-12-351 150 DIBBS
4910-01-572-5682 2010-10-277 200 DIBBS

Cross Reference | NSN 4910-01-572-5682

Part Number Cage Code Manufacturer
12535428 19207 U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
12535428-002 19207 U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4910-01-572-5682

Technical Data | NSN 4910-01-572-5682

Characteristic Specifications
OVERALL HEIGHT 3.000 INCHES NOMINAL
OVERALL LENGTH 6.256 INCHES NOMINAL
MATERIAL STEEL
SPECIAL FEATURES SUPPORT PLATFORM, JACK
PART NAME ASSIGNED BY CONTROLLING AGENCY JACK ADAPTER
END ITEM IDENTIFICATION 2320-01-549-8610 TRUCK CARGO
SPECIFICATION/STANDARD DATA 05047-ASME Y14.100-2000 PROFESSIONAL/INDUSTRIAL ASSOCIATION SPECIFICATION AND 05047-ASME Y14.5M-1994 PROFESSIONAL/INDUSTRIAL ASSOCIATION SPECIFICATION

Restrictions/Controls & Freight Information | NSN 4910-01-572-5682

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:QStrategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.”
Controlled Inventory Item Code:UUNCLASSIFIED
Electro-static Discharge Susceptible:ANo known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
No Freight Information
