Product Details | FLUID PRESSURE REGULATING VALVE

4820-01-520-8563 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.20248100015Valves, Powered48200018Valves, Nonpowered

Part Alternates: R37461100, R37461-100 , 27364000, 27364-000, 4820-01-520-8563, 01-520-8563, 4820015208563, 015208563

Valves | Valves, Nonpowered

Supply Group (FSG) NSN Assign. NIIN
48 28 MAY 2004 01-520-8563

Drawings & Photos | NSN 4820-01-520-8563


Demand History | NSN 4820-01-520-8563

Part Number Request Date QTY Origin
R37461-100 2022-03-90 8 DIBBS
4820-01-520-8563 2013-01-03 3 DIBBS
4820-01-520-8563 2012-11-321 4 DIBBS
4820-01-520-8563 2012-06-159 1 DIBBS

Cross Reference | NSN 4820-01-520-8563

Part Number Cage Code Manufacturer
27364-000 03990 INGERSOLL-RAND CO
27364-000 4P412 INGERSOLL-RAND COMPANY DBA INGERSOLL-RAND
R37461-100 4P412 INGERSOLL-RAND COMPANY DBA INGERSOLL-RAND

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4820-01-520-8563

Technical Data | NSN 4820-01-520-8563

Characteristic Specifications
BODY MATERIAL ZINC ALLOY, QQ-Z-363
FLOW CONTROL DEVICE DIAPHRAGM
END CONNECTION QUANTITY 2
FIRST END CONNECTION TYPE THREADED INTERNAL PIPE

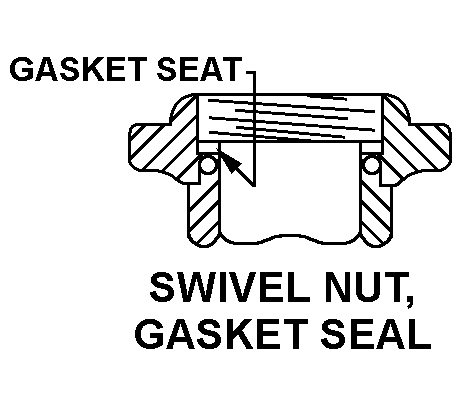

FIRST END STYLE DESIGNATOR B16 SWIVEL NUT, GASKET SEAL
FIRST END THREAD SIZE AND SERIES/TYPE DESIGNATOR 1.000 NPT
FIRST END THREAD DIRECTION RIGHT-HAND
SECOND END RELATIONSHIP WITH FIRST END IDENTICAL
BODY STYLE A1 STRAIGHT THRU
FACE TO FACE DISTANCE 3.500 INCHES NOMINAL
MEDIA FOR WHICH DESIGNED AIR
REGULATION TYPE MANUAL SINGLE STAGE
MANUAL CONTROL METHOD KNOB
VALVE LOADING METHOD SPRING
MAXIMUM INLET PRESSURE RATING 250.0 POUNDS PER SQUARE INCH
FILTER NOT INCLUDED
III PART NAME ASSIGNED BY CONTROLLING AGENCY HEAVY-DUTY SERIES REGULATOR
