NSN 4820-01-518-7401 406888, 40688-8, 40688801
Product Details | TEMPERATURE REGULATING VALVE
4820-01-518-7401 A self-acting valve designed for controlling, by means of a thermostatic element, the flow of liquids or gases therethrough. The thermostatic element is located in liquid or gas whose temperature is controlled by the heat of the liquid or gas flowing through the valve. See also VALVE, RELIEF, PRESSURE AND TEMPERATURE.
Part Alternates: 406888, 40688-8, 40688801, 40688-801, 40747, 4820-01-518-7401, 01-518-7401, 4820015187401, 015187401
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 22 MAR 2004 | 01-518-7401 | 05492 ( VALVE, REGULATING, TEMPERATURE ) |
Drawings & Photos | NSN 4820-01-518-7401
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-01-518-7401
Related Products | NSN 4820-01-518-7401
Technical Data | NSN 4820-01-518-7401
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | BRONZE, ASTM B61 |
| SEAT MATERIAL | STEEL, CORROSION RESISTING |
| STEM MATERIAL | STEEL, CORROSION RESISTING |
| PACKING MATERIAL | PLASTIC, POLYTETRAFLUOROETHYLENE |
| VALVE SIZE | 1.250 INCHES |
| FLOW CONTROL DEVICE | PISTON, TOP GUIDED |
| END CONNECTION SPEC/STD | MIL-F-24227 |
| END CONNECTION QUANTITY | 3 |
| FIRST END CONNECTION TYPE | UNTHREADED INTERNAL PIPE |

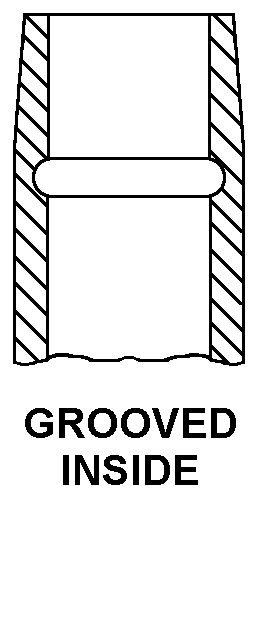

| FIRST END STYLE DESIGNATOR | C9 GROOVED INSIDE |
| FIRST END NOMINAL PIPE SIZE ACCOMMODATED | 1.250 INCHES |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| THIRD END RELATIONSHIP WITH PRECEDING ENDS | IDENTICAL WITH FIRST END |
| BODY STYLE | A2 TEE |
| THERMOSTATIC ELEMENT | LIQUID IMMERSION TYPE |
| CAPILLARY TUBE LENGTH | 12.000 INCHES NOMINAL |
| BULB DIAMETER | 1.125 INCHES NOMINAL |
| TEMP ADJUSTABILITY | ADJUSTABLE |
| TEMP RATING | 60.0 DEG FAHRENHEIT MINIMUM AND 90.0 DEG FAHRENHEIT MAXIMUM |
| MAXIMUM INLET PRESSURE RATING | 100.0 POUNDS PER SQUARE INCH |
| FURNISHED ITEMS | UNION NUT AND TAILPIECE AND ADJUSTMENT STEM |
| SPECIAL FEATURES | VALVE CAPACITY: 18 GPM; VALVE FAILS WITH 95% FLOW TO COOLER; THIS VALVE HAS THERMOSTATIC ASSEMBLY P/N 50002-05, NSN 4820-01-232-2900, FIND 3 (GASKET), FIND 4 (BULB BUSHING), FIND 36 (3 TAILPIECES WITHOUT BRAZING RINGS), FIND 37 (3 UNION NUTS). |
| SPECIFICATION/STANDARD DATA | 81349-MIL-V-19772 GOVERNMENT SPECIFICATION |
| NONDEFINITIVE SPEC/STD DATA | 1, STYLE A TYPE |
| III END ITEM IDENTIFICATION | SEAWOLF CLASS SSN |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | 1-1/4" TRAC STYLE A 3-WAY THERMOSTATIC TEMPERATURE REGULATING VALVE |
Restrictions/Controls & Freight Information | NSN 4820-01-518-7401
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-518-7401
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
