NSN 4820-01-502-8493 5602, 01-502-8493, 015028493
Product Details | SAFETY RELIEF VALVE
4820-01-502-8493 A valve designed to automatically release excessive pressures. It is actuated by static pressure upstream of the valve and is used as a safety valve or relief valve, and may be set to close at a predetermined pressure. It is not designed for regulation of continuously fluctuating loads. It may be inline or cartridge (manifold) design. Excludes VALVE (1), RELIEF, PRESSURE AND TEMPERATURE.
Part Alternates: 5602, 4820-01-502-8493, 01-502-8493, 4820015028493, 015028493
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 21 NOV 2002 | 01-502-8493 | 05488 ( VALVE, SAFETY RELIEF ) |
Drawings & Photos | NSN 4820-01-502-8493
Demand History | NSN 4820-01-502-8493
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5602 | 2015-07-191 | 148 | US |
Cross Reference | NSN 4820-01-502-8493
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5602 | 28193 | HENRY TECHNOLOGIES INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-502-8493
Technical Data | NSN 4820-01-502-8493
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON CAST BODY |
| STYLE DESIGNATOR | B7 TEE |
| FLOW CONTROL DEVICE | DISK |
| MEDIA FOR WHICH DESIGNED | REFRIGERANT, FLUORINATED SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 350.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 275.0 DEG FAHRENHEIT SINGLE RESPONSE |
| VALVE OPERATION METHOD | AUTOMATIC |
| CONNECTION TYPE | THREADED INTERNAL BOSS ALL ENDS |

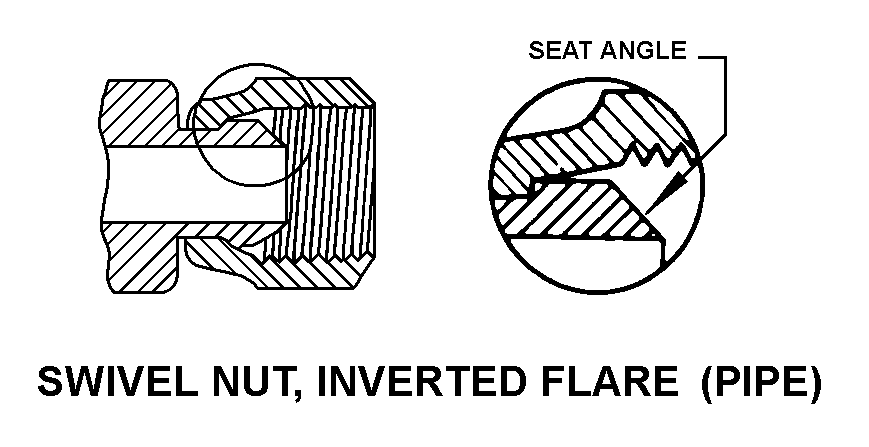

| CONNECTION STYLE | G1B SWIVEL NUT, INVERTED FLARE 1ST END |
| THREAD SERIES DESIGNATOR | NPT ALL ENDS |
Restrictions/Controls & Freight Information | NSN 4820-01-502-8493
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
