NSN 4820-01-502-6865 MH105, MH105 FIND NO.4, MH105FINDNO4
Product Details | VALVE SEAT
4820-01-502-6865 A replaceable item designed to provide a stationary seating surface for a mating, moveable item such as a valve disk or the like. The body may have a flange of various shapes. For diesel and gasoline reciprocating engines, see INSERT, ENGINE VALVE SEAT.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: MH105, MH105 FIND NO.4, MH105FINDNO4, B14532.001.102, B14532.001.102VM, B14532001102, B14532001102VM, 4820-01-502-6865, 01-502-6865, 4820015026865, 015026865
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 18 NOV 2002 | 01-502-6865 | 22113 ( SEAT, VALVE ) |

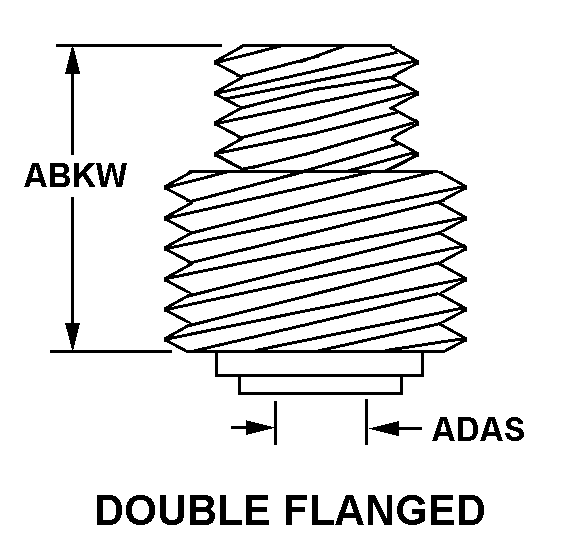

Drawings & Photos | NSN 4820-01-502-6865
Cross Reference | NSN 4820-01-502-6865
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B14532.001.102 | 01343 | ANDERSON GREENWOOD LP DBA ANDERSON GREENWOOD CROSBY |
| B14532.001.102VM | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| MH105 | 01343 | ANDERSON GREENWOOD LP DBA ANDERSON GREENWOOD CROSBY |
| MH105 FIND NO.4 | 01343 | ANDERSON GREENWOOD LP DBA ANDERSON GREENWOOD CROSBY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-01-502-6865
Related Products | NSN 4820-01-502-6865
Technical Data | NSN 4820-01-502-6865
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | B3 DOUBLE THREAD |
| OVERALL HEIGHT | 1.250 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 0.435 INCHES MINIMUM AND 0.750 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 316 SEAT |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A479 TY 316 ASSN STD SINGLE MATERIAL RESPONSE SEAT |
| SEATING SURFACE SHAPE | ANGULAR |
| SEAT ANGLE IN DEG | 30.000 MINIMUM AND 60.000 MAXIMUM |
| SEAT RADIUS | 0.217 INCHES NOMINAL |
| TAPER MINOR DIAMETER | 0.435 INCHES NOMINAL |
| TAPER MAJOR DIAMETER | 0.570 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UN FIRST THREADED PORTION UNEF SECOND THREADED PORTION |
| NOMINAL THREAD SIZE | 0.687 INCHES FIRST THREADED PORTION 1.125 INCHES SECOND THREADED PORTION |
| THREAD QUANTITY PER INCH | 16 FIRST THREADED PORTION |
| THREAD CLASS | 2A FIRST THREADED PORTION 2A SECOND THREADED PORTION |
| THREAD LENGTH | 0.062 INCHES NOMINAL FIRST THREADED PORTION 0.380 INCHES NOMINAL SECOND THREADED PORTION |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | ASDIFFERENTIATED BY: PART REQUIRES SPECIAL MATERIAL CONTROL AND QUALITY ASSURANCE, WHICH SUPPORT THE NON-MAGNETIC SIGNATURE OF MINESWEEPERS. |
| III END ITEM IDENTIFICATION | 1/2 INCH RELIEF VALVE TYPE 1771-T |
| MANUFACTURERS CODE | 01343 |
| DESIGN CONTROL REFERENCE | B14532.001.102 |
Restrictions/Controls & Freight Information | NSN 4820-01-502-6865
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-502-6865
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
