Product Details | FLUID PRESSURE REGULATING VALVE

4820-01-493-8516 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.20248100015Valves, Powered48200018Valves, Nonpowered

Part Alternates: 12421800, 12421800001, 12421800-001, 3560875 , 0011032, 0011-032, 4820-01-493-8516, 01-493-8516, 4820014938516, 014938516

Valves | Valves, Nonpowered

Supply Group (FSG) NSN Assign. NIIN
48 23 JAN 2002 01-493-8516

Drawings & Photos | NSN 4820-01-493-8516


Demand History | NSN 4820-01-493-8516

Part Number Request Date QTY Origin
0011-032 2024-04-109 61 DIBBS
12421800-001 2024-04-109 61 DIBBS
3560875 2024-04-109 61 DIBBS
0011-032 2022-03-90 69 DIBBS
12421800-001 2022-03-90 69 DIBBS
3560875 2022-03-90 69 DIBBS
0011-032 2022-02-38 16 DIBBS
12421800-001 2022-02-38 16 DIBBS
3560875 2022-02-38 16 DIBBS
0011-032 2022-01-26 16 DIBBS
12421800-001 2022-01-26 16 DIBBS
3560875 2022-01-26 16 DIBBS
12421800-001 2022-01-02 15 DIBBS
3560875 2022-01-02 15 DIBBS
12421800-001 2016-04-110 100 US
4820-01-493-8516 2015-02-48 66 DIBBS
4820-01-493-8516 2015-01-01 34 DIBBS
4820-01-493-8516 2013-05-135 15 DIBBS
4820-01-493-8516 2011-09-259 10 DIBBS
4820-01-493-8516 2011-02-53 4 DIBBS
4820-01-493-8516 2011-02-34 5 DIBBS
4820-01-493-8516 2010-09-257 3 DIBBS
4820-01-493-8516 2010-01-20 3 DIBBS
4820-01-493-8516 2009-11-316 13 DIBBS
4820-01-493-8516 2009-03-70 15 DIBBS
4820-01-493-8516 2009-01-13 5 DIBBS

Cross Reference | NSN 4820-01-493-8516

Part Number Cage Code Manufacturer
0011-032 91561 PARKER HANNIFIN CORPORATION DBA QUICK COUPLING DIV DIV QUICK
12421800 19207 U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
12421800-001 0FW39 BAE SYSTEMS TACTICAL VEHICLE SYSTEMS LP
12421800-001 19207 U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
3560875 45152 OSHKOSH CORPORATION
3560875 75Q65 OSHKOSH DEFENSE, LLC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4820-01-493-8516

Technical Data | NSN 4820-01-493-8516

Characteristic Specifications
BODY MATERIAL ALUMINUM
END CONNECTION QUANTITY 3
FIRST END CONNECTION TYPE PLAIN FACE FLANGE

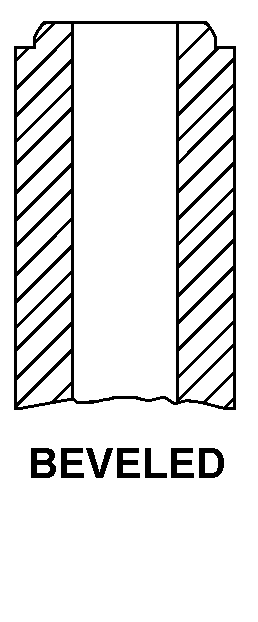

FIRST END STYLE DESIGNATOR E6 PLAIN BEVELED
FIRST END FLANGE SHAPE STYLE 1 HEXAGON
FIRST END BOLT HOLE QUANTITY 4
SECOND END RELATIONSHIP WITH FIRST END IDENTICAL
THIRD END RELATIONSHIP WITH PRECEDING ENDS IDENTICAL WITH FIRST END
BODY STYLE A2 TEE
FACE TO FACE DISTANCE 148.000 MILLIMETERS NOMINAL
FIRST CONNECTION FACE TO CENTERLINE DISTANCE 74.000 MILLIMETERS NOMINAL
MEDIA FOR WHICH DESIGNED OIL
MOUNTING FACILITY BOLTS
MAXIMUM INLET PRESSURE RATING 250.0 POUNDS PER SQUARE INCH
OUTLET PRESSURE SETTING 50.0 POUNDS PER SQUARE INCH
OUTLET PRESSURE ACCURACY RATING NOT RATED
FILTER NOT INCLUDED
SPECIAL FEATURES NHA TRUCK, CARGO 2320-01-447-3890
III END ITEM IDENTIFICATION FAMILY OF MEDIUM TACTICAL VEHICLES
