NSN 4820-01-482-4092 2352-1321ACL 1., 2352-1321ACL 1-1/2 IN, 23521321ACL1
Product Details | CALIBRATED FLOW VALVE
4820-01-482-4092 A valve specifically designed to automatically maintain a predetermined discharge flow rate which may be adjustable within a specific range. It is designed to be used with various fluids and may be preset and/or adjustable. It may be in-line or cartridge (manifold) design. Excludes VALVE, REGULATING, FEED WATER; VALVE, REGULATING, FLUID PRESSURE; VALVE, REGULATING, FUEL OIL; VALVE, REGULATING, OIL PRESSURE, AUTOMATIC PILOT; VAVLE, REGULATING, TEMPERATURE; VALVE, ANGLE; and VALVE, GLOBE.
Part Alternates: 2352-1321ACL 1., 2352-1321ACL 1-1/2 IN, 23521321ACL1, 23521321ACL112IN, 2764C, 2764-C, 2764-C ASSY 2352-1321ACL 1-1/2" , 2764-C ASSY 2352-1321ACL 1-1/2inch, 2764CASSY23521321ACL112, 2764CASSY23521321ACL112inch, 4820-01-482-4092, 01-482-4092, 4820014824092, 014824092
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 21 FEB 2001 | 01-482-4092 | 33212 ( VALVE, CALIBRATED FLOW ) |
Drawings & Photos | NSN 4820-01-482-4092
Cross Reference | NSN 4820-01-482-4092
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2352-1321ACL 1-1/2 IN | 90800 | ROMAC INDUSTRIES, INC. DBA HAYS FLUID CONTROL DIVISION |
| 2352-1321ACL 1. | 90800 | ROMAC INDUSTRIES, INC. DBA HAYS FLUID CONTROL DIVISION |
| 2764-C | 90800 | ROMAC INDUSTRIES, INC. DBA HAYS FLUID CONTROL DIVISION |
| 2764-C ASSY 2352-1321ACL 1-1/2" | 90800 | ROMAC INDUSTRIES, INC. DBA HAYS FLUID CONTROL DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-482-4092
Technical Data | NSN 4820-01-482-4092
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | COPPER ALLOY |
| FLOW CONTROL DEVICE | DIAPHRAGM |
| FLOW CONTROL DEVICE MATERIAL | RUBBER, BUNA-N |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | UNTHREADED INTERNAL PIPE |

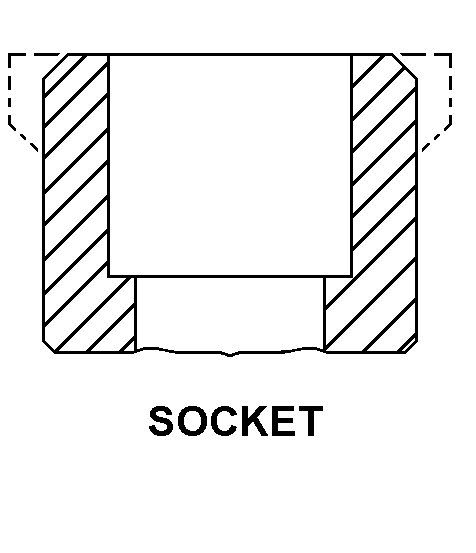

| FIRST END STYLE DESIGNATOR | C1 SOCKET |
| FIRST END NOMINAL PIPE SIZE ACCOMMODATED | 1.250 INCHES |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| BODY STYLE | A1 STRAIGHT THRU |
| MEDIA FOR WHICH DESIGNED | WATER |
| REGULATION TYPE | AUTOMATIC SINGLE STAGE |
| TEMP RATING | 160.0 DEG CELSIUS NOMINAL |
| VALVE DISCHARGE FLOW RATE | 24.0 GALLONS PER MINUTE |
| FURNISHED ITEMS | TAILPIECE W/GROOVES AND UNION NUT |
Restrictions/Controls & Freight Information | NSN 4820-01-482-4092
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-482-4092
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
