NSN 4820-01-481-4424 DERVA003000, DE-RVA-00-3000, 01-481-4424
Product Details | SAFETY RELIEF VALVE
4820-01-481-4424 A valve designed to automatically release excessive pressures. It is actuated by static pressure upstream of the valve and is used as a safety valve or relief valve, and may be set to close at a predetermined pressure. It is not designed for regulation of continuously fluctuating loads. It may be inline or cartridge (manifold) design. Excludes VALVE (1), RELIEF, PRESSURE AND TEMPERATURE.
Part Alternates: DERVA003000, DE-RVA-00-3000, 4820-01-481-4424, 01-481-4424, 4820014814424, 014814424
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 08 JAN 2001 | 01-481-4424 | 05488 ( VALVE, SAFETY RELIEF ) |
Drawings & Photos | NSN 4820-01-481-4424
Cross Reference | NSN 4820-01-481-4424
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DE-RVA-00-3000 | 30058 | DELTA POWER HYDRAULIC CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-481-4424
Technical Data | NSN 4820-01-481-4424
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | C6 STRAIGHT THRU |
| FLOW CONTROL DEVICE | POPPET |
| MEDIA FOR WHICH DESIGNED | HYDRAULIC FLUID, PETROLEUM BASE SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 4000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 93.3 DEG CELSIUS SINGLE RESPONSE |
| VALVE DISCHARGE FLOW RATE | 38.0 LITERS PER MINUTE |
| VALVE OPERATION METHOD | AUTOMATIC |
| CONNECTION TYPE | THREADED EXTERNAL TUBE ALL ENDS |

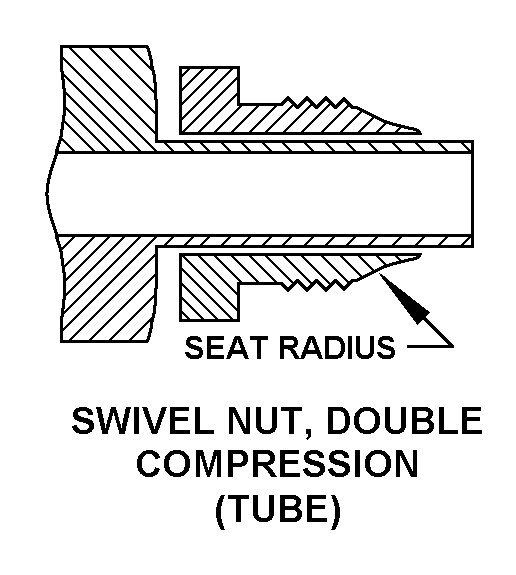

| CONNECTION STYLE | G52 SWIVEL NUT, DOUBLE COMPRESSION 1ST END |
| NOMINAL LENGTH | 31.75 MILLIMETERS 1ST END |
| THREAD SERIES DESIGNATOR | UNF 1ST END |
| NOMINAL THREAD SIZE | 0.875 INCHES 1ST END |
| THREAD QUANTITY PER INCH | 14 1ST END |
| THREAD CLASS | 2B 1ST END |
| THREAD DIRECTION | RIGHT-HAND 1ST END |
Restrictions/Controls & Freight Information | NSN 4820-01-481-4424
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
