NSN 4820-01-470-0414 B10-1114B-02TSG P2-45421-G01 , B101114B02TSGP245421G01, B101114B02TSP245421G01IT001
Product Details | CHECK VALVE
4820-01-470-0414 A valve permitting flow in one direction only. It does not have a stem, except when equipped with a lever and weight and has no pressure adjustment. It may be inline or cartridge (manifold) design.
Part Alternates: B10-1114B-02TSG P2-45421-G01 , B101114B02TSGP245421G01, B101114B02TSP245421G01IT001, P245421G01, P2-45421-G01, 7492737, 7492-737, 4820-01-470-0414, 01-470-0414, 4820014700414, 014700414
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 06 DEC 1999 | 01-470-0414 | 05487 ( VALVE, CHECK ) |
Drawings & Photos | NSN 4820-01-470-0414
Demand History | NSN 4820-01-470-0414
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| B10-1114B-02TSG P2-45421-G01 | 2024-01-04 | 2 | DIBBS |
| P2-45421-G01 | 2024-01-04 | 2 | DIBBS |
| 4820-01-470-0414 | 2017-12-362 | 2 | DIBBS |
| 4820-01-470-0414 | 2014-06-181 | 17 | DIBBS |
| 4820-01-470-0414 | 2014-06-167 | 17 | DIBBS |
| 4820-01-470-0414 | 2014-04-97 | 8 | DIBBS |
| 4820-01-470-0414 | 2014-03-86 | 8 | DIBBS |
| 4820-01-470-0414 | 2011-03-74 | 2 | DIBBS |
Cross Reference | NSN 4820-01-470-0414
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7492-737 | 57574 | VELAN VALVE CORPORATION DIV VELAN VALVE CORPORATION |
| B10-1114B-02TS,P245421G01IT001 | 57574 | VELAN VALVE CORPORATION DIV VELAN VALVE CORPORATION |
| B10-1114B-02TSG P2-45421-G01 | 57574 | VELAN VALVE CORPORATION DIV VELAN VALVE CORPORATION |
| P2-45421-G01 | 57574 | VELAN VALVE CORPORATION DIV VELAN VALVE CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-01-470-0414
Related Products | NSN 4820-01-470-0414
Technical Data | NSN 4820-01-470-0414
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BODY |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A105 ASSN STD SINGLE MATERIAL RESPONSE BODY |
| STYLE DESIGNATOR | A2A STRAIGHT THRU FLANGED ENDS |
| VALVE SIZE | 3.000 INCHES |
| FACE TO FACE DISTANCE | 12.5000 INCHES |
| FLOW CONTROL DEVICE | DISK |
| MEDIA FOR WHICH DESIGNED | STEAM SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 300.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 775.0 DEG FAHRENHEIT SINGLE RESPONSE |
| VALVE OPERATION METHOD | AUTOMATIC |
| CONNECTION TYPE | BUTT WELD PIPE ALL ENDS |

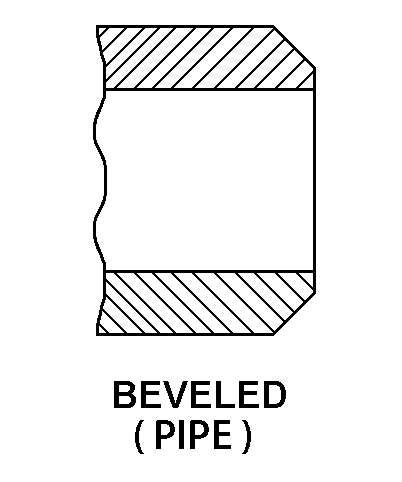

| CONNECTION STYLE | B72B BEVELED ALL ENDS |
| NOMINAL PIPE SIZE ACCOMMODATED | 3.000 INCHES ALL ENDS |
| MOUNTING POSITION | HORIZONTAL |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | 3 IN. PISTON CHECK VALVE,ASME CLASS 300 LB. |
Restrictions/Controls & Freight Information | NSN 4820-01-470-0414
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-470-0414
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
