NSN 4820-01-465-9941 C3658PL1720173112IN5T20, CLASS LN3 1/2" , CLASS LN3 1/2inch
Product Details | FLUID PRESSURE REGULATING VALVE
4820-01-465-9941 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: C3658PL1720173112IN5T20, CLASS LN3 1/2" , CLASS LN3 1/2inch, CLASSLN312, CLASSLN312inch, Y303000203, 12435N, 12435N CLASS LN3 1/2" , 12435N CLASS LN3 1/2inch, 12435NCLASSLN312, 12435NCLASSLN312inch, 37 1/2IN 5T20PS, 3712IN5T20PS, 4820-01-465-9941, 01-465-9941, 4820014659941, 014659941
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 30 JUN 1999 | 01-465-9941 | 27565 ( VALVE, REGULATING, FLUID PRESSURE ) |
Drawings & Photos | NSN 4820-01-465-9941
Demand History | NSN 4820-01-465-9941
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-01-465-9941 | 2014-04-93 | 4 | DIBBS |
| 4820-01-465-9941 | 2014-01-30 | 4 | DIBBS |
| 4820-01-465-9941 | 2013-02-37 | 3 | DIBBS |
| 4820-01-465-9941 | 2010-12-337 | 6 | DIBBS |
| 4820-01-465-9941 | 2010-01-11 | 6 | DIBBS |
Cross Reference | NSN 4820-01-465-9941
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12435N | 35795 | LESLIE CONTROLS, INC. |
| 12435N CLASS LN3 1/2" | 35795 | LESLIE CONTROLS, INC. |
| 37 1/2IN 5T20PS | 35795 | LESLIE CONTROLS, INC. |
| C3658 PL-1720,1731 1/2IN 5T20 | 35795 | LESLIE CONTROLS, INC. |
| CLASS LN3 1/2" | 35795 | LESLIE CONTROLS, INC. |
| Y303000203 | 35795 | LESLIE CONTROLS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-465-9941
Technical Data | NSN 4820-01-465-9941
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | BRONZE |
| FLOW CONTROL DEVICE | DIAPHRAGM |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | PLAIN FACE FLANGE |

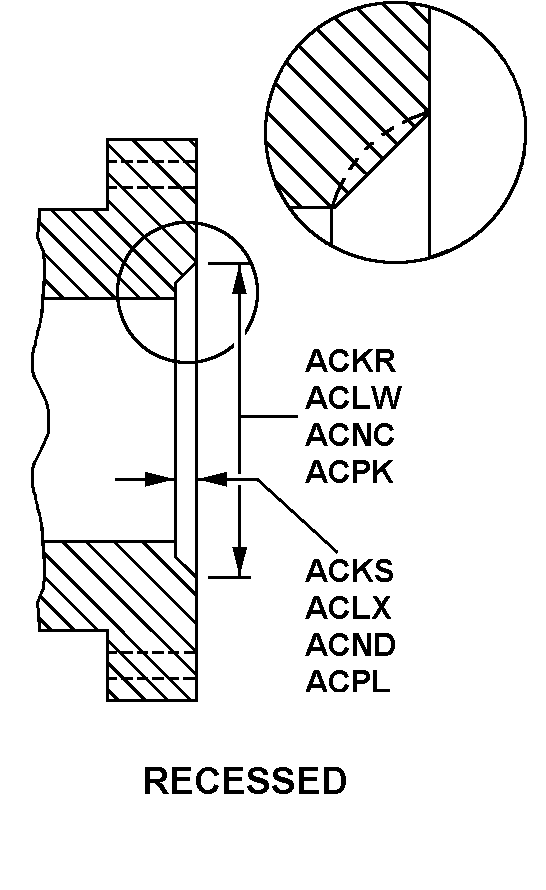

| FIRST END STYLE DESIGNATOR | G9 RECESSED |
| FIRST END RECESS DIAMETER | 0.437 INCHES NOMINAL |
| FIRST END FLANGE SHAPE STYLE | 3 ROUND |
| FIRST END BOLT HOLE QUANTITY | 3 |
| FIRST END FLANGE OUTSIDE DIAMETER | 1.462 INCHES NOMINAL |
| FIRST END BOLT HOLE DIAMETER | 0.562 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| BODY STYLE | A1 STRAIGHT THRU |
| FACE TO FACE DISTANCE | 4.062 INCHES NOMINAL |
| MOUNTING FACILITY | BOLTS |
| REGULATION TYPE | MANUAL SINGLE STAGE |
| VALVE LOADING METHOD | SPRING |
| REMOTE ACTUATION METHOD | DIAPHRAGM |
| SPECIAL FEATURES | NHA VALVE, RED .50 |
Restrictions/Controls & Freight Information | NSN 4820-01-465-9941
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-465-9941
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
