NSN 4820-01-459-6633 157B1125, 01-459-6633, 014596633
Product Details | PRESSURE AND TEMPERATURE RELIEF VALVE
4820-01-459-6633 A valve designed to release under excessive pressure and/or excessive temperature by opening at a predetermined pressure and/or temperature. Thermostatically operated valves close when the pressure is relieved or the temperature is reduced. Fusible plug valves require replacement of the plug. See also VALVE, SAFETY RELIEF and VALVE, REGULATING. TEMPERATURE.
Part Alternates: 157B1125, 4820-01-459-6633, 01-459-6633, 4820014596633, 014596633
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 09 OCT 1998 | 01-459-6633 | 16996 ( VALVE, RELIEF, PRESSURE AND TEMPERATURE ) |
Drawings & Photos | NSN 4820-01-459-6633
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-01-459-6633
Related Products | NSN 4820-01-459-6633
Technical Data | NSN 4820-01-459-6633
| Characteristic | Specifications |
|---|---|
| BODY STYLE | B10 MULTIPLE CONNECTION |
| BODY MATERIAL | STEEL |
| FLOW CONTROL DEVICE | ANY ACCEPTABLE |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | UNTHREADED EXTERNAL TUBE |

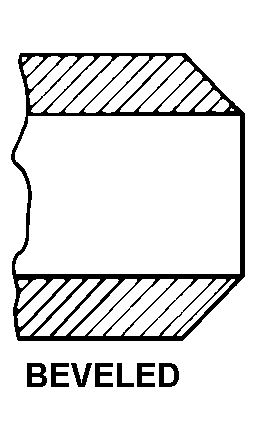

| FIRST END STYLE DESIGNATOR | L1 BEVELED |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.750 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| TEMP ADJUSTABILITY | NOT ADJUSTABLE |
| TEMP RATING | -50.0 DEG CELSIUS |
| VALVE DISCHARGE FLOW RATE | 300.0 POUNDS PER HOUR |
| TEMP CONTROL DEVICE TYPE | FUSIBLE |
| III END ITEM IDENTIFICATION | END ITEM:2320-01-392-0293 |
Restrictions/Controls & Freight Information | NSN 4820-01-459-6633
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-459-6633
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
