NSN 4820-01-456-1478 1661-D PART 1661-D-37, 1661-D PC37, 1661DPART1661D37
Product Details | VALVE STEM GUIDE
4820-01-456-1478 A replaceable cylindrical item designed to provide wear surface and maintain alignment of a reciprocating valve stem and the like, it may have a flange(s) and/or grooves.20728050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components43100028Compressors and Vacuum Pumps45100033Plumbing Fixtures and Accessories48100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 1661-D PART 1661-D-37, 1661-D PC37, 1661DPART1661D37, 1661DPC37, 914, 4820-01-456-1478, 01-456-1478, 4820014561478, 014561478
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 02 JUN 1998 | 01-456-1478 | 32562 ( GUIDE, VALVE STEM ) |

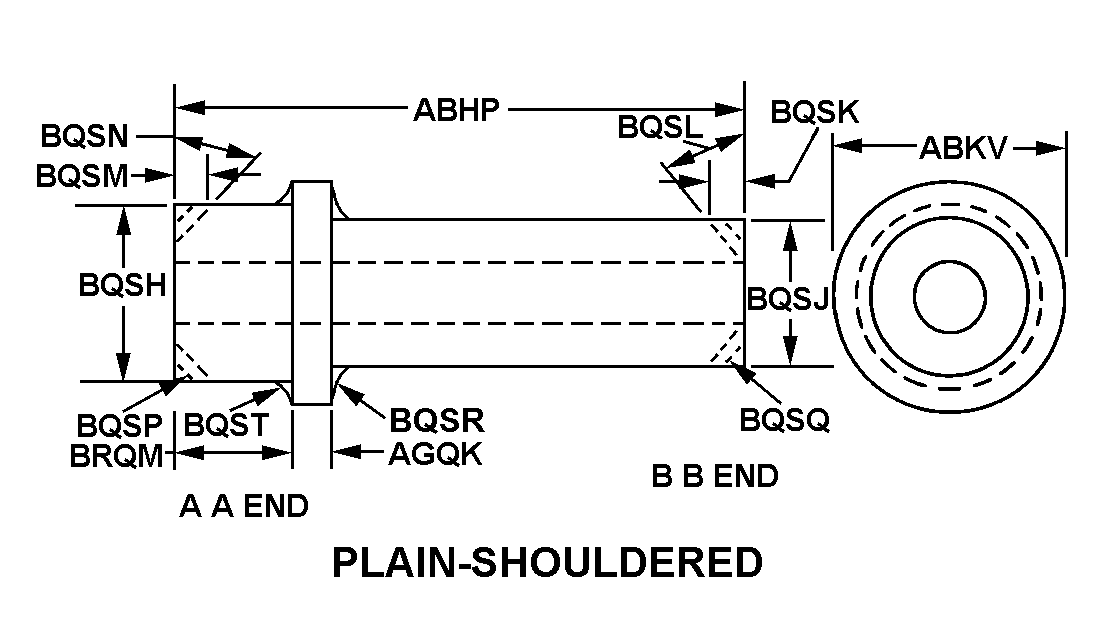

Drawings & Photos | NSN 4820-01-456-1478
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-456-1478
Technical Data | NSN 4820-01-456-1478
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| STYLE DESIGNATOR | H11 PLAIN-SHOULDERED |
| OVERALL LENGTH | 1.281 INCHES NOMINAL |
| OUTSIDE DIAMETER | 2.335 INCHES NOMINAL |
| AA END DIAMETER | 1.875 INCHES NOMINAL |
| BB END SHANK DIAMETER | 1.562 INCHES NOMINAL |
| SPECIAL FEATURES | FOR TEMPERATURE REGULATING VALVE SZ 1.250 TYPE S |
| III END ITEM IDENTIFICATION | NIMITZ CLASS CVN |
Restrictions/Controls & Freight Information | NSN 4820-01-456-1478
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-456-1478
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
