NSN 4820-01-454-9941 1146208F0003, 1146-208-F-0003, 1146208S
Product Details | GATE VALVE
4820-01-454-9941 A valve having a flat or tapered disk (gate) which moves transversely to the axis of flow by rotating or sliding movements of the stem to open or close the orifice. It may also contain an oval or rectangular shaped slide which may be manually, motor, or pressure operated through the means of an arm or arm assembly. The body flange may be designed to accommodate tube type connectors. It may or may not contain thermal relief features. Includes valve (gate) specifically designed for the control of fluid systems in aircraft or missiles.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 1146208F0003, 1146-208-F-0003, 1146208S, 1146-208S, 1146-208S 1IN W, 1146208S1INW, 4820-01-454-9941, 01-454-9941, 4820014549941, 014549941
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 18 APR 1998 | 01-454-9941 | 05482 ( VALVE, GATE ) |

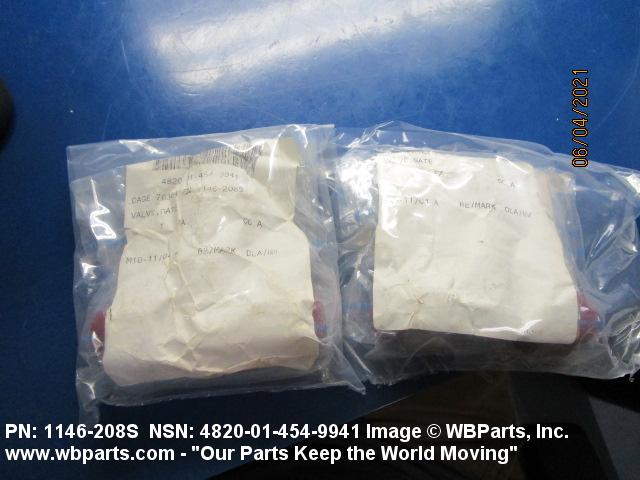

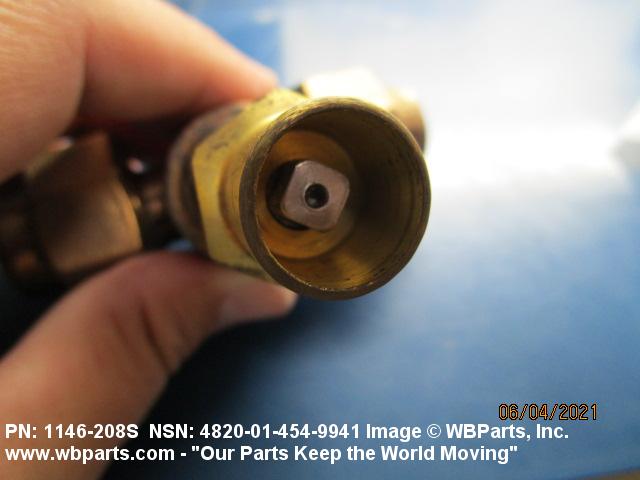

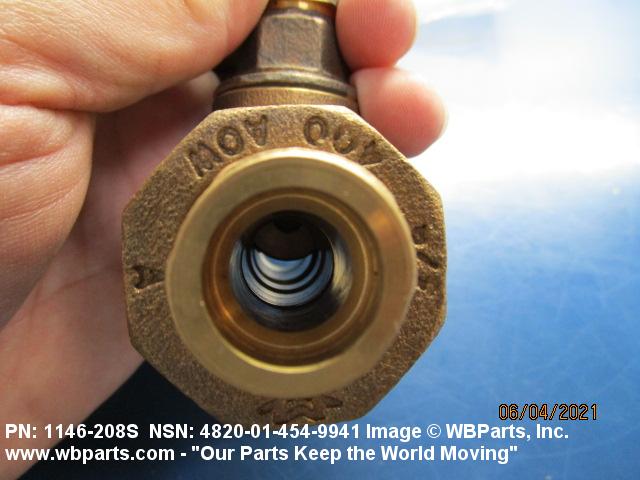

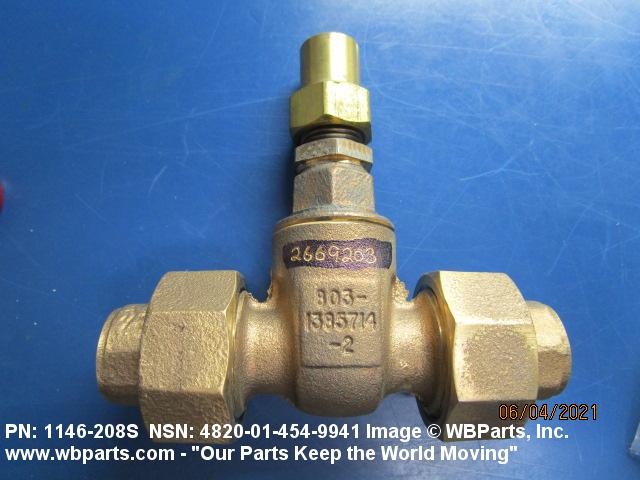

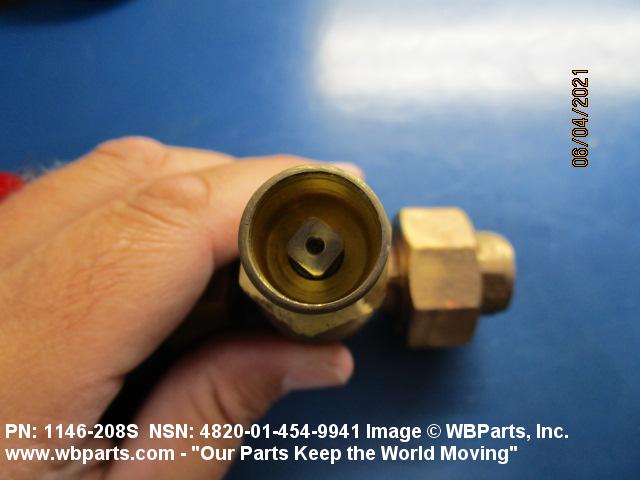

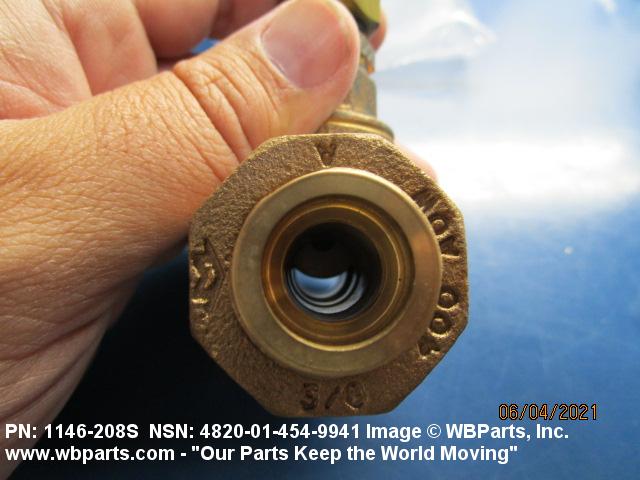

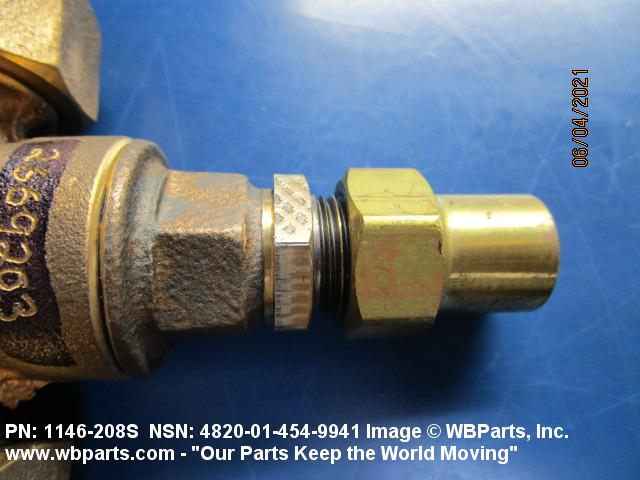

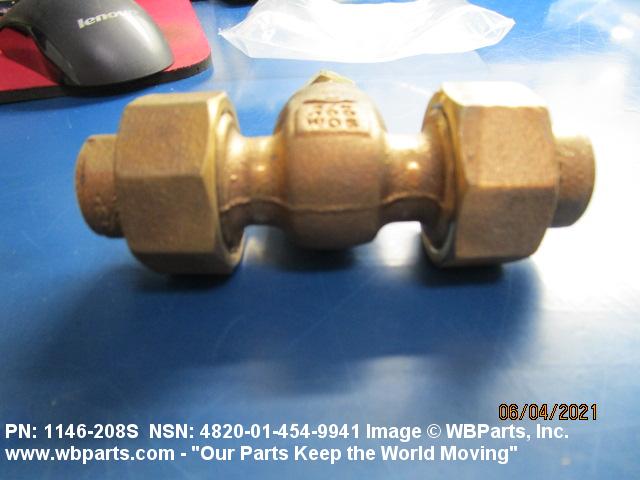

Drawings & Photos | NSN 4820-01-454-9941
Demand History | NSN 4820-01-454-9941
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1146-208-F-0003 | 2022-02-46 | 4 | DIBBS |
| 1146-208S 100 | 2022-02-46 | 4 | DIBBS |
| 4820-01-454-9941 | 2021-05-148 | 2 | US |
| 1146-208-F-0003 | 2021-04-98 | 5 | DIBBS |
| 1146-208S 100 | 2021-04-98 | 5 | DIBBS |
| 1146-208-F-0003 | 2021-04-95 | 1 | DIBBS |
| 1146-208S 100 | 2021-04-95 | 1 | DIBBS |
| 1146-208-F-0003 | 2021-02-54 | 1 | DIBBS |
| 1146-208S | 2021-02-54 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-454-9941
Technical Data | NSN 4820-01-454-9941
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY BODY NICKEL ALLOY STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM B61 ASSN STD SINGLE MATERIAL RESPONSE BODY ASTM B-164 ASSN STD SINGLE MATERIAL RESPONSE STEM |
| VALVE SIZE | 1.000 INCHES |
| MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 400.0 POUNDS PER SQUARE INCH WATER-OIL-GAS |
| MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | 150.0 DEG FAHRENHEIT WATER-OIL-GAS |
| VALVE OPERATION METHOD | MANUAL |
| INLET RELATIONSHIP WITH OUTLET | IDENTICAL |
| CONNECTION TYPE | BRAZING, PIPE |
| NOMINAL PIPE SIZE ACCOMMODATED | 1.000 INCHES |
| FURNISHED ITEMS AND QUANTITY | 1 LOCKING DEVICE |
Restrictions/Controls & Freight Information | NSN 4820-01-454-9941
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-454-9941
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
