Product Details | GLOBE VALVE
4820-01-433-2639 A valve with one inlet and one outlet connection with outlet flow parallel to inlet flow. The flow is controlled by the action of a stem which lifts the disk perpendicularly off the center axis of its seat. The stem is at a 90 degree (1.5708 radians) angle to axis of flow. Excludes VALVE, STOP-CHECK; COCK, SHUTOFF, SCREW STEM; and VALVE, SOLENOID.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 1385623, 80313856230251, 803-1385623-0251, 4820-01-433-2639, 01-433-2639, 4820014332639, 014332639
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 25 JUN 1996 | 01-433-2639 | 05485 ( VALVE, GLOBE ) |
Drawings & Photos | NSN 4820-01-433-2639
Demand History | NSN 4820-01-433-2639
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-01-433-2639 | 2013-06-156 | 3 | DIBBS |
| 4820-01-433-2639 | 2013-05-150 | 1 | DIBBS |
| 4820-01-433-2639 | 2009-08-219 | 2 | DIBBS |
| 4820-01-433-2639 | 2009-07-191 | 3 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-433-2639
Technical Data | NSN 4820-01-433-2639
| Characteristic | Specifications |
|---|---|
| MATERIAL | BRONZE OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM-B61 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |

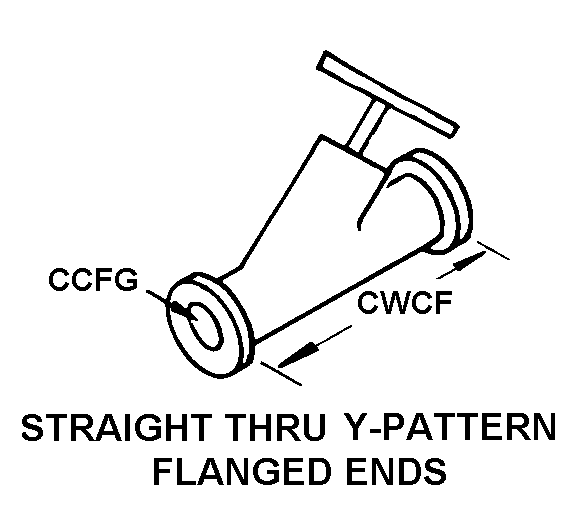

| STYLE DESIGNATOR | A8A STRAIGHT THRU Y-PATTERN FLANGED ENDS |
| FACE TO FACE DISTANCE | 9.000 INCHES |
| VALVE SIZE | 2.500 INCHES |
| FLOW CONTROL DEVICE | DISK |
| MEDIA FOR WHICH DESIGNED | WATER-OIL-GAS SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 250.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 160.0 DEG FAHRENHEIT SINGLE RESPONSE |
| VALVE OPERATION METHOD | MANUAL |
| CONNECTION TYPE | FLANGE ALL ENDS |
| FLANGE SHAPE | ROUND WITH HOLES ALL ENDS |
| NOMINAL OUTSIDE DIAMETER | 6.125 INCHES ALL ENDS |
| NOMINAL THICKNESS | 0.938 INCHES ALL ENDS |
| BOLT HOLE QUANTITY | 4 ALL ENDS |
| BOLT HOLE NOMINAL DIAMETER | 0.688 INCHES ALL ENDS |
| BOLT CIRCLE NOMINAL DIAMETER | 5.000 INCHES ALL ENDS |
| FLANGE FACE DESIGN | PLAIN ALL ENDS |
| BONNET TYPE | OUTSIDE SCREW-YOKE |
| BONNET ATTACHMENT METHOD | BOLTED |
| FURNISHED ITEMS AND QUANTITY | 1 HANDWHEEL |
| MINIMUM OPERATING TEMP | 0.0 DEG FAHRENHEIT |
| III END ITEM IDENTIFICATION | WASP CLASS LHD |
