NSN 4820-01-419-2549 1385623-NN-5 6IN, 1385623NN56IN, 01-419-2549
Product Details | Y VALVE
4820-01-419-2549 A valve with one inlet and one outlet connection that provides unobstructed fluid flow. The flow is controlled by the action of a stem which lifts disk perpendicularly off center axis of its seat. The stem is at angle of less than 90 degrees (1.5708 radians) to parallel inlet and outlet flow. It may utilize a diaphragm as packing. Excludes VALVE, STOP-CHECK.
Part Alternates: 1385623-NN-5 6IN, 1385623NN56IN, 4820-01-419-2549, 01-419-2549, 4820014192549, 014192549
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 18 SEP 1995 | 01-419-2549 | 16992 ( VALVE, Y ) |
Drawings & Photos | NSN 4820-01-419-2549
Demand History | NSN 4820-01-419-2549
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1030-031P 600 | 2021-04-98 | 1 | DIBBS |
| 4820-01-419-2549 | 2018-05-143 | 3 | DIBBS |
| 4820-01-419-2549 | 2018-05-133 | 1 | DIBBS |
| 4820-01-419-2549 | 2016-10-286 | 1 | DIBBS |
| 4820-01-419-2549 | 2016-10-285 | 2 | DIBBS |
| 4820-01-419-2549 | 2016-09-273 | 2 | DIBBS |
| 4820-01-419-2549 | 2016-04-108 | 1 | DIBBS |
| 4820-01-419-2549 | 2010-09-244 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-419-2549
Technical Data | NSN 4820-01-419-2549
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY BODY NICKEL ALLOY FLOW CONTROL DEVICE NICKEL ALLOY SEAT |

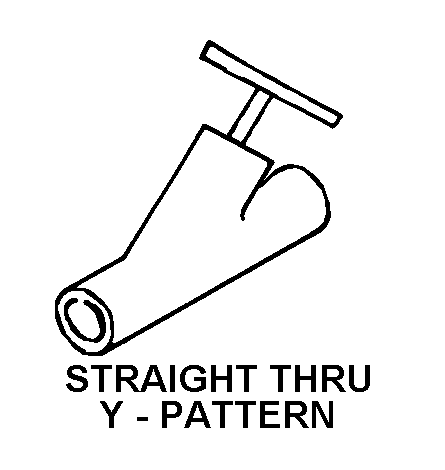

| STYLE DESIGNATOR | A8 STRAIGHT THRU Y-PATTERN |
| FLOW CONTROL DEVICE | DISK |
| MAXIMUM OPERATING PRESSURE | 250.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| VALVE OPERATION METHOD | AIR |
| SPECIAL FEATURES | VALVE SIZE 6 IN. |
| III END ITEM IDENTIFICATION | NIMITZ CLASS CVN |
Restrictions/Controls & Freight Information | NSN 4820-01-419-2549
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-419-2549
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
