NSN 4820-01-406-8874 SS62TMS6, 01-406-8874, 014068874
Product Details | BALL VALVE
4820-01-406-8874 A multi-ported, nonlubricated valve designed to provide straight through flow or ability to direct a number of flows or pressure through a single valve. The flow is controlled by the rotation of a ported ball within a suitable ported seat(s). The ball is usually engaged by a stem. It is normally operated in an open or closed position. Excludes VALVE, CHECK.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: SS62TMS6, 4820-01-406-8874, 01-406-8874, 4820014068874, 014068874
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 13 JAN 1995 | 01-406-8874 | 20962 ( VALVE, BALL ) |
Drawings & Photos | NSN 4820-01-406-8874
Demand History | NSN 4820-01-406-8874
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| SS62TMS6 | 2020-11-307 | 32 | DIBBS |
| SS62TMS6 | 2020-10-294 | 32 | DIBBS |
| SS62TMS6 | 2019-10-290 | 14 | DIBBS |
| 4820-01-406-8874 | 2018-12-347 | 14 | DIBBS |
| 4820-01-406-8874 | 2018-03-88 | 14 | DIBBS |
| 4820-01-406-8874 | 2015-10-277 | 15 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-406-8874
Technical Data | NSN 4820-01-406-8874
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING BODY PLASTIC TETRAFLUOROETHYLENE SEAT |
| STYLE DESIGNATOR | A1 STRAIGHT THRU |
| VALVE OPERATION METHOD | MANUAL |
| CONNECTION TYPE | THREADED INTERNAL BOSS ALL ENDS |

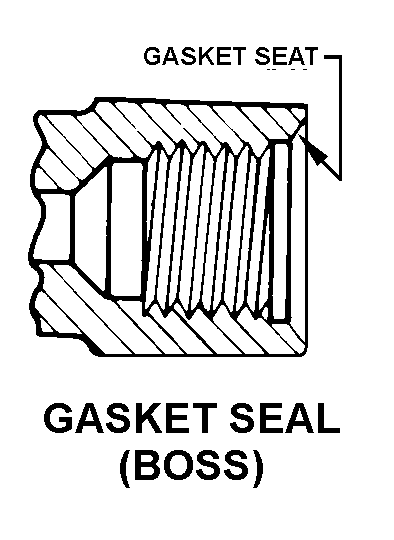

| CONNECTION STYLE | G4 GASKET SEAL ALL ENDS |
| THREAD SERIES DESIGNATOR | UNF ALL ENDS |
| NOMINAL THREAD SIZE | 0.562 INCHES ALL ENDS |
| THREAD CLASS | 2B ALL ENDS |
| THREAD DIRECTION | RIGHT-HAND ALL ENDS |
Restrictions/Controls & Freight Information | NSN 4820-01-406-8874
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-406-8874
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
