NSN 4820-01-406-8794 3007857, 750-RP-3.0/BK, 750RP30BK
Product Details | SAFETY RELIEF VALVE
4820-01-406-8794 A valve designed to automatically release excessive pressures. It is actuated by static pressure upstream of the valve and is used as a safety valve or relief valve, and may be set to close at a predetermined pressure. It is not designed for regulation of continuously fluctuating loads. It may be inline or cartridge (manifold) design. Excludes VALVE (1), RELIEF, PRESSURE AND TEMPERATURE.
Part Alternates: 3007857, 750-RP-3.0/BK, 750RP30BK, 4820-01-406-8794, 01-406-8794, 4820014068794, 014068794
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 13 JAN 1995 | 01-406-8794 | 05488 ( VALVE, SAFETY RELIEF ) |
Drawings & Photos | NSN 4820-01-406-8794
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-01-406-8794
Related Products | NSN 4820-01-406-8794
Technical Data | NSN 4820-01-406-8794
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2011 BODY ALUMINUM ALLOY 2011 AND RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR FLOW CONTROL DEVICE ALUMINUM ALLOY 2011 SEAT |
| STYLE DESIGNATOR | C4 STRAIGHT THRU |
| FLOW CONTROL DEVICE | POPPET |
| MEDIA FOR WHICH DESIGNED | AIR SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 3.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 300.0 DEG FAHRENHEIT SINGLE RESPONSE |
| VALVE OPERATION METHOD | AUTOMATIC |
| CONNECTION TYPE | THREADED EXTERNAL BOSS ALL ENDS |

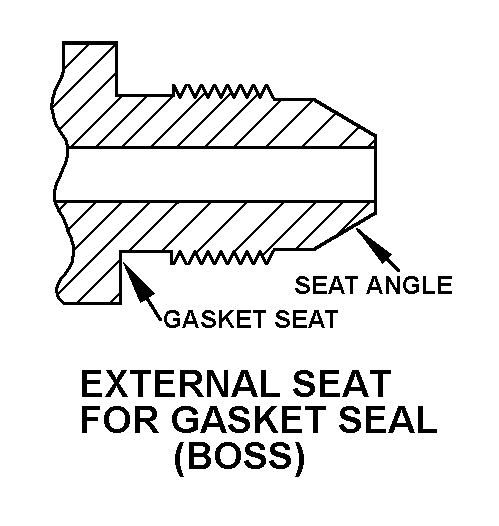

| CONNECTION STYLE | G43 EXTERNAL SEAT FOR GASKET SEAL ALL ENDS |
| SEAT ANGLE | 37.0 DEGREES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNF ALL ENDS |
| NOMINAL THREAD SIZE | 0.563 INCHES ALL ENDS |
| THREAD CLASS | 3A ALL ENDS |
| THREAD DIRECTION | RIGHT-HAND ALL ENDS |
| BONNET TYPE | INSIDE SCREW |
| BONNET ATTACHMENT METHOD | INTEGRAL |
| DISK LOADING METHOD | SPRING |
| OPENING PRESSURE SETTING | 3.0 POUNDS PER SQUARE INCH |
| SPECIAL FEATURES | ANODIZE MIL-A-8625, TYPE II BLACK |
| III END ITEM IDENTIFICATION | 6685-01-356-6542 |
