Product Details | SAFETY RELIEF VALVE
4820-01-399-5689 A valve designed to automatically release excessive pressures. It is actuated by static pressure upstream of the valve and is used as a safety valve or relief valve, and may be set to close at a predetermined pressure. It is not designed for regulation of continuously fluctuating loads. It may be inline or cartridge (manifold) design. Excludes VALVE (1), RELIEF, PRESSURE AND TEMPERATURE.
Part Alternates: M24694/1-E-IN, M246941EIN, 8016405539FN272, 801-6405539-FN-27-2, 8016405539FN322, 801-6405539-FN-32-2, 4820-01-399-5689, 01-399-5689, 4820013995689, 013995689, 211082011
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 30 NOV 1994 | 01-399-5689 | 05488 ( VALVE, SAFETY RELIEF ) |

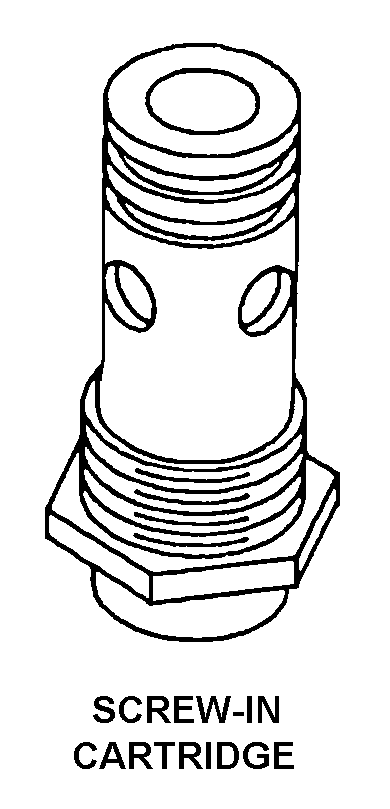

Drawings & Photos | NSN 4820-01-399-5689
Demand History | NSN 4820-01-399-5689
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-01-399-5689 | 2017-04-116 | 3 | DIBBS |
| 4820-01-399-5689 | 2017-03-90 | 3 | us |
| 4820-01-399-5689 | 2017-03-89 | 3 | DIBBS |
| 4820-01-399-5689 | 2015-06-152 | 1 | DIBBS |
| 4820-01-399-5689 | 2014-10-296 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-399-5689
Technical Data | NSN 4820-01-399-5689
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING BODY |
| STYLE DESIGNATOR | C10 SCREW-IN CARTRIDGE |
| MAXIMUM OPERATING TEMP | 135.0 DEG CELSIUS SINGLE RESPONSE |
| VALVE DISCHARGE FLOW RATE | 150.0 LITERS PER MINUTE |
| VALVE OPERATION METHOD | AUTOMATIC |
| CONNECTION TYPE | THREADED CARTRIDGE ALL ENDS |
| CONNECTION STYLE | G50 EXTERNAL SEAT FOR GASKET SEAL ALL ENDS |
| THREAD SERIES DESIGNATOR | UN ALL ENDS |
| NOMINAL THREAD SIZE | 2.250 INCHES ALL ENDS |
| THREAD QUANTITY PER INCH | 12 ALL ENDS |
| THREAD CLASS | 3A ALL ENDS |
| THREAD DIRECTION | RIGHT-HAND ALL ENDS |
| ADJUSTABLE PRESSURE RANGE | 7.0 TO 10.0 BAR |
| MINIMUM OPERATING TEMP | -40.0 DEG CELSIUS |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M24694/1-E-IN |
