Product Details | EXPANSION VALVE

4820-01-398-3422 A self-acting valve specifically designed for use in refrigeration systems for continual control of rate of flow of refrigerant. It may be actuated by a thermostatic element or self-actuated.

Part Alternates: ZZC11/2HW1002B, ZZC112HW1002B, 4820-01-398-3422, 01-398-3422, 4820013983422, 013983422

Valves | Valves, Nonpowered

Supply Group (FSG) NSN Assign. NIIN
48 31 OCT 1994 01-398-3422

Drawings & Photos | NSN 4820-01-398-3422


Demand History | NSN 4820-01-398-3422

Part Number Request Date QTY Origin
ZZC11/2HW1002B 2023-06-164 1 DIBBS
ZZC11/2HW1002B 2022-10-278 1 DIBBS
ZZC11/2HW1002B 2022-10-276 1 DIBBS
ZZC11/2HW1002B 2020-12-362 1 DIBBS
4820-01-398-3422 2013-10-304 2 DIBBS

Cross Reference | NSN 4820-01-398-3422

Part Number Cage Code Manufacturer
ZZC11/2HW1002B 70255 EMERSON ELECTRIC CO ALCO CONTROLS DIV

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4820-01-398-3422

Technical Data | NSN 4820-01-398-3422

Characteristic Specifications
BODY STYLE C1 STRAIGHT THRU
BODY MATERIAL BRASS
END CONNECTION QUANTITY 3
FIRST END CONNECTION TYPE UNTHREADED INTERNAL TUBE

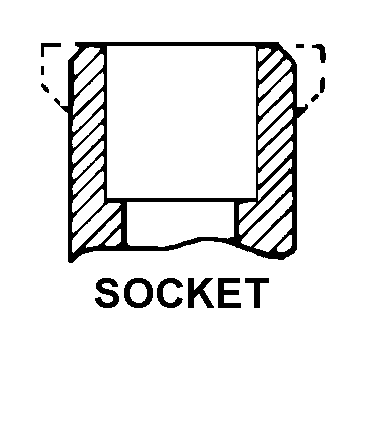

FIRST END STYLE DESIGNATOR H1 SOCKET
FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED 0.250 INCHES NOMINAL
SECOND END RELATIONSHIP WITH FIRST END NOT IDENTICAL
SECOND END CONNECTION TYPE UNTHREADED INTERNAL TUBE
SECOND END STYLE DESIGNATOR H1 SOCKET
SECOND END OUTSIDE DIAMETER TUBE ACCOMMODATED 0.500 INCHES NOMINAL
THIRD END STYLE DESIGNATOR H1 SOCKET
THIRD END OUTSIDE DIAMETER TUBE ACCOMMODATED 0.625 INCHES NOMINAL
MEDIA FOR WHICH DESIGNED REFRIGERANT 22
VALVE EXPANSION CONTROL TYPE THERMOSTATIC
