Product Details | STOP DIAPHRAGM VALVE
4820-01-382-1686 A valve designed specifically so the diaphragm seals the flow stream from the valve operating mechanism. The flow is controlled by the lifting of the diaphragm from or compressing it against an integral seat. For packless diaphragm valves which utilize a diaphragm as packing and a disk to control the flow, see VALVE, Y.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: IL#9118-0367-005, IL91180367005, 406515, 40651-5, 4820-01-382-1686, 01-382-1686, 4820013821686, 013821686
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 29 OCT 1993 | 01-382-1686 | 13619 ( VALVE, DIAPHRAGM, STOP ) |
Drawings & Photos | NSN 4820-01-382-1686
Demand History | NSN 4820-01-382-1686
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-01-382-1686 | 2015-12-341 | 3 | DIBBS |
| 4820-01-382-1686 | 2015-11-319 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-382-1686
Technical Data | NSN 4820-01-382-1686
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BODY RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR FLOW CONTROL DEVICE STEEL CORROSION RESISTING SEAT STEEL CORROSION RESISTING STEM |

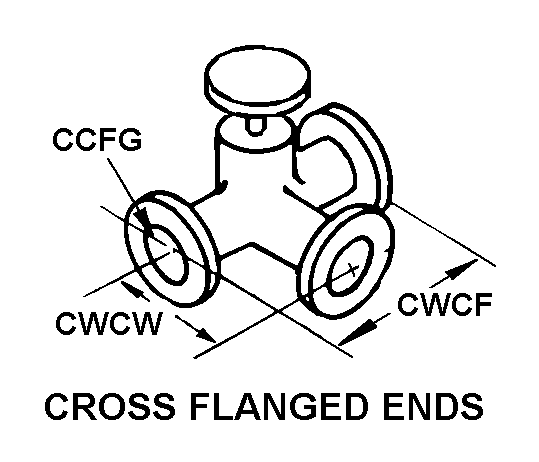

| STYLE DESIGNATOR | A11A CROSS FLANGED ENDS |
| FACE TO FACE DISTANCE | 1.937 INCHES |
| THIRD CONNECTION FACE TO CENTERLINE DISTANCE | 4.250 INCHES |
| VALVE SIZE | 1.000 INCHES |
| CONNECTION TYPE | FLANGE ALL ENDS |
| FLANGE FACE DESIGN | RAISED STRAIGHT ALL ENDS |
| BONNET TYPE | INSIDE SCREW |
| BONNET ATTACHMENT METHOD | THREADED |
Restrictions/Controls & Freight Information | NSN 4820-01-382-1686
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
