NSN 4820-01-371-1287 9980510126, 998-05101-26 , 998-0510-26
Product Details | SADDLE VALVE
4820-01-371-1287 A valve with an outlet end connection, straight thru or at an angle. The flow of liquid or gases may be controlled by the action of stem which lifts the disks perpendicularly off the center axis of its seat or by rotation of a suitable ported seat. This valve has a connection facility which is saddled over a line and bolted, may be line drilled or line self piercing.
Part Alternates: 9980510126, 998-05101-26 , 998-0510-26, 4820-01-371-1287, 01-371-1287, 4820013711287, 013711287, 998051026
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 06 FEB 1993 | 01-371-1287 | 35934 ( VALVE, SADDLE ) |
Drawings & Photos | NSN 4820-01-371-1287
Demand History | NSN 4820-01-371-1287
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 998-05101-26 | 2020-02-51 | 48 | DIBBS |
| 4820-01-371-1287 | 2018-12-339 | 10 | DIBBS |
| 4820-01-371-1287 | 2018-11-331 | 1 | DIBBS |
| 4820-01-371-1287 | 2018-10-297 | 1 | DIBBS |
| 4820-01-371-1287 | 2018-08-240 | 1 | DIBBS |
| 4820-01-371-1287 | 2017-08-214 | 2 | DIBBS |
| 4820-01-371-1287 | 2015-11-308 | 1 | DIBBS |
| 4820-01-371-1287 | 2009-10-302 | 5 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-01-371-1287
Related Products | NSN 4820-01-371-1287
Technical Data | NSN 4820-01-371-1287
| Characteristic | Specifications |
|---|---|

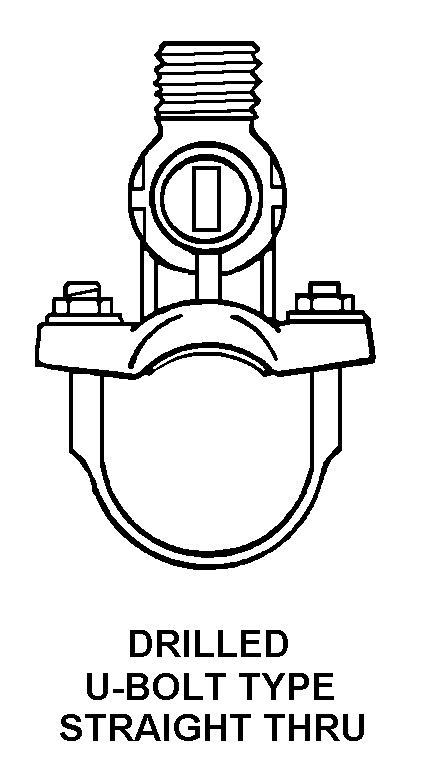

| STYLE DESIGNATOR | E1 DRILLED U-BOLT TYPE STRAIGHT THRU |
| FLOW CONTROL DEVICE | DISK |
| CONNECTION TYPE | THREADED EXTERNAL TUBE ALL ENDS |
| CONNECTION STYLE | G42 FLARED ALL ENDS |
| THREAD SERIES DESIGNATOR | UN ALL ENDS |
| NOMINAL THREAD SIZE | 0.375 INCHES ALL ENDS |
Restrictions/Controls & Freight Information | NSN 4820-01-371-1287
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-371-1287
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
