NSN 4820-01-346-3864 23508852, 2HE189, 01-346-3864
Product Details | CHECK VALVE
4820-01-346-3864 A valve permitting flow in one direction only. It does not have a stem, except when equipped with a lever and weight and has no pressure adjustment. It may be inline or cartridge (manifold) design.
Part Alternates: 23508852, 2HE189, 4820-01-346-3864, 01-346-3864, 4820013463864, 013463864
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 04 OCT 1991 | 01-346-3864 | 05487 ( VALVE, CHECK ) |
Drawings & Photos | NSN 4820-01-346-3864
Demand History | NSN 4820-01-346-3864
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 23508852 | 2020-12-352 | 144 | DIBBS |
| 2HE189 | 2020-12-352 | 144 | DIBBS |
| 23508852 | 2020-04-92 | 97 | DIBBS |
| 2HE189 | 2020-04-92 | 97 | DIBBS |
| 4820-01-346-3864 | 2009-07-198 | 17 | DIBBS |
| 4820-01-346-3864 | 2009-06-159 | 126 | DIBBS |
| 4820-01-346-3864 | 2009-05-127 | 63 | DIBBS |
| 4820-01-346-3864 | 2009-03-89 | 30 | DIBBS |
| 4820-01-346-3864 | 2009-02-55 | 17 | DIBBS |
| 4820-01-346-3864 | 2009-01-20 | 20 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-01-346-3864
Related Products | NSN 4820-01-346-3864
Technical Data | NSN 4820-01-346-3864
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING BODY |
| STYLE DESIGNATOR | A2 STRAIGHT THRU |
| FLOW CONTROL DEVICE | DISK |
| VALVE OPERATION METHOD | AUTOMATIC |
| CONNECTION TYPE | THREADED EXTERNAL PIPE ALL ENDS |

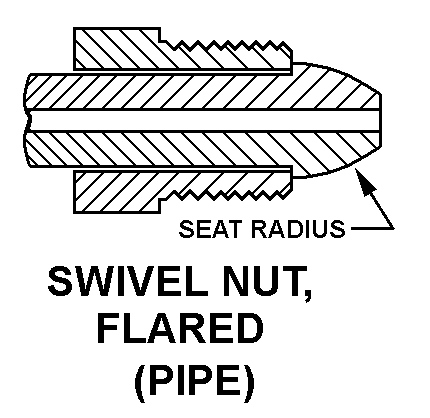

| CONNECTION STYLE | B51B SWIVEL NUT, FLARED ALL ENDS |
| THREAD SERIES DESIGNATOR | NPTF ALL ENDS |
| NOMINAL THREAD SIZE | 0.625 INCHES 1ST END 0.250 INCHES 2ND END |
| THREAD DIRECTION | RIGHT-HAND ALL ENDS |
| MOUNTING POSITION | HORIZONTAL |
| DISK LOADING METHOD | SPRING |
| END ITEM IDENTIFICATION | 2320-01-097-0260 HEMTT (HEAVY EXPANDED MOBILITY TACTICAL TRUCK) |
| (NON-CORE DATA) SEAT NOMINAL RADIUS | 0.625 INCHES |
Restrictions/Controls & Freight Information | NSN 4820-01-346-3864
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
