NSN 4820-01-335-8079 DF330617 ASSEMBLY 98, DF330617 ASSEMBLY 98L1, DF330617ASSEMBLY98
Product Details | BALL VALVE
4820-01-335-8079 A multi-ported, nonlubricated valve designed to provide straight through flow or ability to direct a number of flows or pressure through a single valve. The flow is controlled by the rotation of a ported ball within a suitable ported seat(s). The ball is usually engaged by a stem. It is normally operated in an open or closed position. Excludes VALVE, CHECK.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: DF330617 ASSEMBLY 98, DF330617 ASSEMBLY 98L1, DF330617ASSEMBLY98, DF330617ASSEMBLY98L1, 14898985, 14898985L1, 801-6404588 ASSEMBLY 98, 801-6404588 ASSEMBLY 98L1, 8016404588ASSEMBLY98, 8016404588ASSEMBLY98L1, 4820-01-335-8079, 01-335-8079, 4820013358079, 013358079
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 14 MAR 1991 | 01-335-8079 | 20962 ( VALVE, BALL ) |
Drawings & Photos | NSN 4820-01-335-8079
Demand History | NSN 4820-01-335-8079
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-01-335-8079 | 2011-09-272 | 2 | NECO |
| 4820-01-335-8079 | 2011-03-61 | 2 | NECO |
Cross Reference | NSN 4820-01-335-8079
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 14898985 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 14898985L1 | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| 801-6404588 ASSEMBLY 98 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 801-6404588 ASSEMBLY 98L1 | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| DF330617 ASSEMBLY 98 | 43689 | HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS |
| DF330617 ASSEMBLY 98L1 | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-01-335-8079
Related Products | NSN 4820-01-335-8079
Technical Data | NSN 4820-01-335-8079
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY BODY |

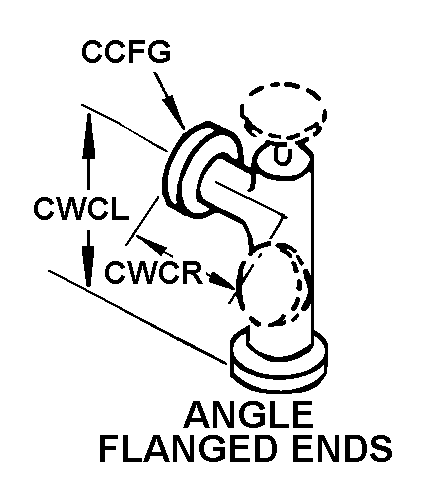

| STYLE DESIGNATOR | A39A ANGLE FLANGED ENDS |
| FIRST CONNECTION FACE TO CENTERLINE DISTANCE | 9.210 INCHES |
| VALVE SIZE | 0.500 INCHES |
| MAXIMUM OPERATING TEMP | 100.0 DEG FAHRENHEIT SINGLE RESPONSE |
| CONNECTION TYPE | FLANGE ALL ENDS |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | QUALITY CONTROL IAW NAVSHIPS 0948-045-7010 MATERIAL IDENTIFICATION AND CONTROL INSTRUCTION FOR LEVEL 1 ITEMS |
| CRITICALITY CODE JUSTIFICATION | ZZZY |
| III END ITEM IDENTIFICATION | NONPOWERED VALVES |
| MANUFACTURERS CODE | 53711 |
| DESIGN CONTROL REFERENCE | 801-6404588 ASSEMBLY 98 |
Restrictions/Controls & Freight Information | NSN 4820-01-335-8079
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | S | The item is a non-aviation Critical Safety Item (CSI) whose failure will result in serious damage to equipment or serious injury or death to personnel. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-335-8079
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7H | Depot level reparable shipboard and base equipment, assemblies, components and repair parts related to Naval Sea Systems Command equipment Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | L1 | An items that supports either a SUBSAFE or Level 1 system that has undergone the extreme material control and quality assurance techniques that provide objective exidence of its acceptance for its appropriate application. Each item has certification papers (or special markings that provide traceability to the certification) that pedigree its material and physical properties, provide traceability, to manufacturer, contract list and lot, and document the quality assurance system and test requirements applied to the item. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
