NSN 4820-01-243-0038 SERIES 8A 3/4IN, SERIES8A34IN, 01-243-0038
Product Details | VACUUM BREAKING VALVE
4820-01-243-0038 An item designed to automatically relieve vacuum, by the intake of air, when the internal pressure falls below atmospheric pressure. See also VALVE, VACUUM REGULATING.
Part Alternates: SERIES 8A 3/4IN, SERIES8A34IN, 4820-01-243-0038, 01-243-0038, 4820012430038, 012430038
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 20 OCT 1986 | 01-243-0038 | 08101 ( VALVE, VACUUM BREAKING ) |
Drawings & Photos | NSN 4820-01-243-0038
Cross Reference | NSN 4820-01-243-0038
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SERIES 8A 3/4IN | 79227 | WATTS REGULATOR CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-01-243-0038
Related Products | NSN 4820-01-243-0038
Technical Data | NSN 4820-01-243-0038
| Characteristic | Specifications |
|---|---|
| BODY STYLE | B1 SINGLE CONNECTION, STRAIGHT FLOW |
| BODY MATERIAL | BRASS |
| FLOW CONTROL DEVICE | DISK, BOTTOM GUIDED |
| FLOW CONTROL DEVICE MATERIAL | RUBBER |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED INTERNAL HOSE |

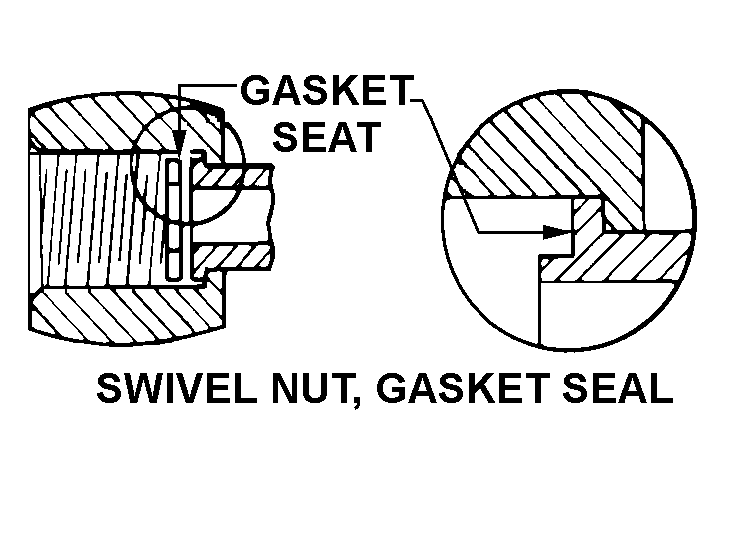

| FIRST END STYLE DESIGNATOR | G4 SWIVEL NUT, GASKET SEAL |
| FIRST END INSIDE DIAMETER HOSE ACCOMMODATED | 0.500 INCHES NOMINAL |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| TEMP ADJUSTABILITY | NOT ADJUSTABLE |
| MEDIA FOR WHICH DESIGNED | ANY ACCEPTABLE |
| TEMP RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 4820-01-243-0038
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-243-0038
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
