NSN 4820-01-226-7123 1581480, 453200, 453200-144
Product Details | FLUID PRESSURE REGULATING VALVE
4820-01-226-7123 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 1581480, 453200, 453200-144, 4820-01-226-7123, 01-226-7123, 4820012267123, 012267123, 453200144
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 21 FEB 1986 | 01-226-7123 | 27565 ( VALVE, REGULATING, FLUID PRESSURE ) |

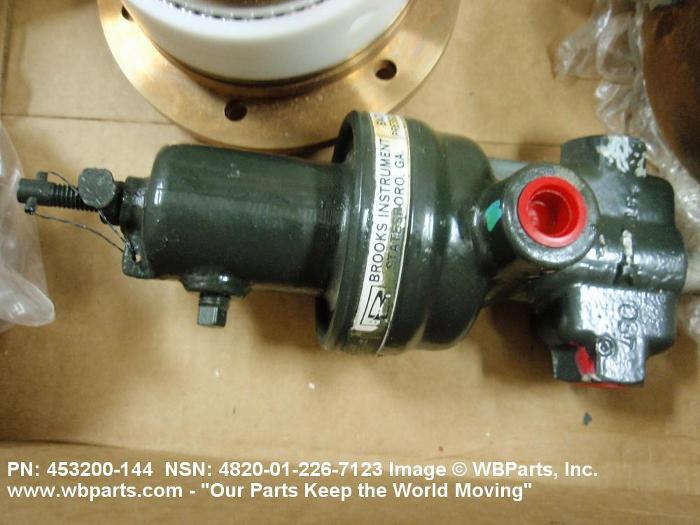

Drawings & Photos | NSN 4820-01-226-7123
Demand History | NSN 4820-01-226-7123
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-01-226-7123 | 2019-08-227 | 2 | Taiwan |
| 1581480 | 2019-07-182 | 3 | DIBBS |
| 1581480 | 2019-06-169 | 3 | DIBBS |
| 4820-01-226-7123 | 2019-05-149 | 1 | Taiwan |
| 1581480 | 2014-04-99 | 1 | Kuwait |
| 4820-01-226-7123 | 2013-12-336 | 1 | Taiwan |
| 4820-01-226-7123 | 2013-06-170 | 8 | DIBBS |
| 4820-01-226-7123 | 2011-05-126 | 3 | US |
| 4820-01-226-7123 | 2011-04-109 | 3 | Turkey |
| 4820-01-226-7123 | 2011-04-104 | 3 | Turkey |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-01-226-7123
Related Products | NSN 4820-01-226-7123
Technical Data | NSN 4820-01-226-7123
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | ALUMINUM |
| OUTLET PRESSURE RANGE | 70.0 TO 180.0 POUNDS PER SQUARE INCH |
| FILTER | NOT INCLUDED |
| SPECIAL FEATURES | ONE PRESSURE SENSING PORT |
| FLOW CONTROL DEVICE | POPPET |
| END CONNECTION QUANTITY | 3 |
| FIRST END CONNECTION TYPE | THREADED INTERNAL PIPE |
| FIRST END STYLE DESIGNATOR | PLAIN |
| FIRST END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 3/8-18 NPT |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| THIRD END RELATIONSHIP WITH PRECEDING ENDS | IDENTICAL WITH SECOND END |
| BODY STYLE | TEE W/OFFSET |
| OFFSET DISTANCE | 1.875 INCHES NOMINAL |
| REGULATION TYPE | AUTOMATIC SINGLE STAGE |
| VALVE LOADING METHOD | SPRING |
Restrictions/Controls & Freight Information | NSN 4820-01-226-7123
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-226-7123
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | P | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
