NSN 4820-01-201-8142 3/4CMBT12001-A3, 3-4 CMB 120001-A3, 3-4 CMB 12001-A
Product Details | TEMPERATURE REGULATING VALVE
4820-01-201-8142 A self-acting valve designed for controlling, by means of a thermostatic element, the flow of liquids or gases therethrough. The thermostatic element is located in liquid or gas whose temperature is controlled by the heat of the liquid or gas flowing through the valve. See also VALVE, RELIEF, PRESSURE AND TEMPERATURE.
Part Alternates: 3/4CMBT12001-A3, 3-4 CMB 120001-A3, 3-4 CMB 12001-A, 34CMB120001A3, 34CMB12001A, 34CMBT12001A3, 9857, 4820-01-201-8142, 01-201-8142, 4820012018142, 012018142
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 22 FEB 1985 | 01-201-8142 | 05492 ( VALVE, REGULATING, TEMPERATURE ) |

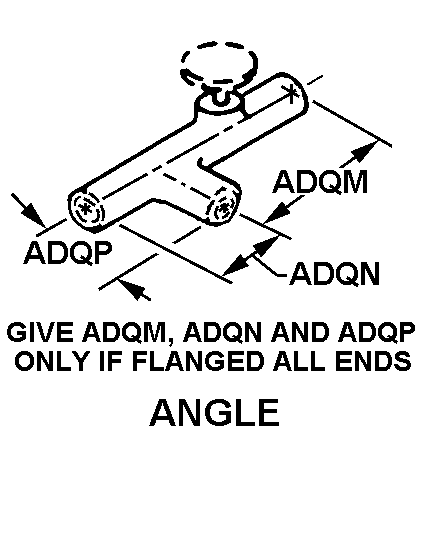

Drawings & Photos | NSN 4820-01-201-8142
Cross Reference | NSN 4820-01-201-8142
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3-4 CMB 120001-A3 | 94607 | AMOT CONTROLS CORPORATION DBA ROPER INDUSTRIES |
| 3-4 CMB 12001-A | 94607 | AMOT CONTROLS CORPORATION DBA ROPER INDUSTRIES |
| 3/4CMBT12001-A3 | 94607 | AMOT CONTROLS CORPORATION DBA ROPER INDUSTRIES |
| 9857 | 94607 | AMOT CONTROLS CORPORATION DBA ROPER INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-201-8142
Technical Data | NSN 4820-01-201-8142
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | BRONZE |
| FLOW CONTROL DEVICE | POPPET |
| END CONNECTION QUANTITY | 3 |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| THIRD END RELATIONSHIP WITH PRECEDING ENDS | IDENTICAL WITH FIRST END |
| BODY STYLE | A23 ANGLE |
| THERMOSTATIC ELEMENT | INTEGRAL W/VALVE |
| TEMP ADJUSTABILITY | NOT ADJUSTABLE |
| TEMP RATING | 120.0 DEG FAHRENHEIT NOMINAL |
| SPECIAL FEATURES | VALVE SIZE 0.750 |
Restrictions/Controls & Freight Information | NSN 4820-01-201-8142
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-201-8142
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
