NSN 4820-01-185-4378 00943710, 3217-7081-5, 01-185-4378
Product Details | PRESSURE REGULATING VALVE PARTS KIT
4820-01-185-4378 A parts kit used for a VALVE, PRESSURE REGULATING. It may contain such items as a diaphragm, diaphragm spring, valve spring, valve seat, valve seat gasket, needle valve, relief ball, relief spring, dome gasket, and the like.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 00943710, 3217-7081-5, 4820-01-185-4378, 01-185-4378, 4820011854378, 321770815, 011854378
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 29 JUL 1984 | 01-185-4378 | 14557 ( PARTS KIT, PRESSURE REGULATING VALVE ) |
Drawings & Photos | NSN 4820-01-185-4378
Demand History | NSN 4820-01-185-4378
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3217-7081-5 | 2024-08-235 | 123 | DIBBS |
| 3217-7081-5 | 2024-08-226 | 123 | DIBBS |
| 3217-7081-5 | 2023-04-96 | 163 | DIBBS |
| 3217-7081-5 | 2022-03-76 | 149 | DIBBS |
| 3217-7081-5 | 2019-11-317 | 160 | DIBBS |
| 3217-7081-5 | 2019-06-153 | 117 | DIBBS |
| 4820-01-185-4378 | 2018-02-32 | 130 | DIBBS |
| 4820-01-185-4378 | 2015-10-278 | 160 | DIBBS |
| 4820-01-185-4378 | 2015-05-130 | 98 | DIBBS |
| 4820-01-185-4378 | 2014-09-261 | 89 | DIBBS |
| 4820-01-185-4378 | 2014-06-161 | 61 | DIBBS |
| 4820-01-185-4378 | 2014-02-58 | 10 | Canada |
| 4820-01-185-4378 | 2013-03-87 | 81 | DIBBS |
| 4820-01-185-4378 | 2012-12-338 | 53 | DIBBS |
| 4820-01-185-4378 | 2012-08-237 | 41 | DIBBS |
| 4820-01-185-4378 | 2012-07-206 | 54 | DIBBS |
| 4820-01-185-4378 | 2012-03-90 | 42 | DIBBS |
| 4820-01-185-4378 | 2011-08-231 | 36 | DIBBS |
| 4820-01-185-4378 | 2011-07-190 | 35 | DIBBS |
| 4820-01-185-4378 | 2010-11-312 | 39 | DIBBS |
| 4820-01-185-4378 | 2010-09-266 | 33 | DIBBS |
| 4820-01-185-4378 | 2010-07-211 | 40 | DIBBS |
| 4820-01-185-4378 | 2009-11-322 | 36 | DIBBS |
| 4820-01-185-4378 | 2009-04-105 | 24 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-01-185-4378
Related Products | NSN 4820-01-185-4378
Technical Data | NSN 4820-01-185-4378
| Characteristic | Specifications |
|---|---|
| COMPONENT QUANTITY | 3 |

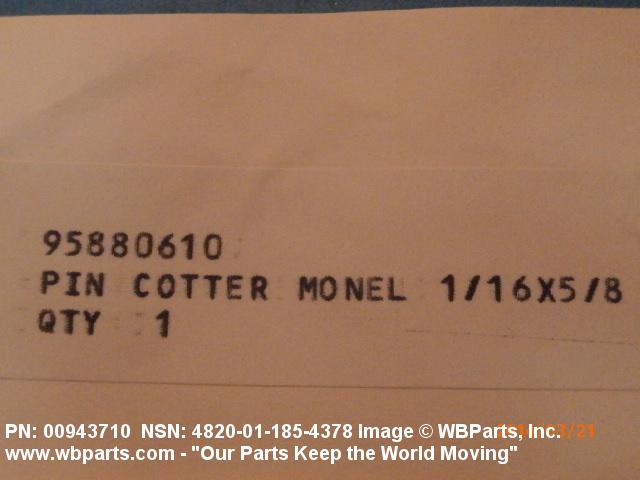

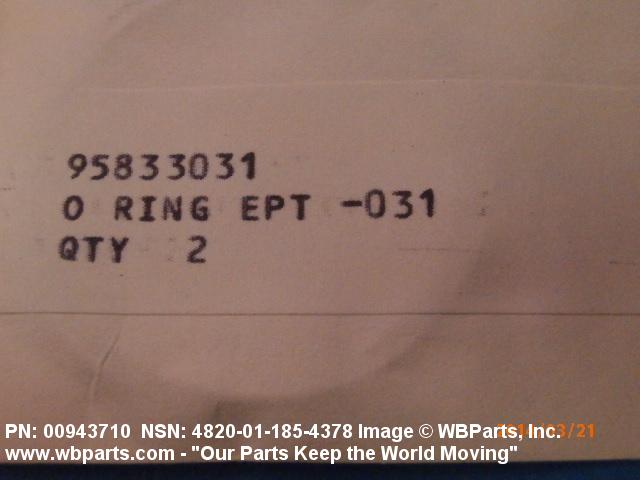

| NONSUPPLY ITEMS AND QUANTITIES | 11939 00354920 DIAPHRAGM 1; 11939 95833031 O-RING 1; 11939 95880610 COTTER PIN 1 |
Restrictions/Controls & Freight Information | NSN 4820-01-185-4378
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | Z | Shipment is not a consolidation, but does exceed 72 inches in one or more dimensions. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-185-4378
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 KT : Kit |
