NSN 4820-01-151-3750 GNS11IN, 17011N, 17011N1IN
Product Details | FLUID PRESSURE REGULATING VALVE
4820-01-151-3750 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: GNS11IN, 17011N, 17011N1IN, 4820-01-151-3750, 01-151-3750, 4820011513750, 011513750
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 16 APR 1983 | 01-151-3750 | 27565 ( VALVE, REGULATING, FLUID PRESSURE ) |
Drawings & Photos | NSN 4820-01-151-3750
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-151-3750
Technical Data | NSN 4820-01-151-3750
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | STEEL, MIL-S-15083, GRADE B |
| SEAT MATERIAL | STEEL, CORROSION RESISTING |
| STEM MATERIAL | STEEL, CORROSION RESISTING |
| FLOW CONTROL DEVICE | STEM AND INTEGRAL DISK |
| FLOW CONTROL DEVICE MATERIAL | STEEL, CORROSION RESISTING |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | RAISED FACE FLANGE |
| FIRST END STYLE DESIGNATOR | G5 RAISED |
| FIRST END RAISED FACE HEIGHT | 0.250 INCHES NOMINAL |
| FIRST END RAISED FACE DIAMETER | 2.000 INCHES NOMINAL |

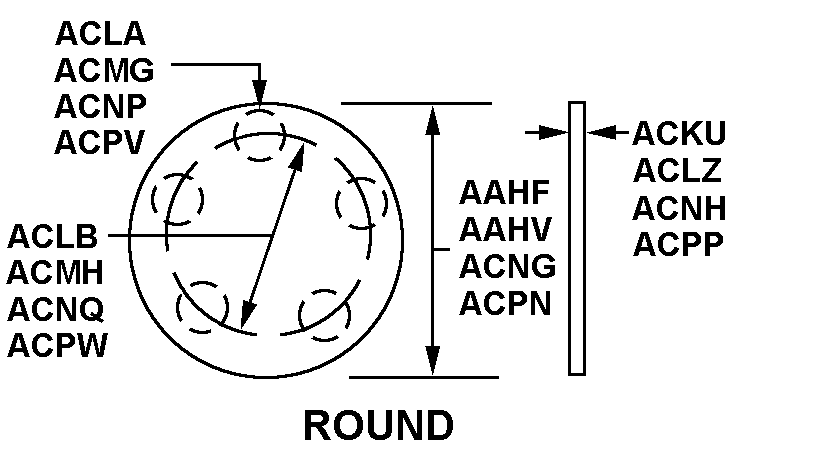

| FIRST END FLANGE SHAPE STYLE | 3 ROUND |
| FIRST END BOLT HOLE QUANTITY | 4 |
| FIRST END FLANGE OUTSIDE DIAMETER | 4.875 INCHES NOMINAL |
| FIRST END FLANGE THICKNESS | 0.688 INCHES NOMINAL |
| FIRST END BOLT HOLE DIAMETER | 0.750 INCHES NOMINAL |
| FIRST END BOLT CIRCLE DIAMETER | 3.500 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| BODY STYLE | A1 STRAIGHT THRU |
| FACE TO FACE DISTANCE | 8.250 INCHES NOMINAL |
| MEDIA FOR WHICH DESIGNED | NOT SPECIFIED |
| REGULATION TYPE | AUTOMATIC SINGLE STAGE |
| VALVE LOADING METHOD | SPRING |
| TEMP RATING | 500.0 DEG FAHRENHEIT MAXIMUM |
| MAXIMUM INLET PRESSURE RATING | 600.0 POUNDS PER SQUARE INCH |
| OUTLET PRESSURE RANGE | 2.0 TO 35.0 POUNDS PER SQUARE INCH |
| OUTLET PRESSURE ACCURACY RATING | NOT RATED |
| FILTER | NOT INCLUDED |
| SPECIAL FEATURES | FURNISHED W/WELDED BENT NIPPLE PC.NO.39,ORIFICE PC.NO.41,AND FLANGE PC.NO.40 |
Restrictions/Controls & Freight Information | NSN 4820-01-151-3750
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-151-3750
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9C | Navy-owned stocks of defense construction material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9C | Defense Supply Center Columbus Columbus, OH 43215 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
