NSN 4820-01-146-8833 971977015888, 971977-015-888, 97197715888
Product Details | PISTON RING
4820-01-146-8833 A circular, single or multipiece item, metallic or nonmetallic in composition, designed to be fitted in a circumferential groove in a piston and to spring outward against the cylinder wall to function as a seal or wiper. It is supplied in various cross-sectional shapes and is cut through at one point to allow for installation in the piston ring groove. It may include an expander. Excludes PACKING, PREFORMED; RETAINER, OIL SEAL; RETAINER, PACKING; RING, RETAINING; RING WIPER; and SEAL RING, METAL.20628050063Gasoline Reciprocating Engines, Except Aircraft; and Components28100068Gasoline Reciprocating Engines, Aircraft Prime Mover; and Components28150029Diesel Engines and Components28250029Steam Turbines and Components30400042Miscellaneous Power Transmission Equipment43100028Compressors and Vacuum Pumps
Part Alternates: 971977015888, 971977-015-888, 97197715888, 971977-15-888, 4820-01-146-8833, 01-146-8833, 4820011468833, 011468833
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 08 FEB 1983 | 01-146-8833 | 11459 ( RING, PISTON ) |
Drawings & Photos | NSN 4820-01-146-8833
Demand History | NSN 4820-01-146-8833
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-01-146-8833 | 2017-11-317 | 7 | DIBBS |
| 4820-01-146-8833 | 2017-10-303 | 7 | DIBBS |
| 4820-01-146-8833 | 2017-02-52 | 2 | DIBBS |
| 4820-01-146-8833 | 2015-04-99 | 3 | DIBBS |
| 4820-01-146-8833 | 2014-01-04 | 10 | DIBBS |
| 4820-01-146-8833 | 2013-12-342 | 10 | DIBBS |
| 4820-01-146-8833 | 2013-06-174 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-146-8833
Technical Data | NSN 4820-01-146-8833
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL EXPANDER PLASTIC OUTSIDE PERIPHERY |

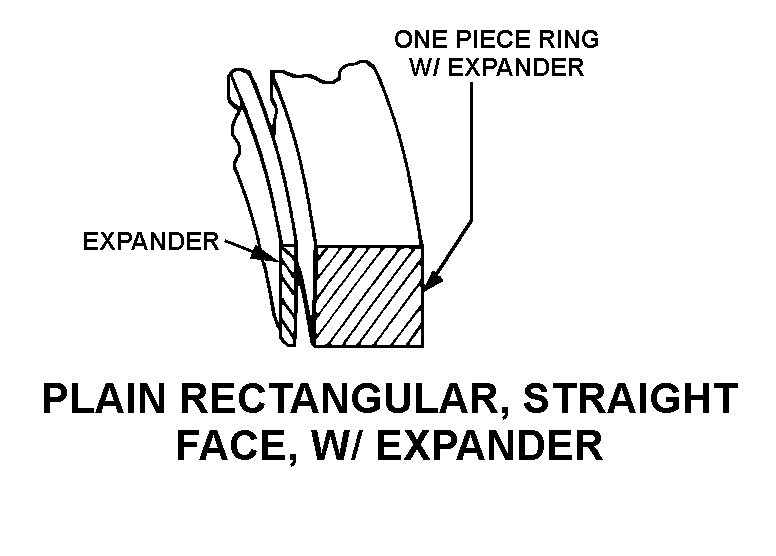

| CROSS-SECTIONAL SHAPE STYLE | A95 PLAIN RECTANGULAR, STRAIGHT FACE, W/EXPANDER |
| JOINT STYLE | 3 STEP JOINT |
| RING STYLE | 1 CONCENTRIC |
| RADIAL WALL THICKNESS | 0.1200 INCHES NOMINAL |
| OVERALL WIDTH | 0.1220 INCHES NOMINAL |
| STANDARD BORE DIAMETER | 1.688 INCHES |
| FEATURES PROVIDED | NONSCORING |
Restrictions/Controls & Freight Information | NSN 4820-01-146-8833
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 126700 | PISTON RINGS,IRON |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-146-8833
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
