NSN 4820-01-143-8044 8034384536, 803-4384536, 803438453645B45
Product Details | NEEDLE VALVE STEM
4820-01-143-8044 A metallic, needle shaped item having a one-piece stem threaded for securing to, or positioning into, a mating part. The point may be of various angles or shapes, such as conical or tapered, to correspond with the mating seat. The item is designed for the fine control flow or restriction of liquids or gases in a given system. It may be provided with a knurled head for rotation by thumbs and fingers, or be driven with either a wrench, handle, or inserted driver. Excludes VALVE, FUEL-AIR MIXTURE CONTROL, AUTOMATIC.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 8034384536, 803-4384536, 803438453645B45, 803-4384536-45B-45, 4820-01-143-8044, 01-143-8044, 4820011438044, 011438044
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 09 DEC 1982 | 01-143-8044 | 28686 ( STEM, NEEDLE VALVE ) |
Drawings & Photos | NSN 4820-01-143-8044
Demand History | NSN 4820-01-143-8044
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 8034384536 | 2024-09-265 | 5 | KR |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-143-8044
Technical Data | NSN 4820-01-143-8044
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY |
| VALVE SIZE FOR WHICH DESIGNED | 0.750 INCHES |
| LARGEST OUTSIDE DIAMETER | 0.688 INCHES NOMINAL |
| OVERALL LENGTH | 5.938 INCHES NOMINAL |
| STEM ACTUATING END TYPE | THREADED EXTERNALLY |

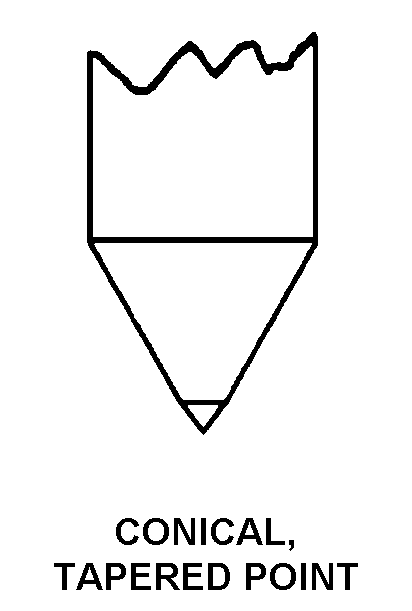

| DISK STYLE | 5 CONICAL, TAPERED POINT |
| SPECIAL FEATURES | 0.625-18 UNF-1A THD |
Restrictions/Controls & Freight Information | NSN 4820-01-143-8044
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-143-8044
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
