NSN 4820-01-142-9067 10124640 , 58670, 01-142-9067
Product Details | SPECIAL SHAPED VALVE DIAPHRAGM
4820-01-142-9067 An item constructed of one or more layers of thin flexible material, either laminated or separated, designed to form a tight seal between the chambers of a valve, and to transmit pressure inducted motion to a valve disk either directly or through a mechanical linkage. The surface of the item must be formed or molded to have a beaded or rolled edge, ribs or any other raised surfaces. The item may contain bolt holes and/or center holes. Excludes DIAPHRA GM, VALVE, FLAT and GASKET.20529100042Engine Fuel System Components, Nonaircraft29150064Engine Fuel System Components, Aircraft and Missile Prime Movers42200038Marine Lifesaving and Diving Equipment48100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 10124640 , 58670, 4820-01-142-9067, 01-142-9067, 4820011429067, 011429067
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 22 NOV 1982 | 01-142-9067 | 40088 ( DIAPHRAGM, ACTUATOR VALVE, SPECIAL SHAPED ) |

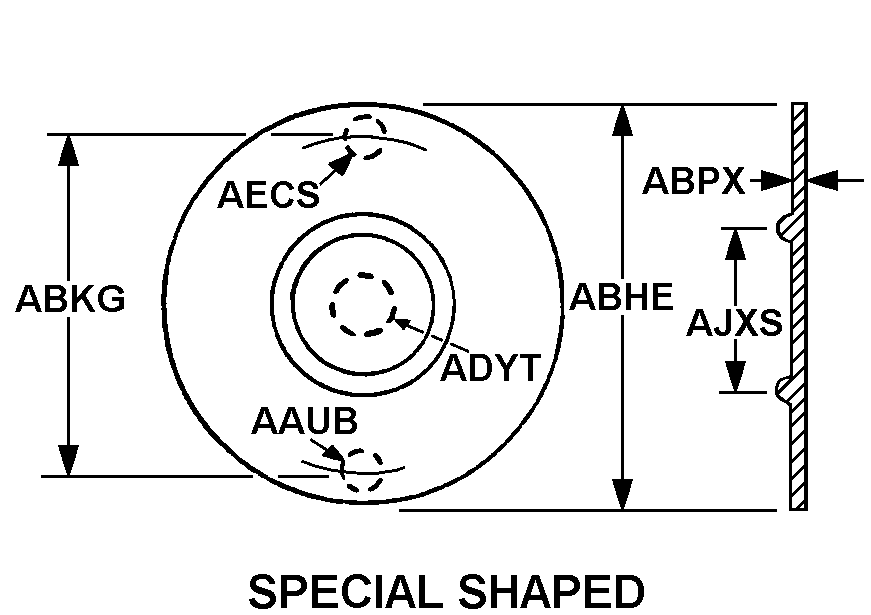

Drawings & Photos | NSN 4820-01-142-9067
Demand History | NSN 4820-01-142-9067
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-01-142-9067 | 2017-09-257 | 4 | DIBBS |
| 4820-01-142-9067 | 2017-03-78 | 4 | DIBBS |
Cross Reference | NSN 4820-01-142-9067
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 58670 | 01170 | BELLOFRAM CORPORATION DBA MARSH-BELLOFRAM |
| 58670 | 25783 | DIAPHRAGM INDUSTRIES INC |
| 58670 | 45153 | HAMILTON SUNDSTRAND CORPORATION DBA HAMILTON SUNDSTRAND POWER SYTEMS |
| 58670 | 79318 | MEGGITT (NORTH HOLLYWOOD), INC. |
| 58670 | 94592 | FLUID CONDITIONING PRODUCTS, INC. |
| 58670 | 99167 | HAMILTON SUNDSTRAND CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-142-9067
Technical Data | NSN 4820-01-142-9067
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 51 SPECIAL SHAPED |
| OUTSIDE DIAMETER | 1.028 INCHES MINIMUM AND 1.058 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.011 INCHES MINIMUM AND 0.017 INCHES MAXIMUM |
| MANUFACTURERS CODE | 79318 |
| MFR SOURCE CONTROLLING REFERENCE | 58670 |
Restrictions/Controls & Freight Information | NSN 4820-01-142-9067
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 156600 | PLASTIC/RUBBER ARTICLE VIZ: |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 772 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-142-9067
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
